Yedek Parça Seçenekleri
| Görsel | Part Name | Drawing No | Item No | Fiyat | Stok | Adet | Aksiyon |
|---|---|---|---|---|---|---|---|
|

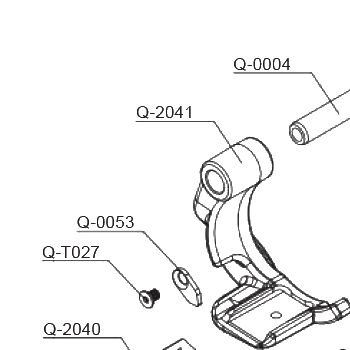

Base rocker pin | Q-0004 | 2011000203 | 0,00 ₺ | Var | ||
|
|
Base rocker | Q-2041 | 2010100168 | 0,00 ₺ | Var | ||
|
|
13mm right front strap guide block | Q-0053 | 2011000187 | 0,00 ₺ | Var | ||
|
|

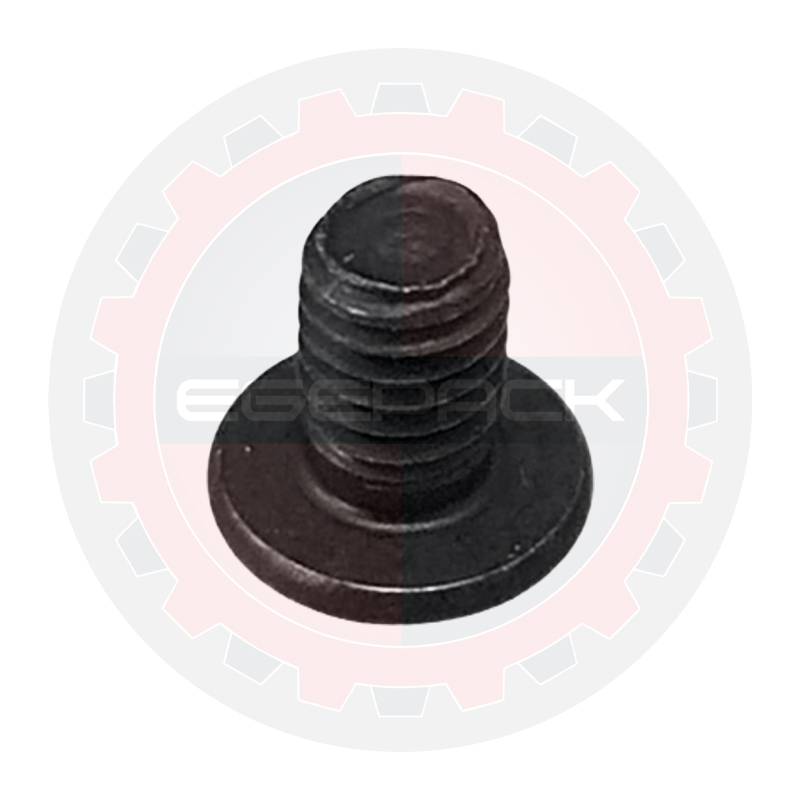

Countersunk screw M4 × 6 | Q-T027 | 1030126746 | 0,00 ₺ | Var | ||
|
Tighten the lower gear plate | Q-2040 | 2011000237 | 0,00 ₺ | Var | ||
|
Screw M4 × 6 | T021 | 1030126739 | 0,00 ₺ | Var | ||
|
|

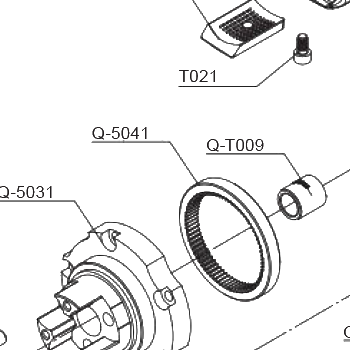

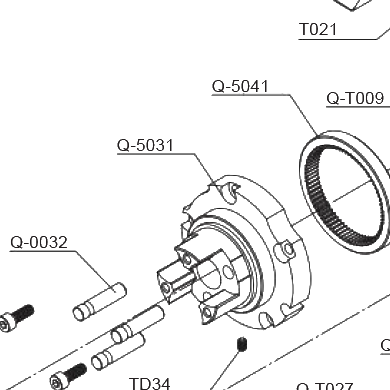

Internal gear | Q-5041 | 2015000117 | 0,00 ₺ | Var | ||
|
|
Needle roller bearing HK1015 | Q-T009 | 1021403742 | 0,00 ₺ | Var | ||
|
|

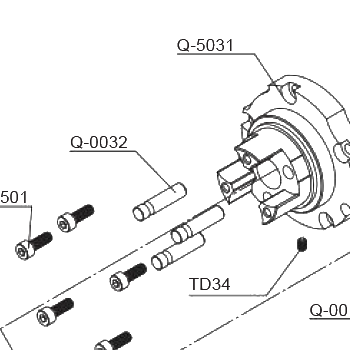

Cam | Q-5031 | 2015000118 | 0,00 ₺ | Var | ||
|
|
Pin 1 | Q-0032 | 2011000202 | 0,00 ₺ | Var | ||
|
|

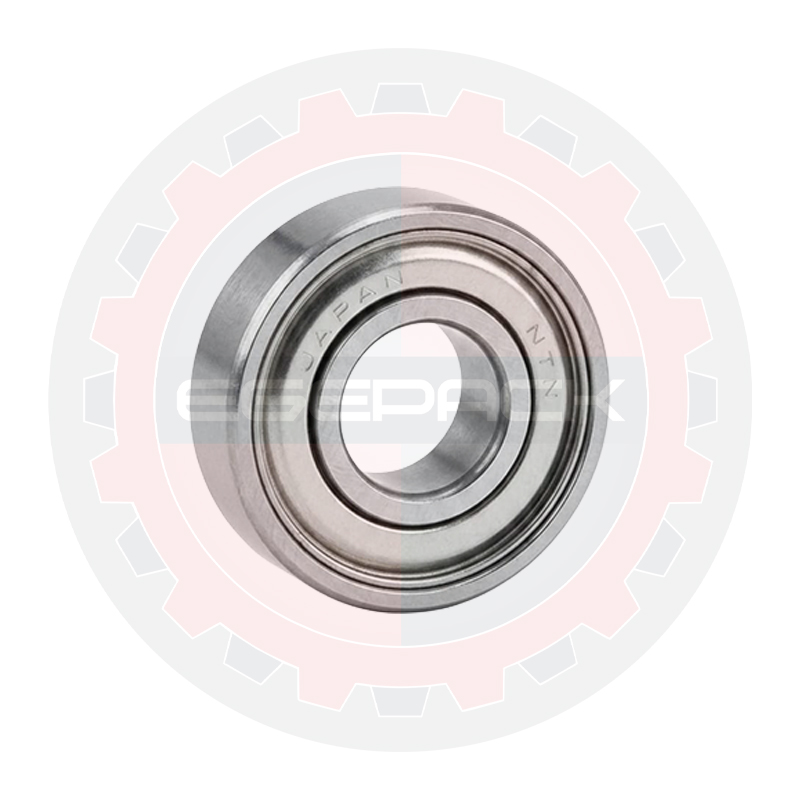

Bearing NSK608-ZZ (8-22-7) | Q-T501 | 1021400712 | 0,00 ₺ | Var | ||
|
|
Set screw M3 × 5 | TD34 | 1030116838 | 0,00 ₺ | Var | ||
|

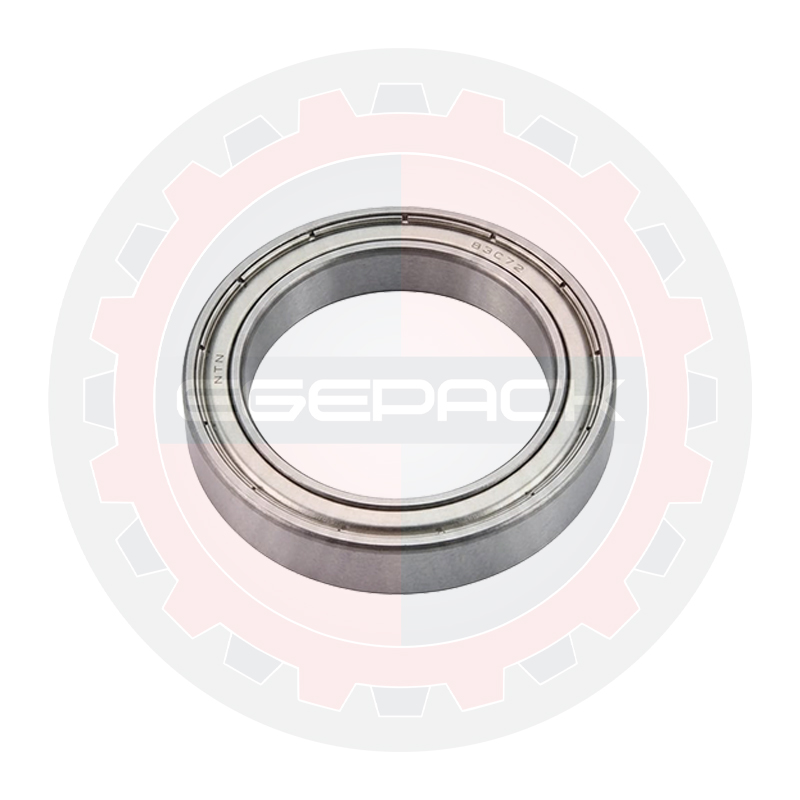

Bearing 61807-2Z | Q-T007 | 1021402954 | 0,00 ₺ | Var | ||
|
Tension wheel | Q-0010 | 2010096290 | 0,00 ₺ | Var | ||
|
Bearing 61807-2Z | Q-T007 | 1021402954 | 0,00 ₺ | Var | ||
|
|
Planet gear of tension gear | Q-0011 | 2010096291 | 0,00 ₺ | Var | ||
|
|
Countersunk screw M4 × 6 | Q-T027 | 1030126746 | 0,00 ₺ | Var | ||
|
|

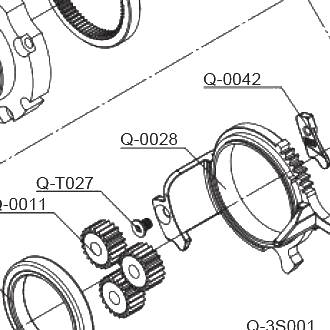

Cam disc | Q-0028 | 2010100175 | 0,00 ₺ | Var | ||
|
|
13mm left front strap guide block | Q-0042 | 2010900065 | 0,00 ₺ | Var | ||
|
Planet carrier 2 | Q-0007 | 2010096289 | 0,00 ₺ | Var | ||
|
|
Planet carrier 2 Pin | Q-0005 | 2010096287 | 0,00 ₺ | Var | ||
|
|
Planet carrier 2 gear | Q-0006 | 2010096288 | 0,00 ₺ | Var | ||
|
|
Screw M4 × 12 | T501 | 1030128224 | 0,00 ₺ | Var | ||
|
|
Double gear | Q-5010 | 2015000113 | 0,00 ₺ | Var | ||
|
|
Bearing NSK619-6Z (6-15-5) | T502 | 1021401563 | 0,00 ₺ | Var | ||
|
|

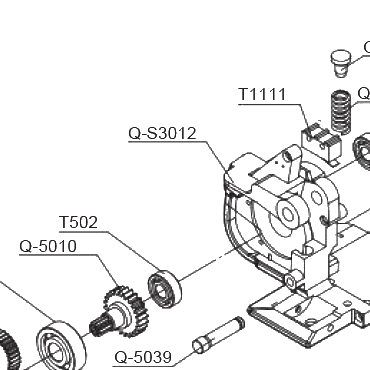

Body seat | Q-S3012 | 2010100264 | 0,00 ₺ | Var | ||
|
Microswitch D2F-01FL | T1111 | 1020608827 | 0,00 ₺ | Var | ||
|
|
Handle return spring | Q-5035 | 1030128219 | 0,00 ₺ | Var | ||
|
Reset the thimble shaft | Q-2061 | 2015000107 | 0,00 ₺ | Var | ||
|
|
Set screw M4 × 20 | Q-T014 | 1030126733 | 0,00 ₺ | Var | ||
|
|
Nut M4 | Q-A007 | 1030119859 | 0,00 ₺ | Var | ||
|
|
NSK 686ZZ (6×13×5) | Q-T224 | 1021400502 | 0,00 ₺ | Var | ||
|
|
Screw M4 × 10 | Q-T212 | 1030128551 | 0,00 ₺ | Var | ||
|
Tighten the motor mounting plate | Q-3S023 | 2015000512 | 0,00 ₺ | Var | ||
|
Equal height bolt M5- Φ 6-8 | Q-T215A | 1030131499 | 0,00 ₺ | Var | ||
|
Tension motor | Q-5034 | 2015000150 | 0,00 ₺ | Var | ||
|
|
Screw M5 × 16 | A72 | 1030102202 | 0,00 ₺ | Var | ||
|
|
Shaft ring Φ10 | T631 | 1030126918 | 0,00 ₺ | Var | ||
|
Handle pin | Q-0026 | 2011000198 | 0,00 ₺ | Var | ||
|
Block bar | Q-5017 | 2010900076 | 0,00 ₺ | Var | ||
|
NSK 6800ZZ (10-19-5) | Q-T502 | 1021401167 | 0,00 ₺ | Var | ||
|
|
Gear 1 | Q-5009 | 2015000112 | 0,00 ₺ | Var | ||
|
Tighten the motor gear | Q-5033 | 2015000114 | 0,00 ₺ | Var | ||
|
|
Set screw M3 × 3 | Q-T504 | 1030128225 | 0,00 ₺ | Var | ||
|
|
One way needle roller bearing HF0810 | Q-T602 | 1021403842 | 0,00 ₺ | Var | ||
|
|
Bearing NSK619-6Z (6-15-5) | T502 | 1021401563 | 0,00 ₺ | Var | ||
|
Reset lever | Q-5016 | 2010900075 | 0,00 ₺ | Var | ||
|
Split ring Φ4 | Q-A003 | 1030102658 | 0,00 ₺ | Var | ||
|
|
Pin 1 | Q-5039 | 2015000172 | 0,00 ₺ | Var | ||
|
|
Set screw M3 × 3 | Q-T504 | 1030128225 | 0,00 ₺ | Var | ||
|
Split ring Φ4 | Q-A003 | 1030102658 | 0,00 ₺ | Var | ||
|
Screw M4 × 6 | T021 | 1030126739 | 0,00 ₺ | Var | ||
|
|

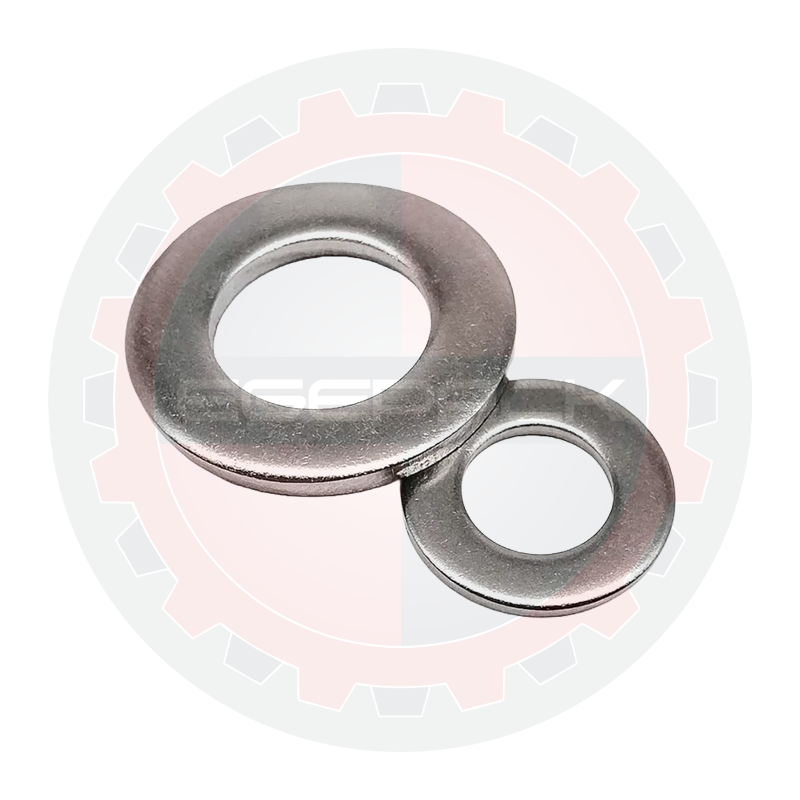

Stainless steel flat gasket M6 × 12 × 0.2 | Q-T508 | 1030128553 | 0,00 ₺ | Var | ||
|
|
Guide pin | Q-5027 | 2015000155 | 0,00 ₺ | Var | ||
|
Sector gear | Q-0027 | 2010100174 | 0,00 ₺ | Var | ||
|
|
Shaft ring Φ10 | T631 | 1030126918 | 0,00 ₺ | Var | ||
|
|
Screw M4 × 12 | Q-T501 | 1030128224 | 0,00 ₺ | Var | ||
|
|
13mm back strap guide block | Q-0041 | 2010900064 | 0,00 ₺ | Var | ||
|
|
Screw M4 × 20 | Q-T509 | 1030128230 | 0,00 ₺ | Var | ||
|

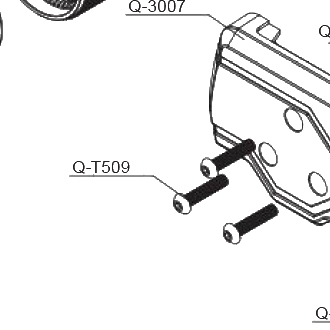

Side shield | Q-3007 | 1030128981 | 0,00 ₺ | Var | ||
|
Welding button spring | Q-0125 | 1030126726 | 0,00 ₺ | Var | ||
|
Left housing | Q-3S001 | 1030130270 | 0,00 ₺ | Var | ||
|
Screw M4 × 10 | T1079A | 1030130818 | 0,00 ₺ | Var | ||
|
|
Countersunk screw M3 × 8 | T1091A | 1030130820 | 0,00 ₺ | Var | ||
|
|

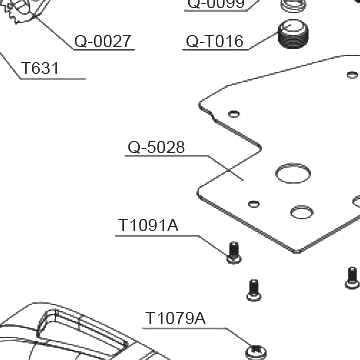

Base guard | Q-5028 | 2015000121 | 0,00 ₺ | Var | ||
|
Set screw M12 × 8 | Q-T016 | 1030126735 | 0,00 ₺ | Var | ||
|
Thimble shaft spring | Q-0099 | 1030126723 | 0,00 ₺ | Var | ||
|
|
Belt guide | Q-5020 | 2010900077 | 0,00 ₺ | Var | ||
|
|
13mm right back strap guide block | Q-0052 | 2011000186 | 0,00 ₺ | Var | ||
|
Limit thimble shaft | Q-0031 | 2011000201 | 0,00 ₺ | Var | ||
|
Welding lower teeth plate | Q-A001 | 2010013130 | 0,00 ₺ | Var | ||
|
Welding lower teeth plate fixing screw | Q-A002 | 2010013147 | 0,00 ₺ | Var | ||
|
Stainless steel flat gasket M6 × 9 × 0.2 | Q-T611 | 1030130369 | 0,00 ₺ | Var | ||
|
|
Bearing NSK627-ZZ (7-22-7) | T504 | 1021401565 | 0,00 ₺ | Var | ||
|
|
Return spring of welding fixture | Q-0098 | 1030126722 | 0,00 ₺ | Var | ||
|
Set screw M8 × 6 | Q-T015 | 1030126734 | 0,00 ₺ | Var | ||
|
|
Screw M4 × 25 | Q-T026 | 1030126745 | 0,00 ₺ | Var | ||
|
|
Snap ring for hole Φ15 | Q-T608 | 1030128522 | 0,00 ₺ | Var | ||
|

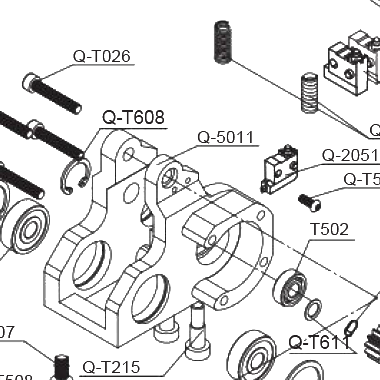

Welding mount | Q-5011 | 2010100240 | 0,00 ₺ | Var | ||
|
Fusion spring fixing sleeve-1 | Q-0019 | 2010100170 | 0,00 ₺ | Var | ||
|
Welding spring fixing pin | Q-0040 | 2011000204 | 0,00 ₺ | Var | ||
|
|
Welding limit spring | Q-0077 | 1030126719 | 0,00 ₺ | Var | ||
|
Welding spring fixing sleeve B | Q-0020A | 2015000503 | 0,00 ₺ | Var | ||
|
|
Welding spring fixing pin | Q-5019 | 2018000153 | 0,00 ₺ | Var | ||
|
Split ring Φ4 | Q-A003 | 1030102658 | 0,00 ₺ | Var | ||
|
|
Stainless steel flat gasket M6 × 12 × 0.2 | Q-T508 | 1030128553 | 0,00 ₺ | Var | ||
|
Countersunk screw M5 × 12 | Q-T507 | 1030128091 | 0,00 ₺ | Var | ||
|
Micro switch zippy (right outlet) | Q-2051 | 1021605521 | 0,00 ₺ | Var | ||
|
Screw M3 × 12 | Q-T506 | 1030128227 | 0,00 ₺ | Var | ||
|
NSK 6800ZZ (10-19-5) | Q-T502 | 1021401167 | 0,00 ₺ | Var | ||
|
|
Limit clip spring | Q-6038 | 1030129657 | 0,00 ₺ | Var | ||
|
Welding motor gear | Q-6023 | 2015000197 | 0,00 ₺ | Var | ||
|
Welding reverse gear | Q-6022 | 2015000196 | 0,00 ₺ | Var | ||
|
|
One way needle roller bearing HF0608 | Q-T005 | 1021402953 | 0,00 ₺ | Var | ||
|
NSK 4FC-6LH (06-10-12) | Q-T503 | 1021403744 | 0,00 ₺ | Var | ||
|
Equal height bolt M5- Φ 6-10 | Q-T215 | 1030127621 | 0,00 ₺ | Var | ||
|
|
Set screw M3 × 3 | Q-T504 | 1030128225 | 0,00 ₺ | Var | ||
|
Stainless steel flat gasket M6 × 9 × 0.2 | Q-T611 | 1030130369 | 0,00 ₺ | Var | ||
|
|
Stainless steel flat gasket M6 × 12 × 0.2 | Q-T508 | 1030128553 | 0,00 ₺ | Var | ||
|
Pin shaft | Q-5018 | 2018000152 | 0,00 ₺ | Var | ||
|
Split ring Φ4 | Q-A003 | 1030102658 | 0,00 ₺ | Var | ||
|
Toggle bar | Q-6020 | 2010100506 | 0,00 ₺ | Var | ||
|
Screw M4 × 8 | Q-T019 | 1030126739 | 0,00 ₺ | Var | ||
|
|
Cylindrical pin Φ 3 × 8 | Q-T206 | 1030118355 | 0,00 ₺ | Var | ||
|
Welding framework | Q-5021 | 2010900078 | 0,00 ₺ | Var | ||
|
Welding chute | Q-2021 | 2011000225 | 0,00 ₺ | Var | ||
|
|
Cylindrical pin Φ4 × 16 | Q-T218 | 1030128552 | 0,00 ₺ | Var | ||
|
Steel ball Φ5 | T1094 | 1030100433 | 0,00 ₺ | Var | ||
|
Sliding gear block baffle 1 | Q-A005 | 2010020285 | 0,00 ₺ | Var | ||
|
Countersunk screw M4 × 6 | T021A | 1030126746 | 0,00 ₺ | Var | ||
|
Cutter spring | Q-0080 | 1030126721 | 0,00 ₺ | Var | ||
|
Welding drive pin | Q-2042 | 2011000235 | 0,00 ₺ | Var | ||
|
Welding tooth block | Q-2022 | 2011000226 | 0,00 ₺ | Var | ||
|

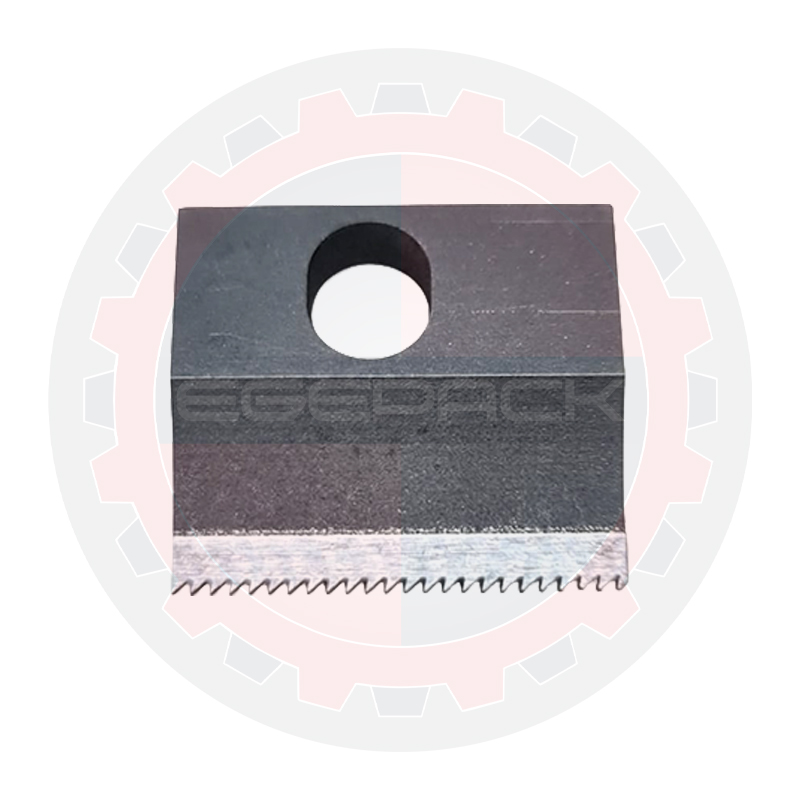

Cutter | Q-0078 | 2011000213 | 0,00 ₺ | Var | ||
|
Briquette | Q-2024 | 2011000227 | 0,00 ₺ | Var | ||
|
|
Screw M4 × 12 | Q-T501 | 1030128224 | 0,00 ₺ | Var | ||
|
Cutter bushing | Q-0079 | 2011000214 | 0,00 ₺ | Var | ||
|
Screw M4 × 6 | T021 | 1030126739 | 0,00 ₺ | Var | ||
|
Eccentric shaft (1.1) | Q-2025 | 2011000236 | 0,00 ₺ | Var | ||
|
|
Bearing JNS NK10 / 12 | T1104A | 1021403753 | 0,00 ₺ | Var | ||
|
Connecting rod | Q-2023 | 2060074516 | 0,00 ₺ | Var | ||
|
Screw M4 × 6 | T021 | 1030126739 | 0,00 ₺ | Var | ||
|
|
Slide spring fixing pin | Q-0008 | 2011000194 | 0,00 ₺ | Var | ||
|
|
Stainless steel flat gasket M6 × 9 × 0.5 | Q-T612 | 1030130370 | 0,00 ₺ | Var | ||
|
Stainless steel flat gasket M6 × 9 × 0.2 | Q-T611 | 1030130369 | 0,00 ₺ | Var | ||
|

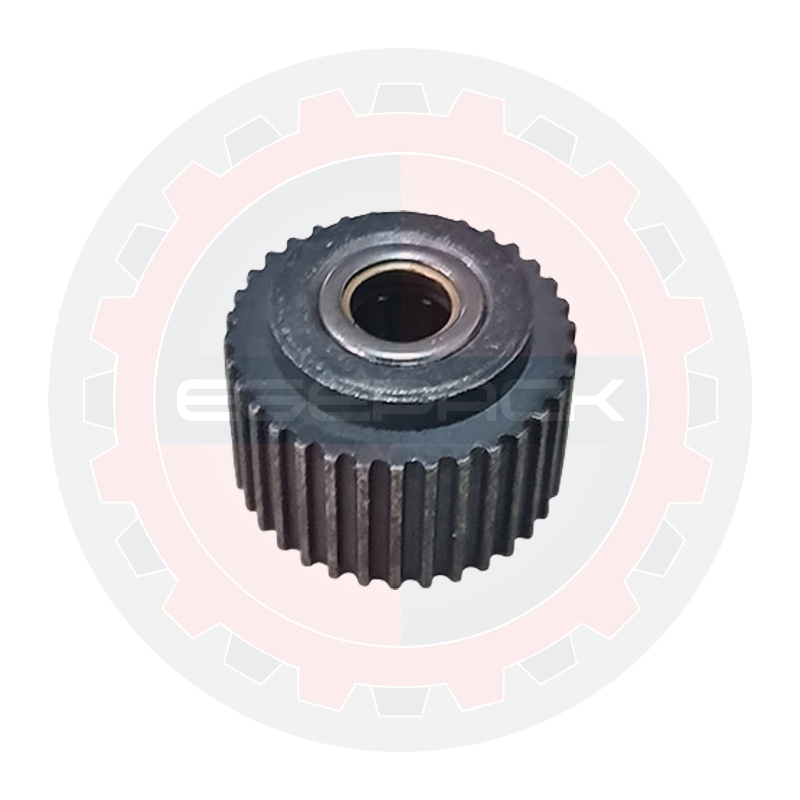

Synchronous pulley | Q-5014A | 2015000283 | 0,00 ₺ | Var | ||
|
|
Pulley gasket | Q-A004 | 2010013675 | 0,00 ₺ | Var | ||
|
Screw M3 × 6 | Q-T207 | 1030127414V | 0,00 ₺ | Var | ||
|
NSK 4FC-6LH (06-10-12) | Q-T503 | 1021403744 | 0,00 ₺ | Var | ||
|
Timing belt MXL-65 teeth-12mm | Q-T223B | 1021510270 | 0,00 ₺ | Var | ||
|
Large synchronous pulley | Q-5014 | 2015000116 | 0,00 ₺ | Var | ||
|
Stainless steel flat gasket M6 × 9 × 0.3 | Q-T601 | 1030129660 | 0,00 ₺ | Var | ||
|
Welding motor mounting plate | Q-5013 | 2015000171 | 0,00 ₺ | Var | ||
|
Welding motor | Q-6024 | 2015000194 | 0,00 ₺ | Var | ||
|
Battery | Q-T050 | 1020610549 | 0,00 ₺ | Var | ||
|
Lower cover of circuit board | Q-3008B | 1030130955 | 0,00 ₺ | Var | ||
|
Circuit board cover | Q-3008A | 1030130954 | 0,00 ₺ | Var | ||
|
Self tapping screw M2.5 × 6 | Q-A006 | 1030130815 | 0,00 ₺ | Var | ||
|
Handle | Q-3S009 | 1030130272 | 0,00 ₺ | Var | ||
|
Welding button spring | Q-0125 | 1030126726 | 0,00 ₺ | Var | ||
|
Micro switch zippy (right outlet) | Q-2051 | 1021605521 | 0,00 ₺ | Var | ||
|
Switch B | Q-3006 | 1030128980 | 0,00 ₺ | Var | ||
|
Bracket 2 | Q-3004 | 1030128978 | 0,00 ₺ | Var | ||
|
Self tapping screw M2.5 × 6 | Q-A006 | 1030130815 | 0,00 ₺ | Var | ||
|
Bracket 1 | Q-3003 | 1030128977 | 0,00 ₺ | Var | ||
|
Switch A | Q-3005 | 1030128979 | 0,00 ₺ | Var | ||
|
Screw M4 × 12 | Q-T510A | 1030128554 | 0,00 ₺ | Var | ||
|
Right housing | Q-3S002 | 1030130271 | 0,00 ₺ | Var | ||
|
PVC panel | Q-T301 | 1030129676 | 0,00 ₺ | Var | ||
|
Screw M4 × 12 | Q-T510A | 1030128554 | 0,00 ₺ | Var | ||
|
Self tapping screw M2.5 × 6 | Q-A006 | 1030130815 | 0,00 ₺ | Var | ||
|
Circuit board | Q-5037 | 1021606068 | 0,00 ₺ | Var | ||
|
Self tapping screw M3.5 × 12 | Q-T505A | 1030130817 | 0,00 ₺ | Var | ||
|
Screw M4 × 10 | T1079A | 1030130818 | 0,00 ₺ | Var | ||
|
Screw M4 × 16 | Q-T219 | 1030126338 | 0,00 ₺ | Var | ||
|
Self tapping screw M3.5 × 12 | Q-T505A | 1030130817 | 0,00 ₺ | Var |
