Yedek Parça Seçenekleri
| Görsel | Part Name | Pos No | Part No | Fiyat | Stok | Adet | Aksiyon |
|---|---|---|---|---|---|---|---|
|

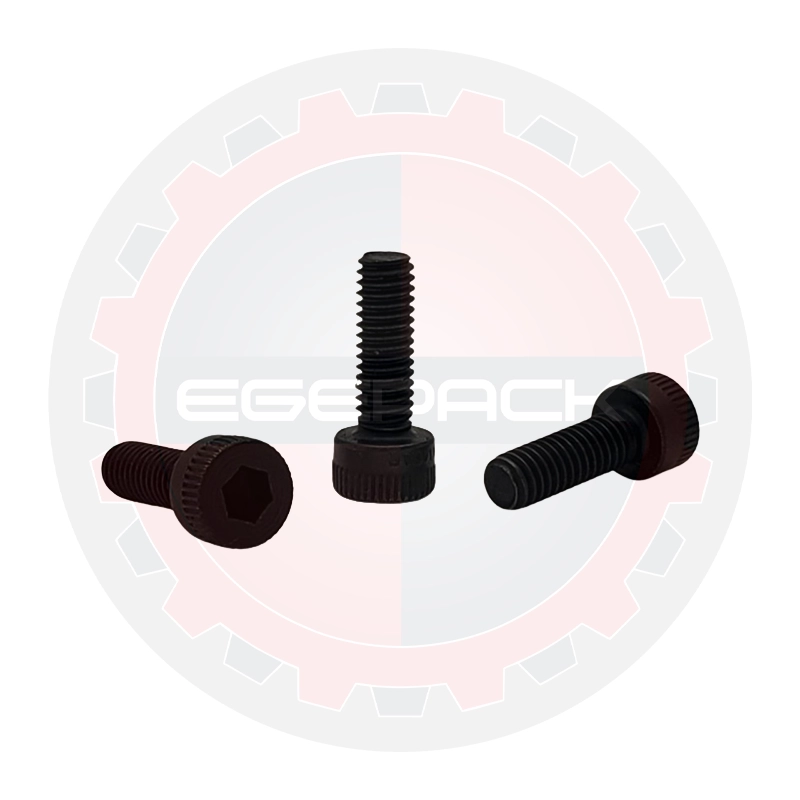

Cylinder screw M4×12 (12.9) | 41 | 1911.004.127 | 0,00 ₺ | Var | ||
|
|

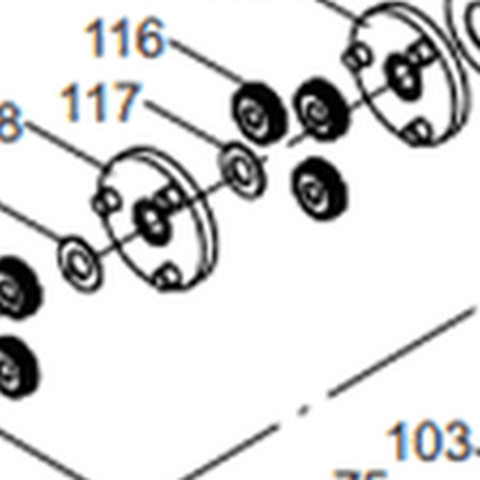

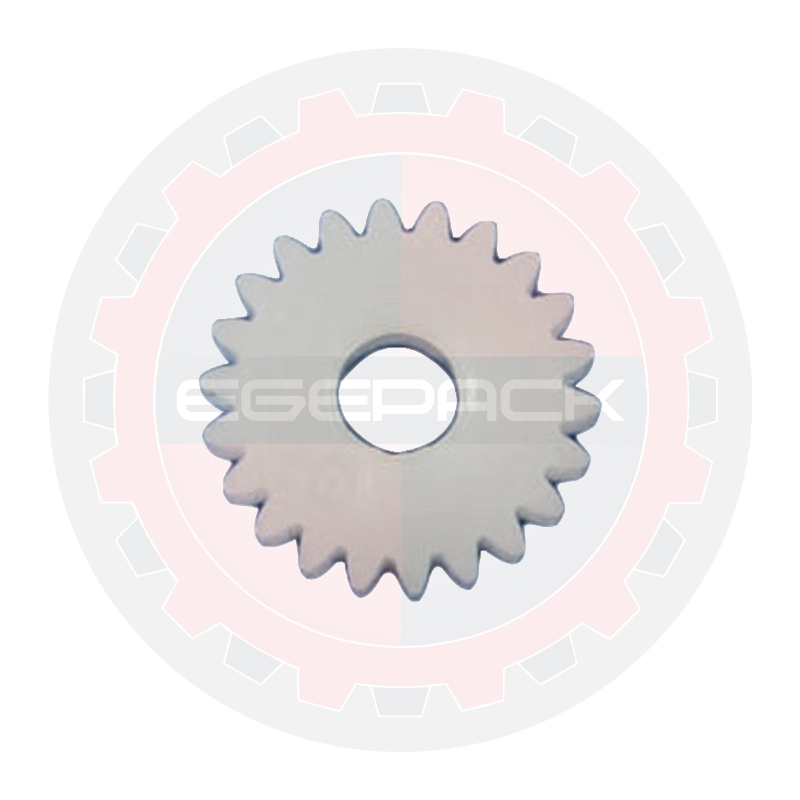

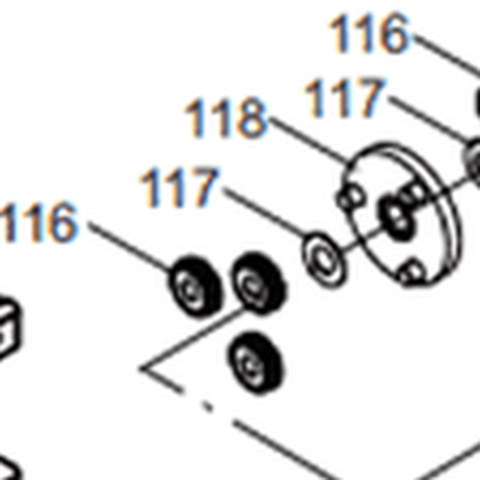

Planetary wheel, 1st/2nd step | 116 | 1821.060.024 | 0,00 ₺ | Var | ||
|
|
Spacer disk Ø6/12×0.2 | 117 | 1917.411.062 | 0,00 ₺ | Var | ||
|
|

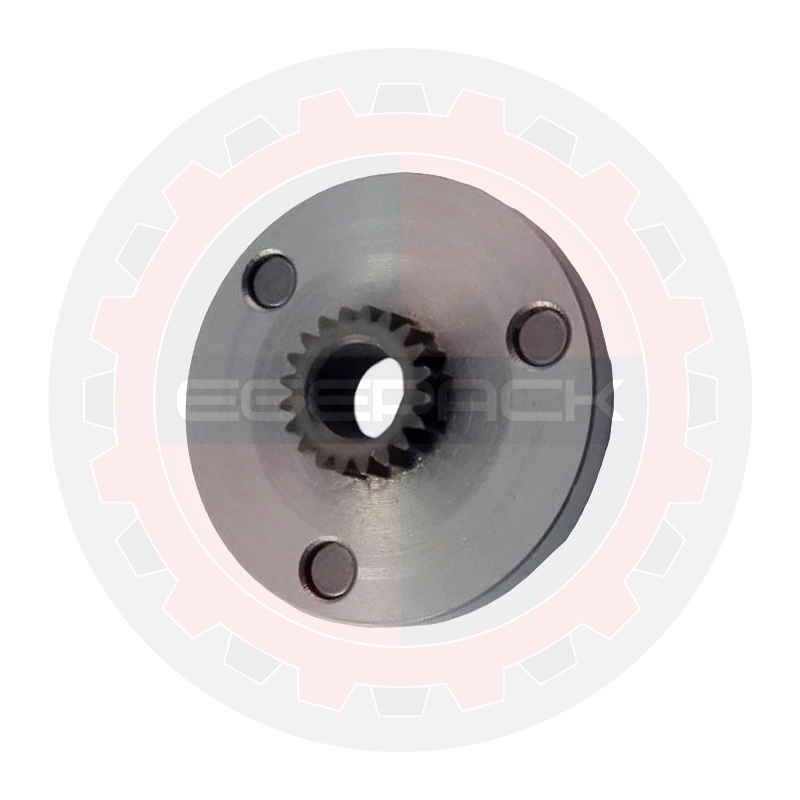

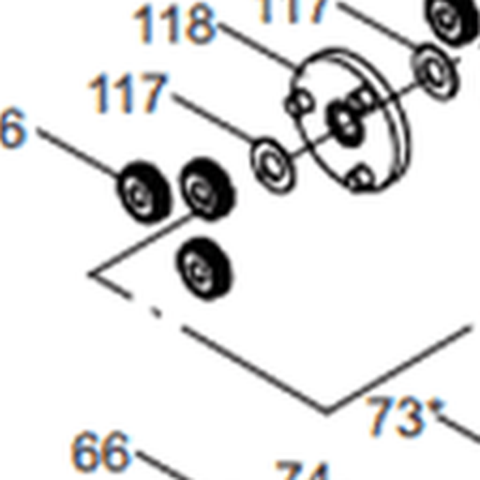

Carrier complete 1st step | 118 | 1832.039.201 | 0,00 ₺ | Var | ||
|
|
Spacer disk Ø6/12×0.2 | 117 | 1917.411.062 | 0,00 ₺ | Var | ||
|
|
Planetary wheel, 1st/2nd step | 116 | 1821.060.024 | 0,00 ₺ | Var | ||
|
|
Carrier complete 2nd step | 112 | 1832.039.203 | 0,00 ₺ | Var | ||
|
|
Spacer disk Ø12/24×0.2 | 111 | 1917.401.122 | 0,00 ₺ | Var | ||
|
|
Planetary wheel, 3rd step | 110 | 1821.060.023 | 0,00 ₺ | Var | ||
|
|
Excentric cam | 109 | 1832.022.160 | 0,00 ₺ | Var | ||
|
|
Ball bearing Ø30/37×4 | 108 | 1930.170.302 | 0,00 ₺ | Var | ||
|
|
Gear cover, alu | 183 | 1832.011.171 | 0,00 ₺ | Var | ||
|
|

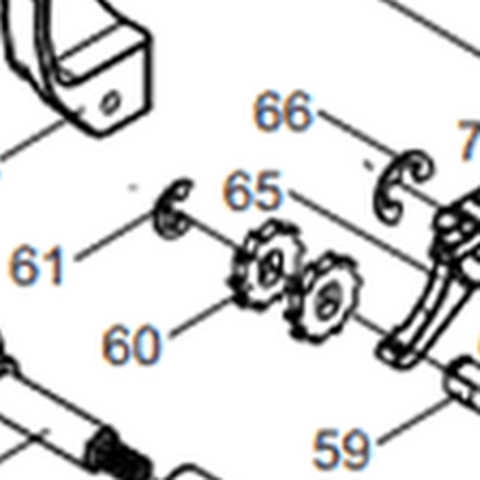

Retaining ring Ø5 | 61 | 1920.105.072 | 0,00 ₺ | Var | ||
|
|
Pawl wheel | 60 | 1832.039.213 | 0,00 ₺ | Var | ||
|
|
Pawl shaft | 59 | 1832.039.214 | 0,00 ₺ | Var | ||
|
|

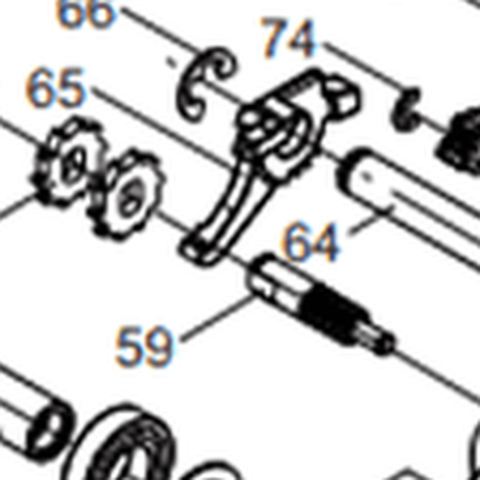

Blocking pawl | 65 | 1832.031.057 | 0,00 ₺ | Var | ||
|
|
Retaining ring Ø8 | 66 | 1920.108.102 | 0,00 ₺ | Var | ||
|
|

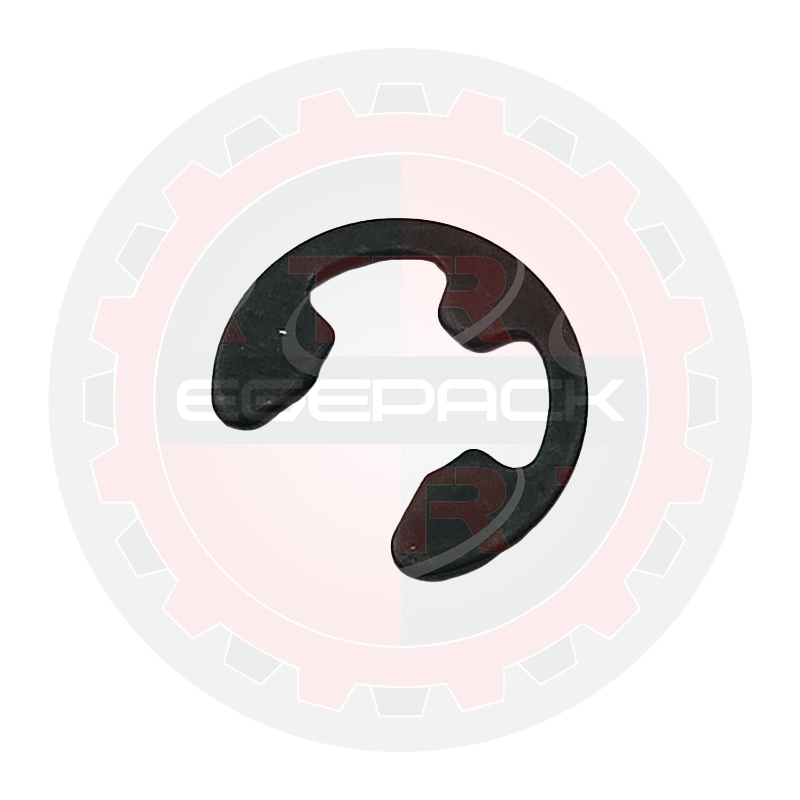

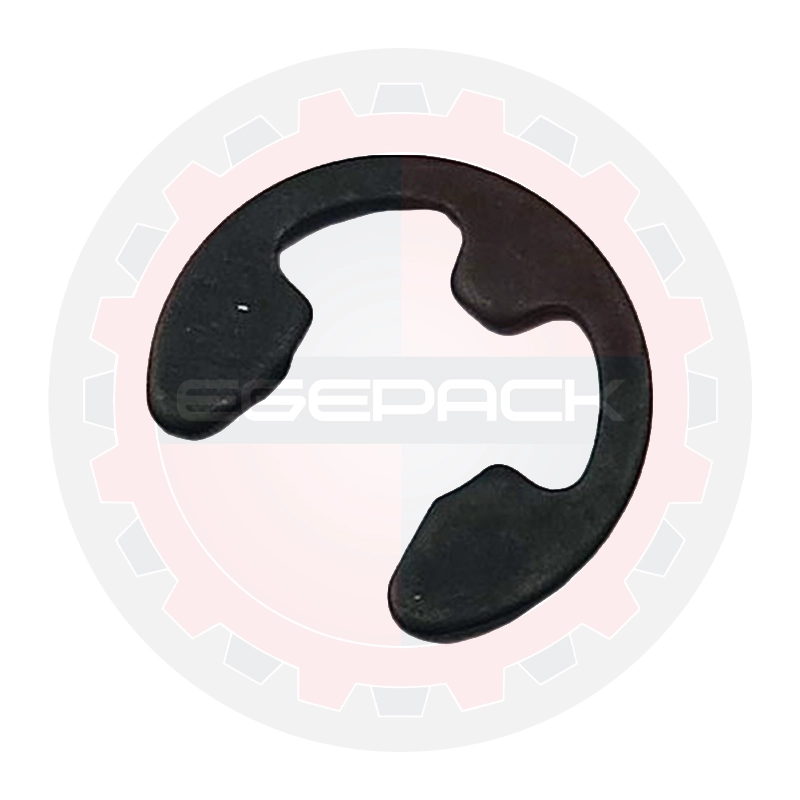

Retaining ring Ø4 | 74 | 1920.104.072 | 0,00 ₺ | Var | ||
|
|

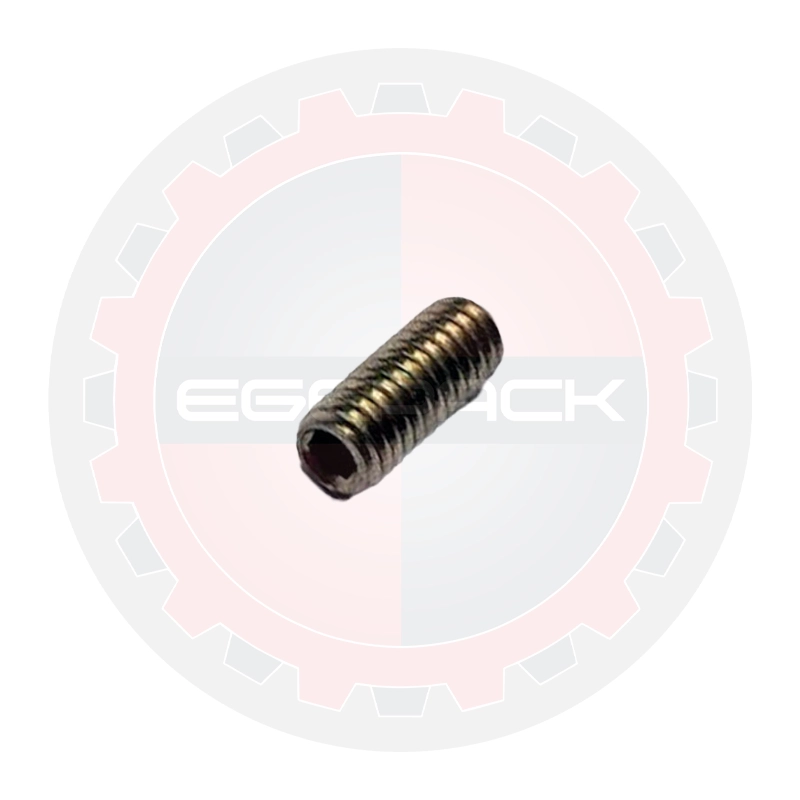

Set screw M4×10 | 73 | 1910.404.104 | 0,00 ₺ | Var | ||
|
|

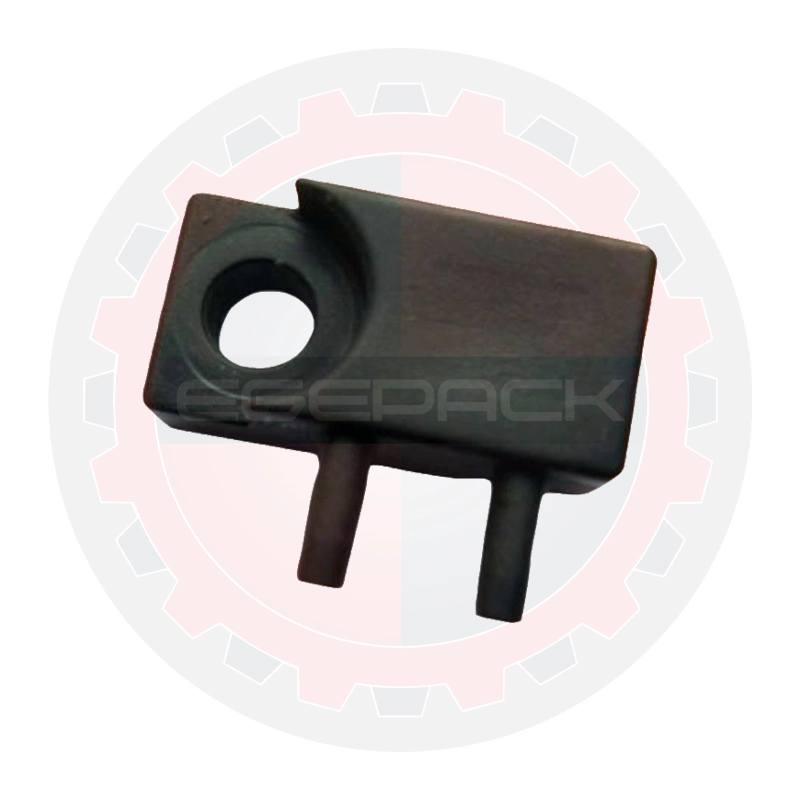

Support micro switch | 75 | 1832.031.060 | 0,00 ₺ | Var | ||
|
|

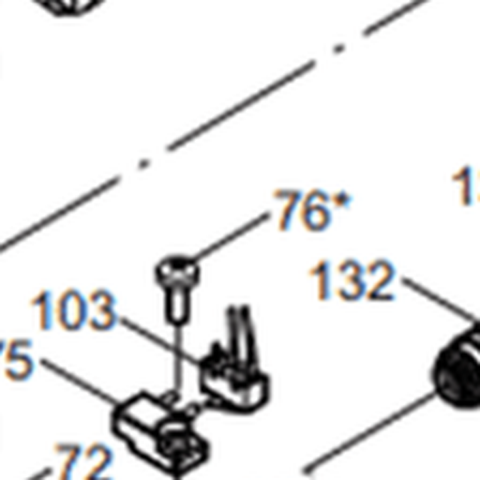

Cables tensioning | 103 | 1821.151.016 | 0,00 ₺ | Var | ||
|
|

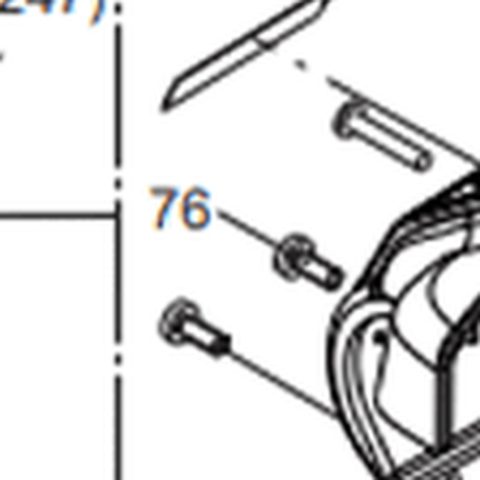

Panhead screw M4×10 | 76 | 1912.404.104 | 0,00 ₺ | Var | ||
|
|

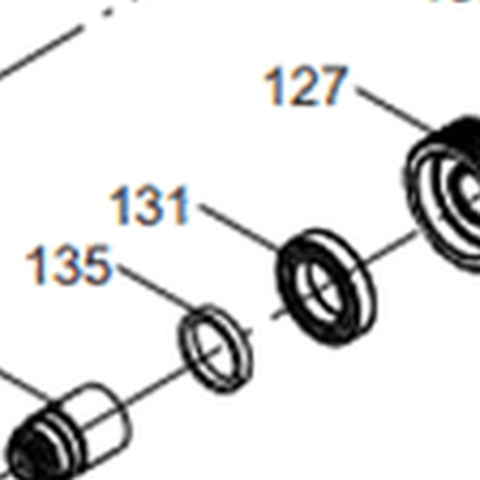

Spacer ring Ø15/18×2.9 | 135 | 1832.022.159 | 0,00 ₺ | Var | ||
|
|
Ball bearing Ø15/24×5 | 131 | 1930.180.152 | 0,00 ₺ | Var | ||
|
|
Belt wheel complete | 127 | 1832.039.196 | 0,00 ₺ | Var | ||
|
|
Starting disk | 130 | 1832.022.161 | 0,00 ₺ | Var | ||
|
|
Cover motor support | 125 | 1832.022.196 | 0,00 ₺ | Var | ||
|
|
Ring | 124 | 1821.020.151 | 0,00 ₺ | Var | ||
|
|

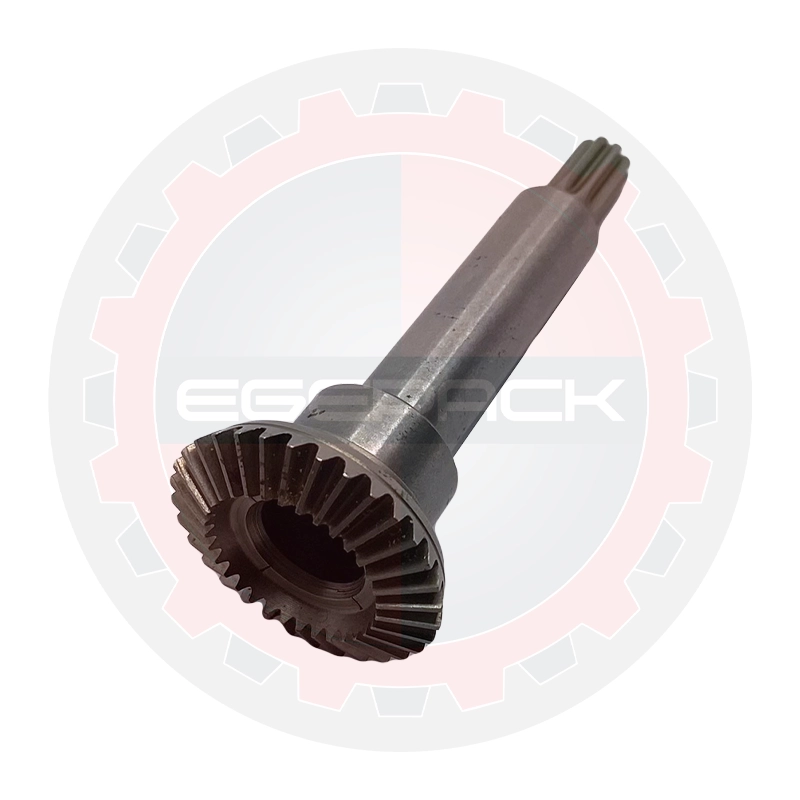

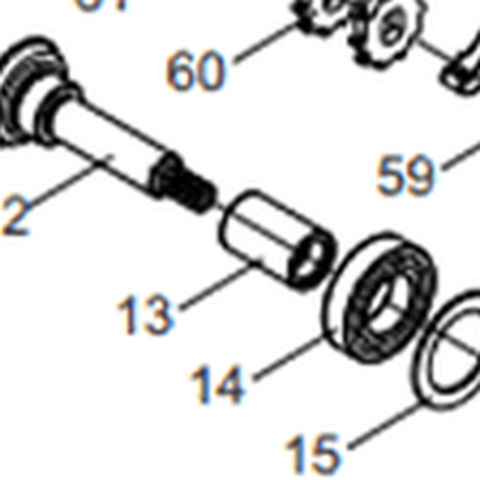

Bevel wheel with pinion 15/32 | 12 | 1821.061.018 | 0,00 ₺ | Var | ||
|
|

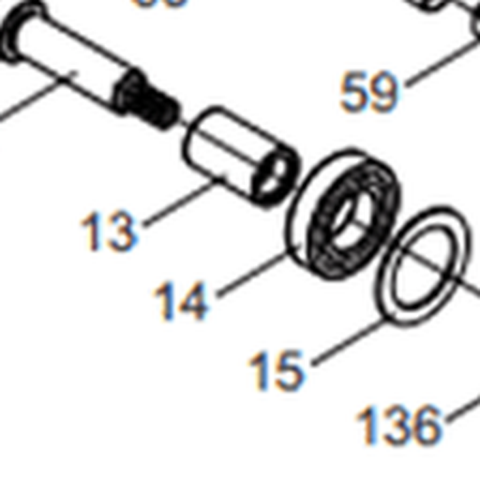

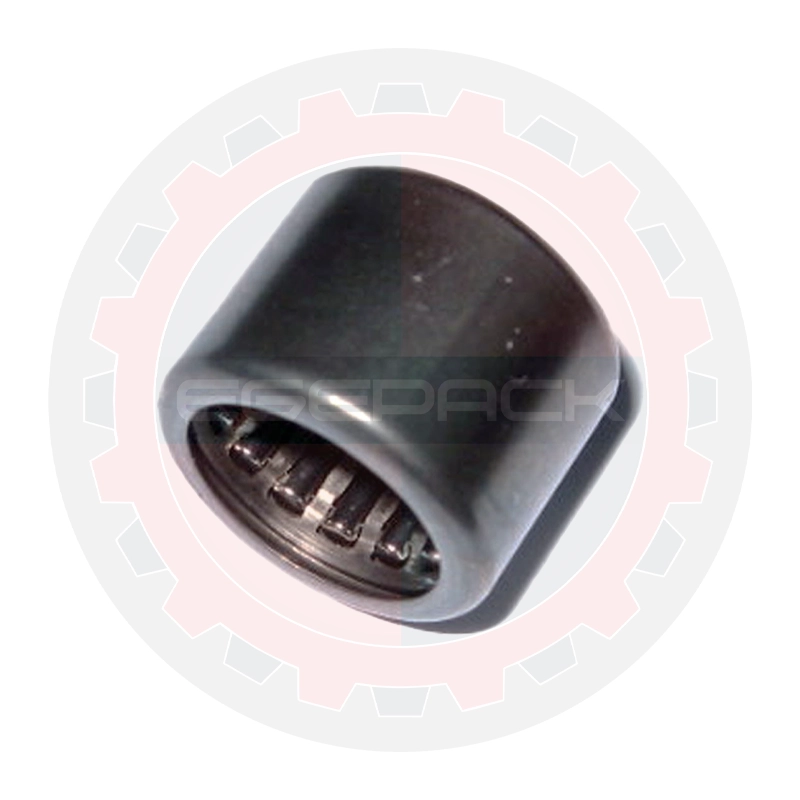

Free-wheel needle bearing Ø10/14×22 | 13 | 1926.502.100 | 0,00 ₺ | Var | ||
|
|
Ball bearing Ø15/28×7 | 14 | 1930.190.154 | 0,00 ₺ | Var | ||
|
|

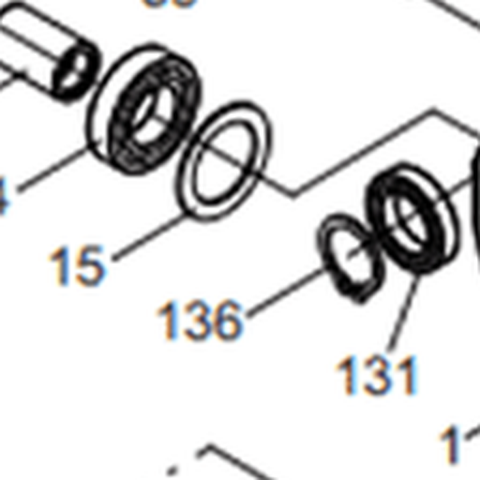

Spacer disk Ø20/28×1 | 15 | 1917.411.208 | 0,00 ₺ | Var | ||
|
|

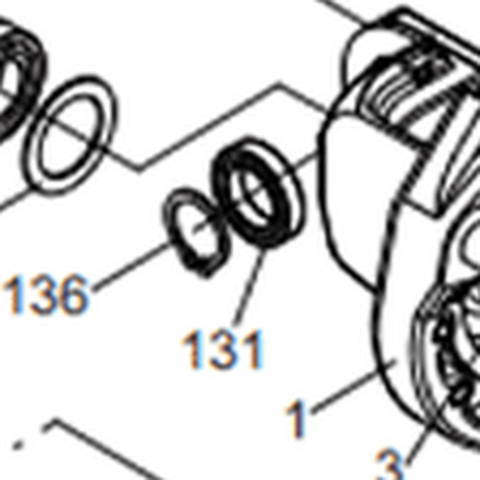

External retaining ring Ø15 | 136 | 1920.215.102 | 0,00 ₺ | Var | ||
|
|
Ball bearing Ø15/24×5 | 131 | 1930.180.152 | 0,00 ₺ | Var | ||
|
|

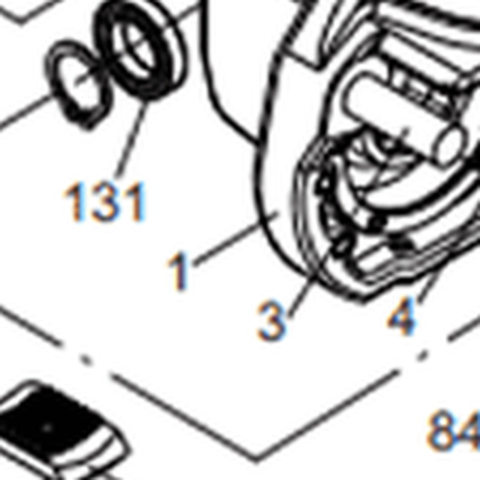

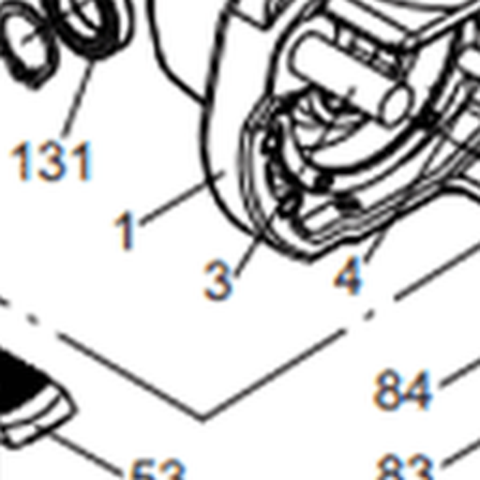

Base plate complete, incl. pos. 2–6 | 1 | 1832.011.170 | 0,00 ₺ | Var | ||
|
|
Bolt | 64 | 1832.039.208 | 0,00 ₺ | Var | ||
|
|
Reset cam | 72 | 1832.022.185 | 0,00 ₺ | Var | ||
|
|
Spacer disk Ø5/10×0.2 | 71 | 1917.411.052 | 0,00 ₺ | Var | ||
|
|

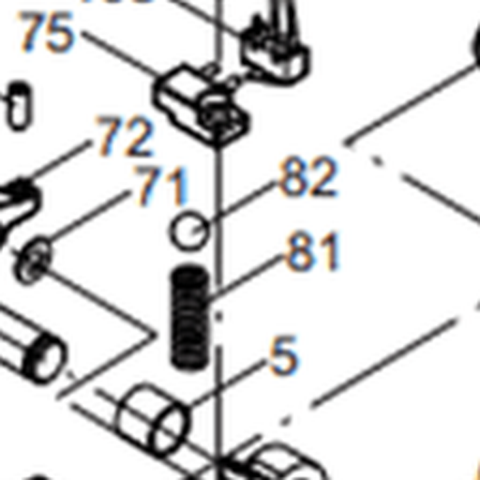

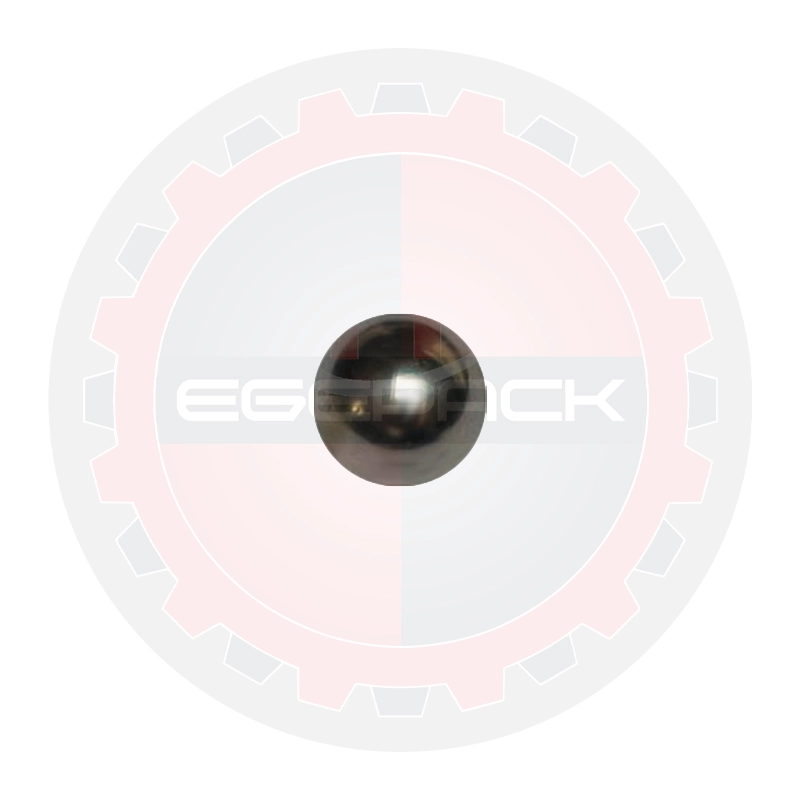

Ball Ø8 | 82 | 1925.010.802 | 0,00 ₺ | Var | ||
|
|

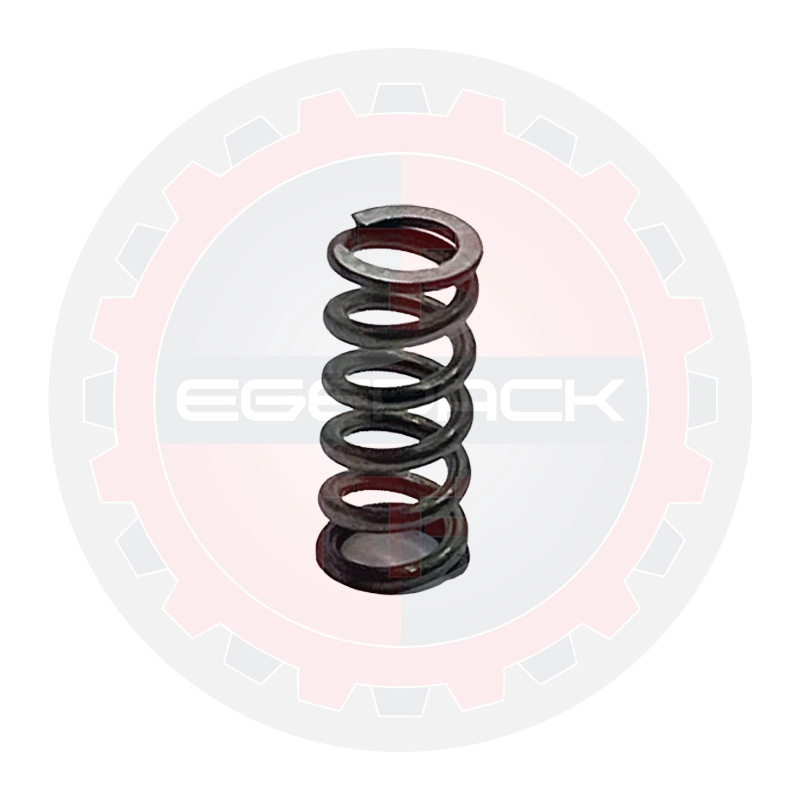

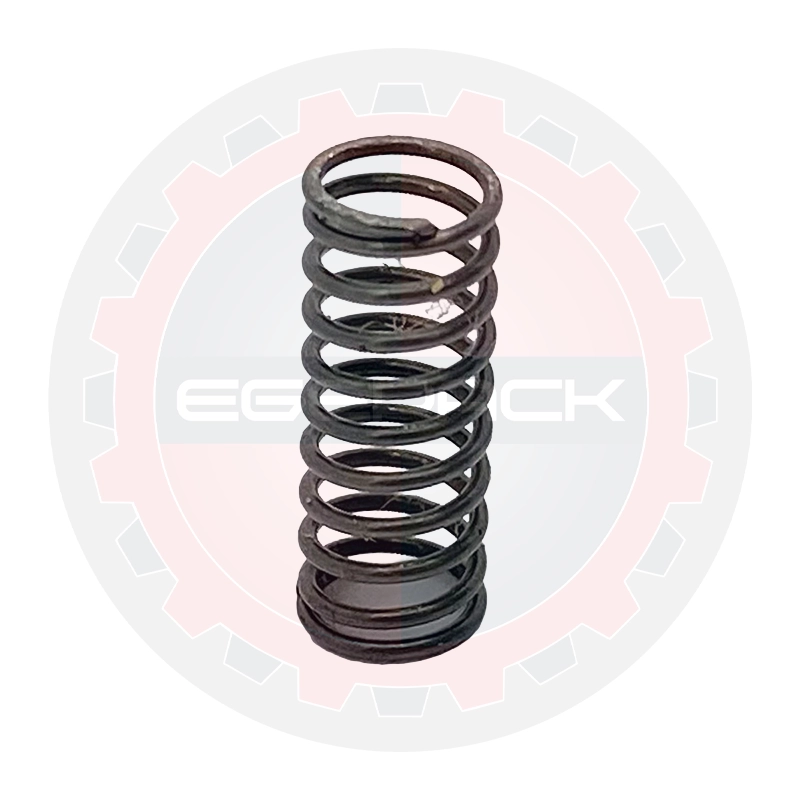

Compression spring | 81 | 1821.010.095 | 0,00 ₺ | Var | ||
|
|
Spacer disk Ø4/8×0.1 | 100 | 1917.411.041 | 0,00 ₺ | Var | ||
|
|
Counter sunk screw M3×8 | 99 | 1912.203.086 | 0,00 ₺ | Var | ||
|
|

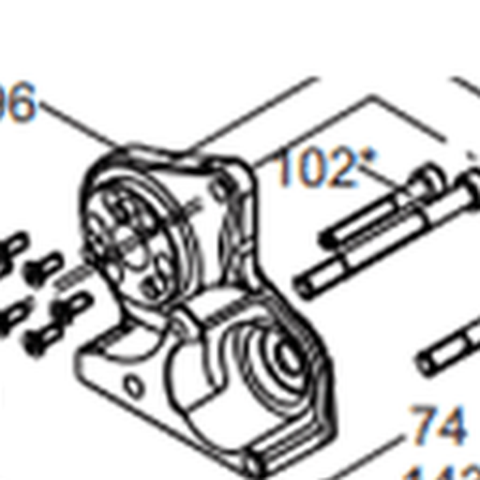

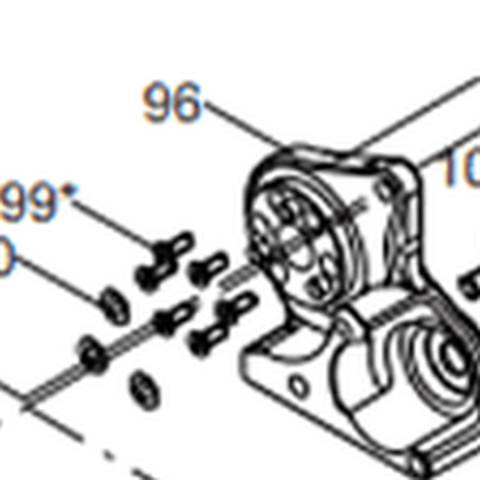

Motor support complete | 96 | 1832.022.191 | 0,00 ₺ | Var | ||
|
|

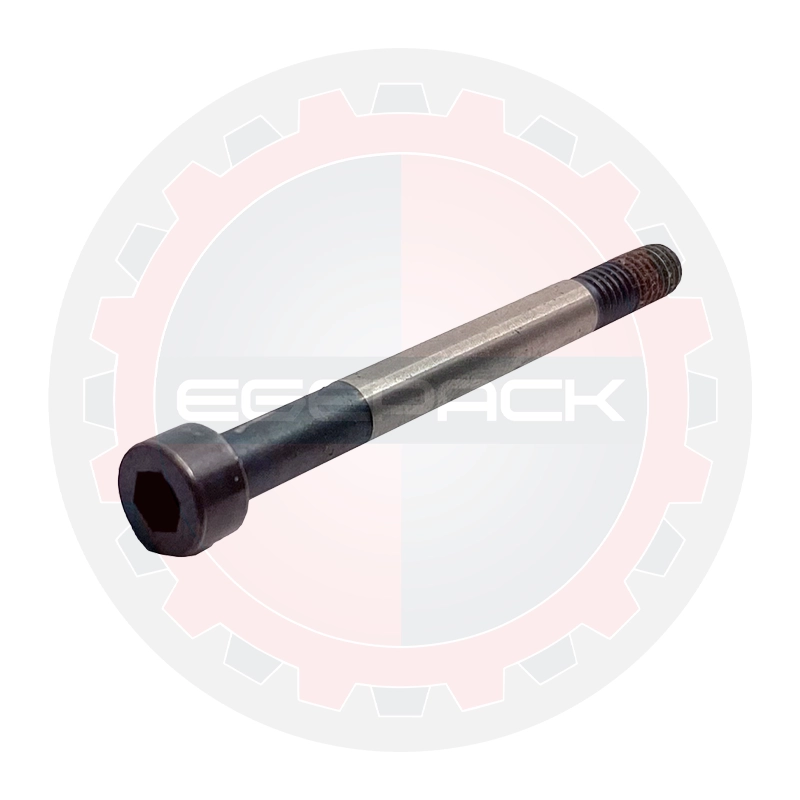

Cylinder screw M4×30 | 102 | 1911.104.304 | 0,00 ₺ | Var | ||
|
|
Panhead screw M2×10 | 104 | 1912.401.104 | 0,00 ₺ | Var | ||
|
|
Cables tensioning | 103 | 1821.151.016 | 0,00 ₺ | Var | ||
|
|

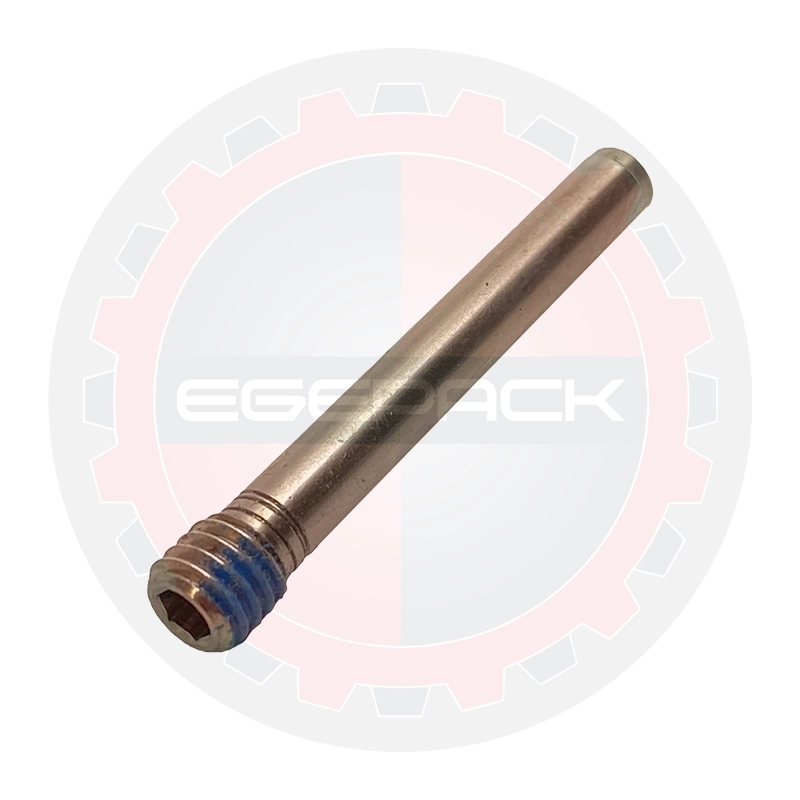

Shoulder screw I-6Kt M5 | 101 | 1821.027.037 | 0,00 ₺ | Var | ||
|
|
Retaining ring Ø4 | 74 | 1920.104.072 | 0,00 ₺ | Var | ||
|
|

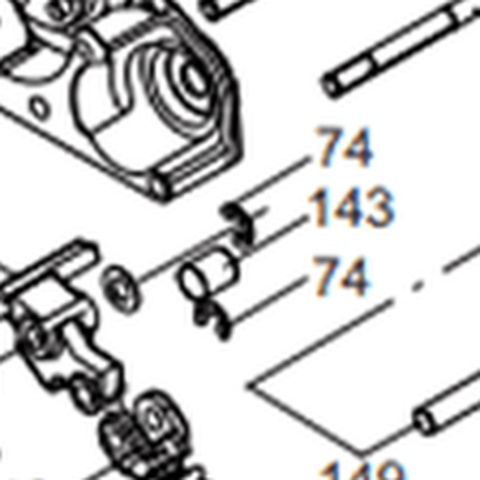

Bolt | 143 | 1832.022.163 | 0,00 ₺ | Var | ||
|
|
Retaining ring Ø4 | 74 | 1920.104.072 | 0,00 ₺ | Var | ||
|
|

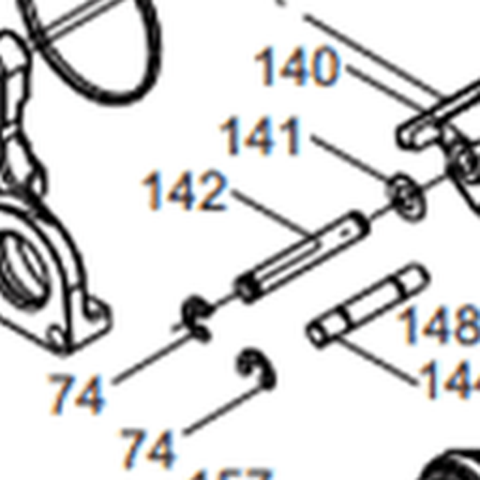

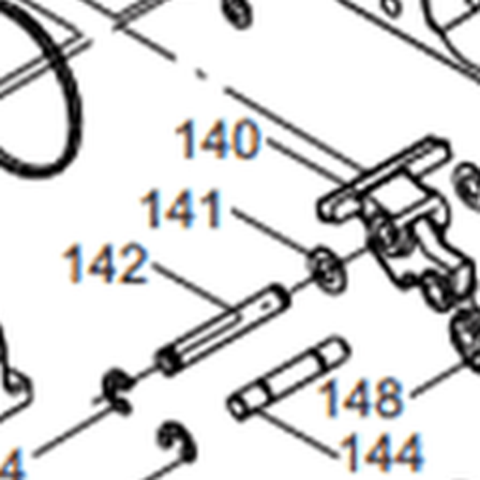

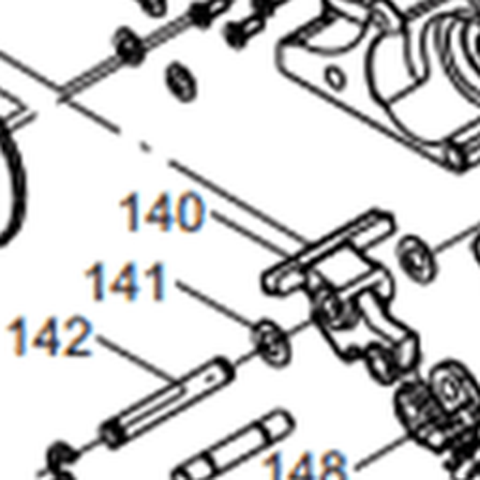

Switching cam | 140 | 1832.022.184 | 0,00 ₺ | Var | ||
|
|

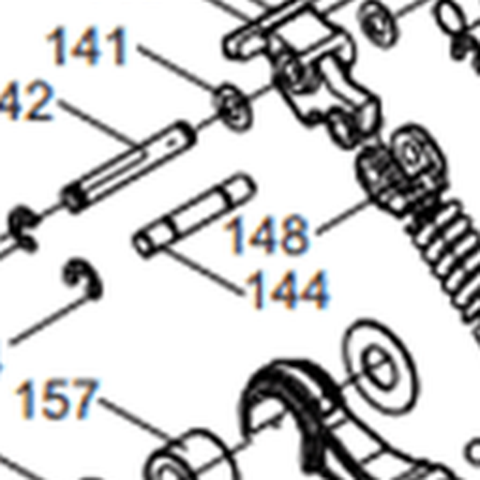

Spacer Ø5/10×0.1 | 141 | 1917.411.051 | 0,00 ₺ | Var | ||
|
|
Bolt | 142 | 1821.031.055 | 0,00 ₺ | Var | ||
|
|
Retaining ring Ø4 | 74 | 1920.104.072 | 0,00 ₺ | Var | ||
|
|
Retaining ring Ø4 | 74 | 1920.104.072 | 0,00 ₺ | Var | ||
|
|

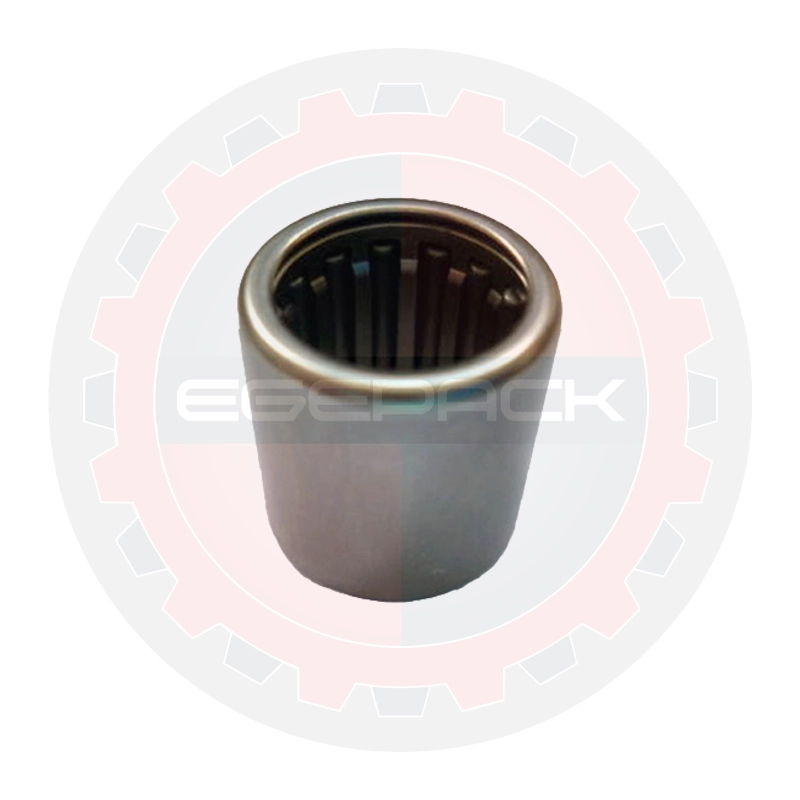

Needle bearing Ø10/17×12 | 157 | 1933.210.120 | 0,00 ₺ | Var | ||
|
|
Spacer disk Ø10/22×0.5 | 156 | 1917.401.105 | 0,00 ₺ | Var | ||
|
|
Ball Ø5 | 159 | 1925.010.502 | 0,00 ₺ | Var | ||
|
|

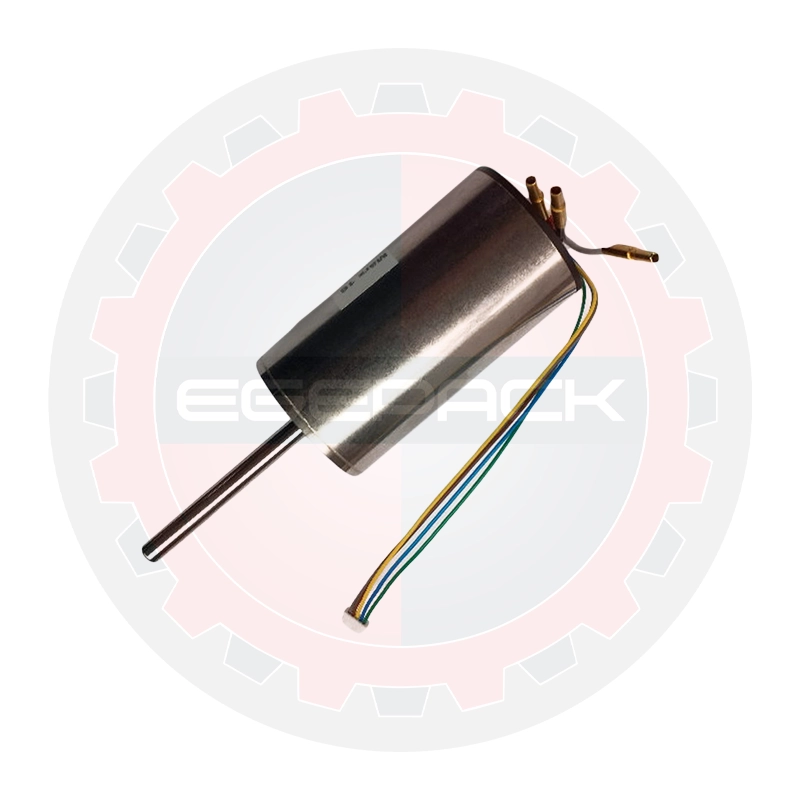

Motor complete | 95 | 1821.140.076 | 0,00 ₺ | Var | ||
|
|
Compression spring Ø9.8×3×27.4 | 149 | 1821.010.098 | 0,00 ₺ | Var | ||
|
|
Lower linkage | 147 | 1832.022.181 | 0,00 ₺ | Var | ||
|
|

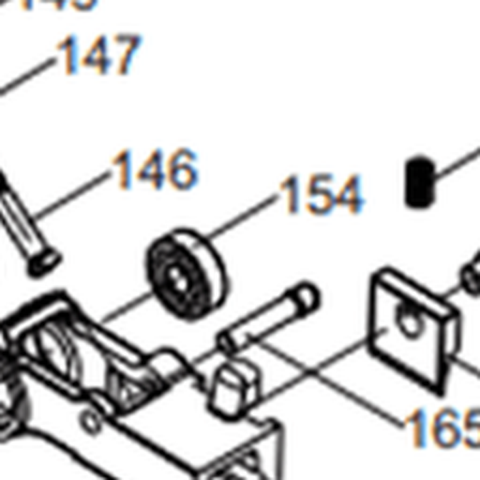

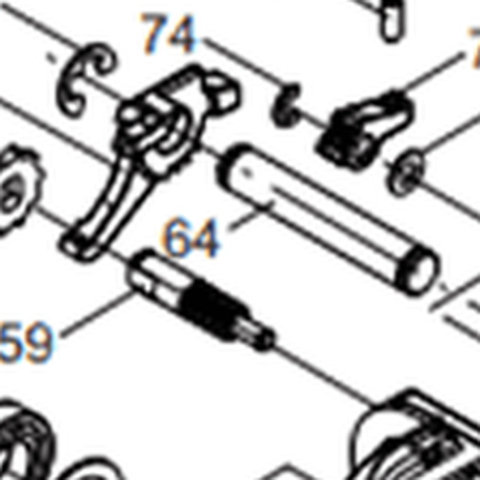

Screwed shaft | 146 | 1832.022.180 | 0,00 ₺ | Var | ||
|
|
Compression spring Ø4.2×0.8×11 | 168 | 1821.010.053 | 0,00 ₺ | Var | ||
|
|
Ball bearing Ø7/19×6 | 154 | 1930.100.072 | 0,00 ₺ | Var | ||
|
|
Panhead screw M4×10 | 76 | 1912.404.104 | 0,00 ₺ | Var | ||
|
|

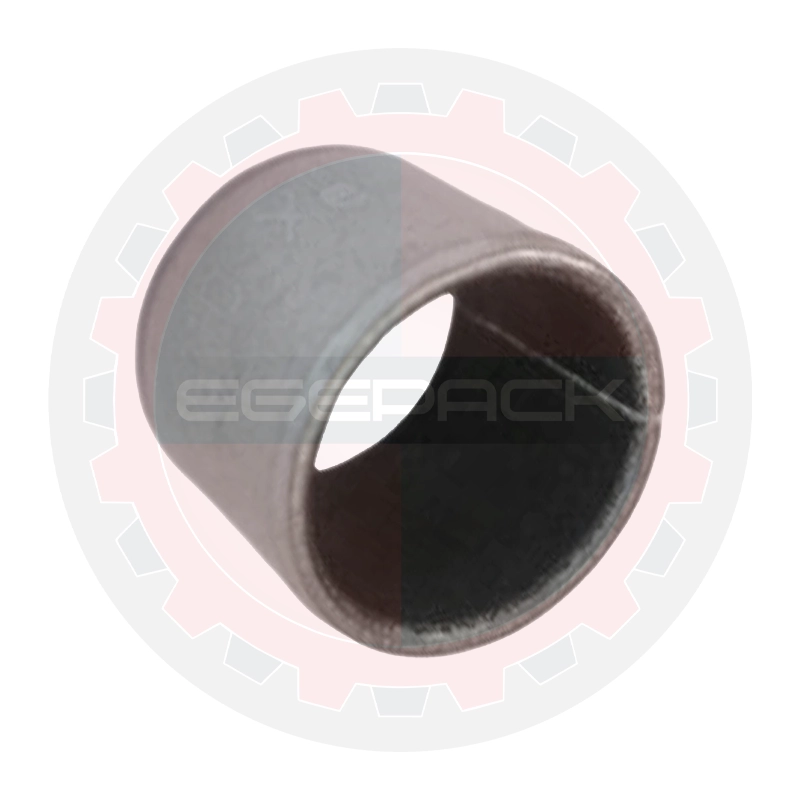

Slide bearing Ø10/12×10 | 5 | 1935.510.100 | 0,00 ₺ | Var | ||
|
|
Slide bearing Ø10/12×10 | 5 | 1935.510.100 | 0,00 ₺ | Var | ||
|
|
Retaining ring Ø8 | 66 | 1920.108.102 | 0,00 ₺ | Var | ||
|
|

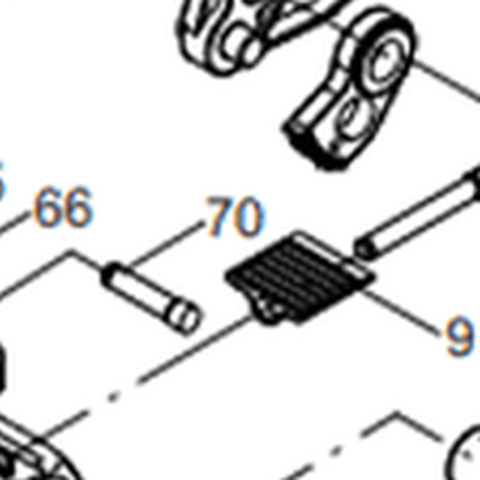

Bolt | 70 | 1832.022.186 | 0,00 ₺ | Var | ||
|
|

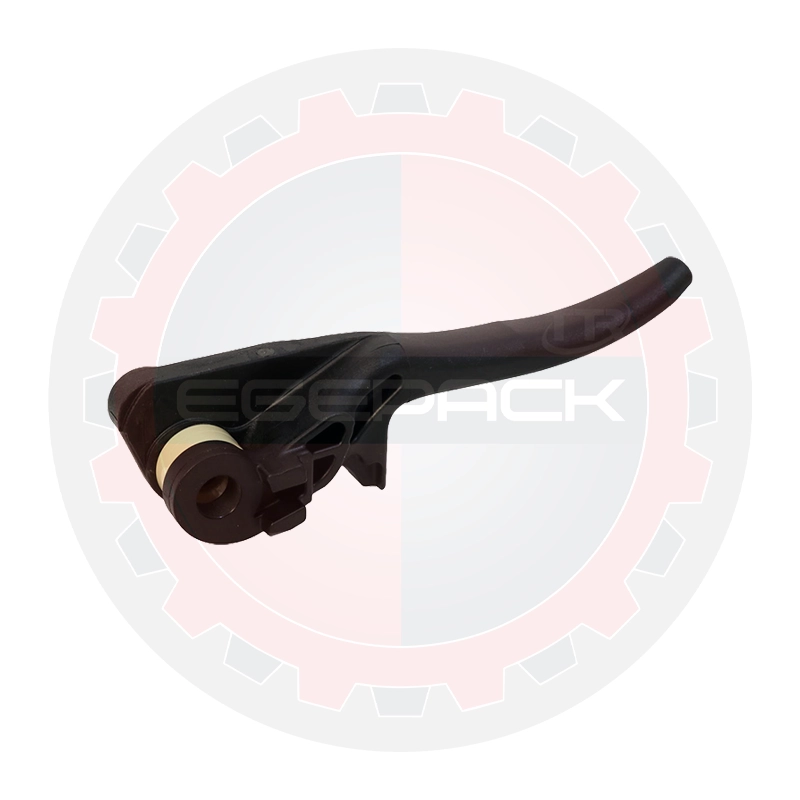

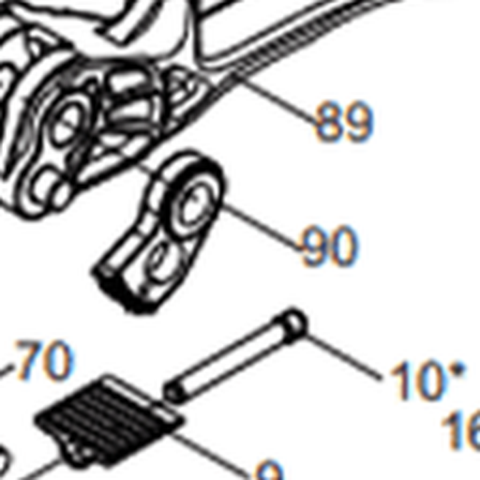

Rocker lever complete | 89 | 1832.031.061 | 0,00 ₺ | Var | ||
|
|
Toothed lever | 90 | 1832.039.199 | 0,00 ₺ | Var | ||
|
|

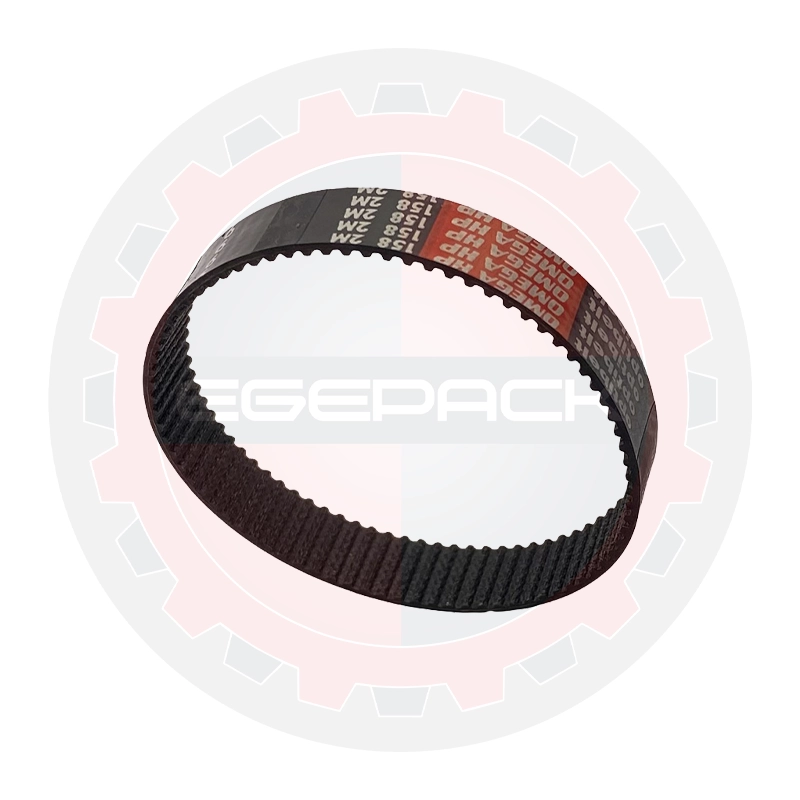

Toothed belt 158-2MGT-9 | 162 | 1821.067.011 | 0,00 ₺ | Var | ||
|
|
Washer | 163 | 1821.020.147 | 0,00 ₺ | Var | ||
|
|
Set screw | 10 | 1832.022.055 | 0,00 ₺ | Var | ||
|
|

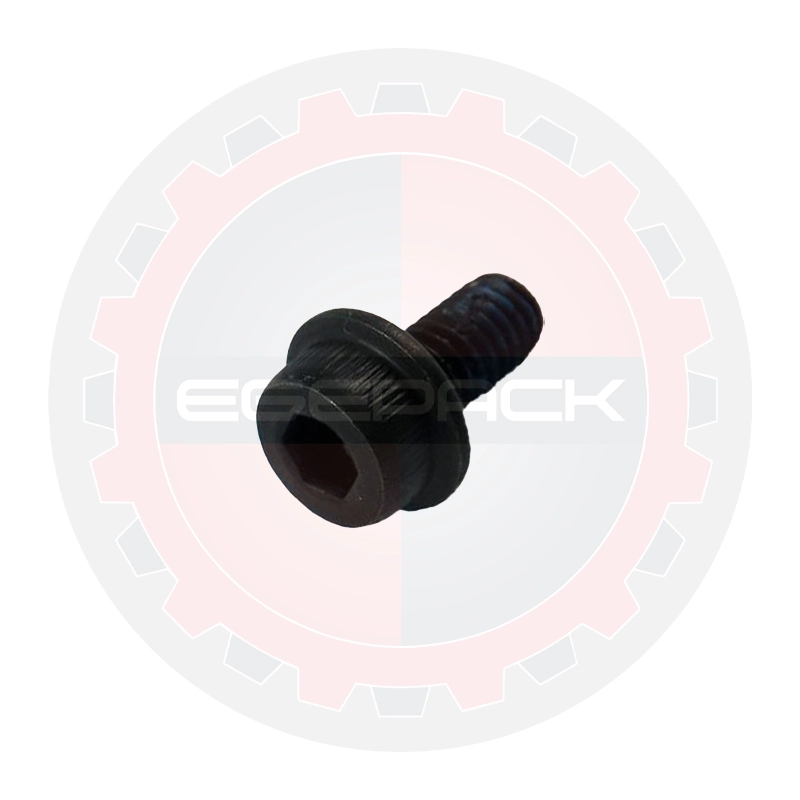

Cylinder screw with flange M4×8 | 164 | 1911.304.084 | 0,00 ₺ | Var | ||
|
|
Tooth plate bottom | 9 | 1832.022.109 | 0,00 ₺ | Var | ||
|
|
Needle bushing Ø10/14×15 | 36 | 1933.710.150 | 0,00 ₺ | Var | ||
|
|

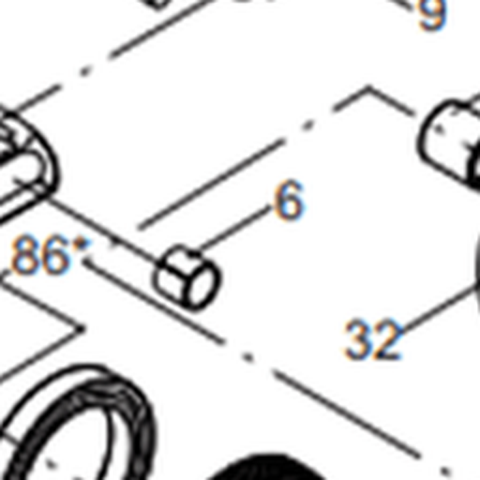

Slide bearing Ø8/10×8 | 6 | 1935.508.080 | 0,00 ₺ | Var | ||
|
|
Set screw M8×6, Tuflok | 86 | 1910.408.064 | 0,00 ₺ | Var | ||
|
|
Cylinder pin Ø10×50 | 3 | 1921.310.501 | 0,00 ₺ | Var | ||
|
|

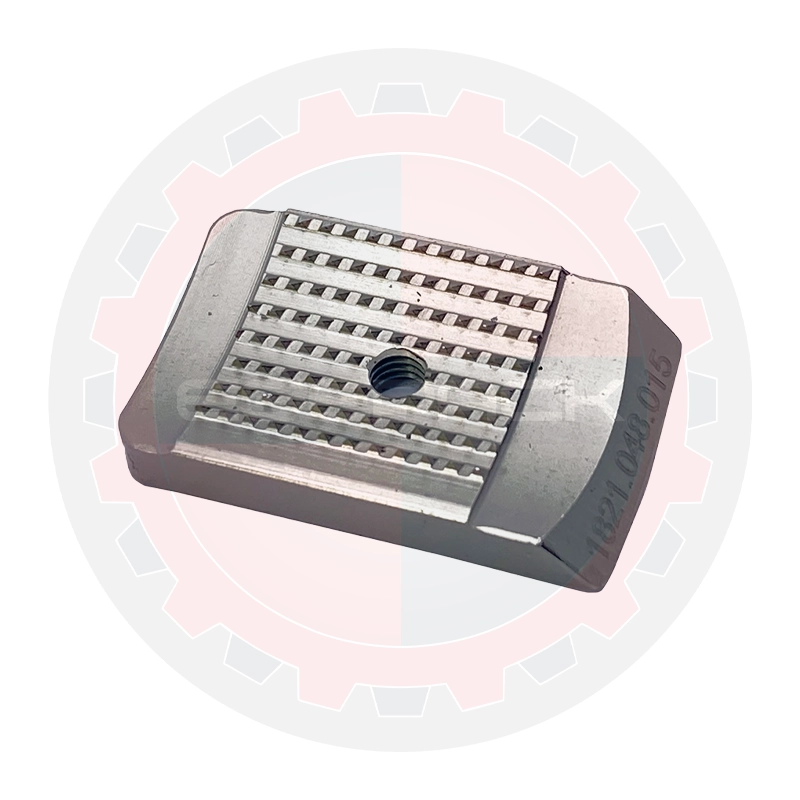

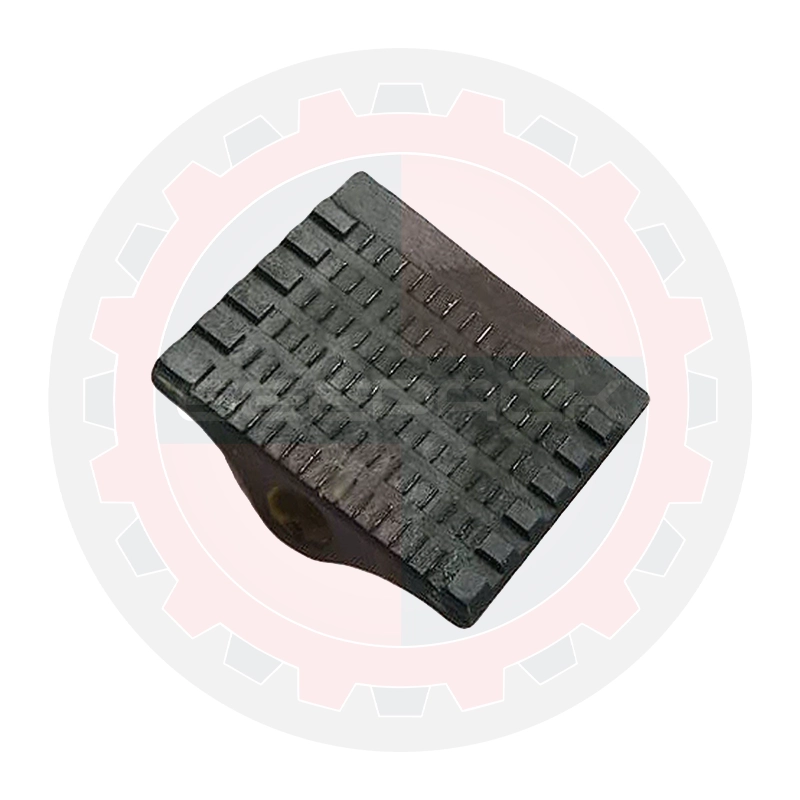

Tooth plate | 53 | 1821.048.015 | 0,00 ₺ | Var | ||
|
|
Slide bearing Ø10/12×10 | 5 | 1935.510.100 | 0,00 ₺ | Var | ||
|
|

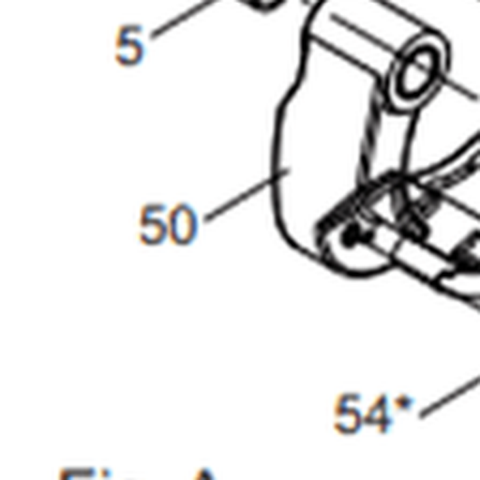

Rocker complete, incl. pos. 5 | 50 | 1832.031.054 | 0,00 ₺ | Var | ||
|
|
Pan head screw | 54 | 1832.039.200 | 0,00 ₺ | Var | ||
|
|

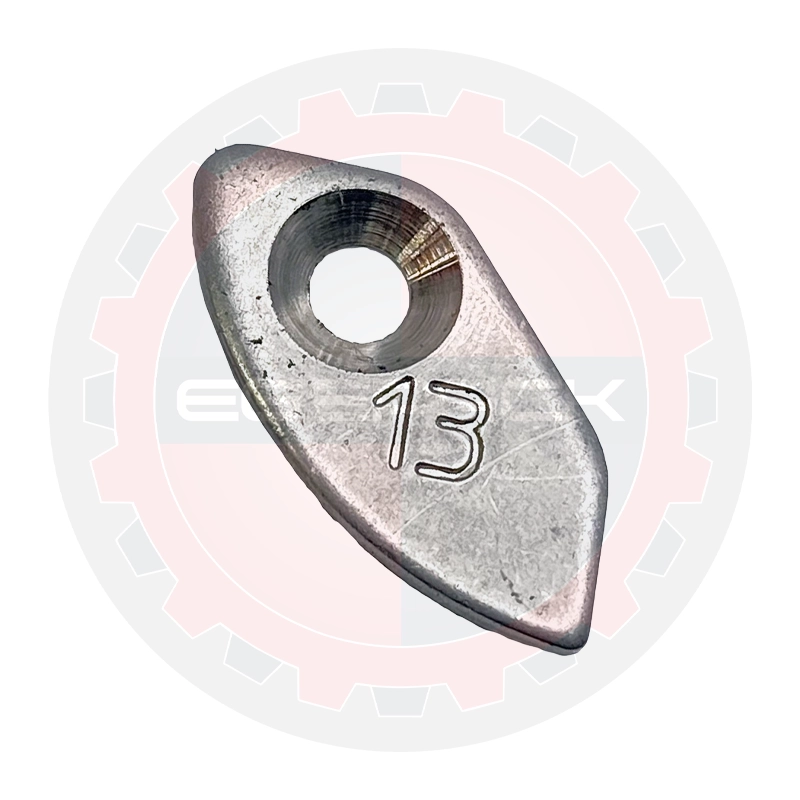

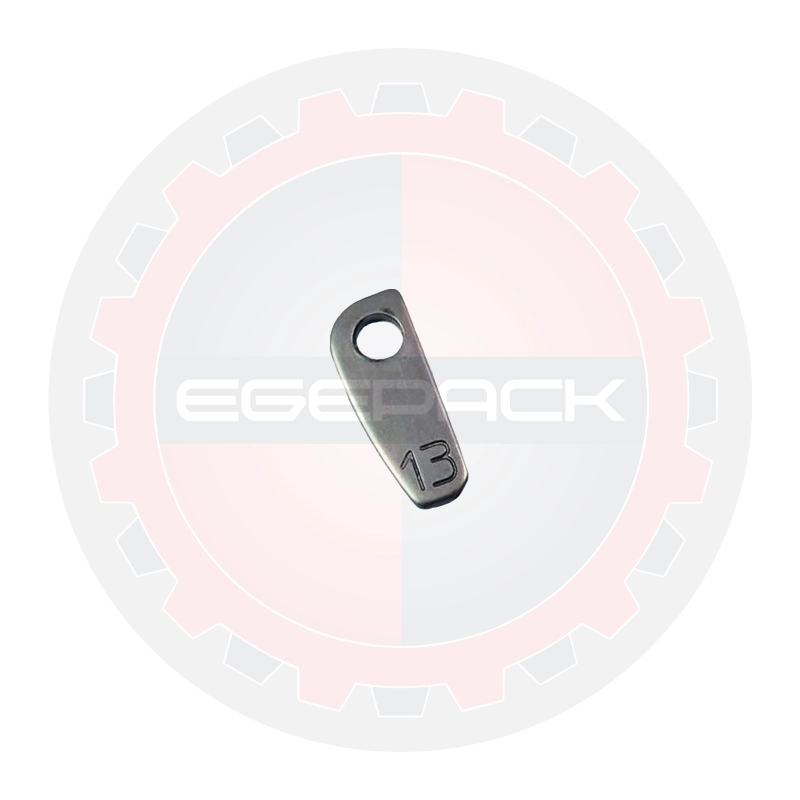

Strap stop, front 13mm | 55 | 1832.031.048 | 0,00 ₺ | Var | ||
|
|

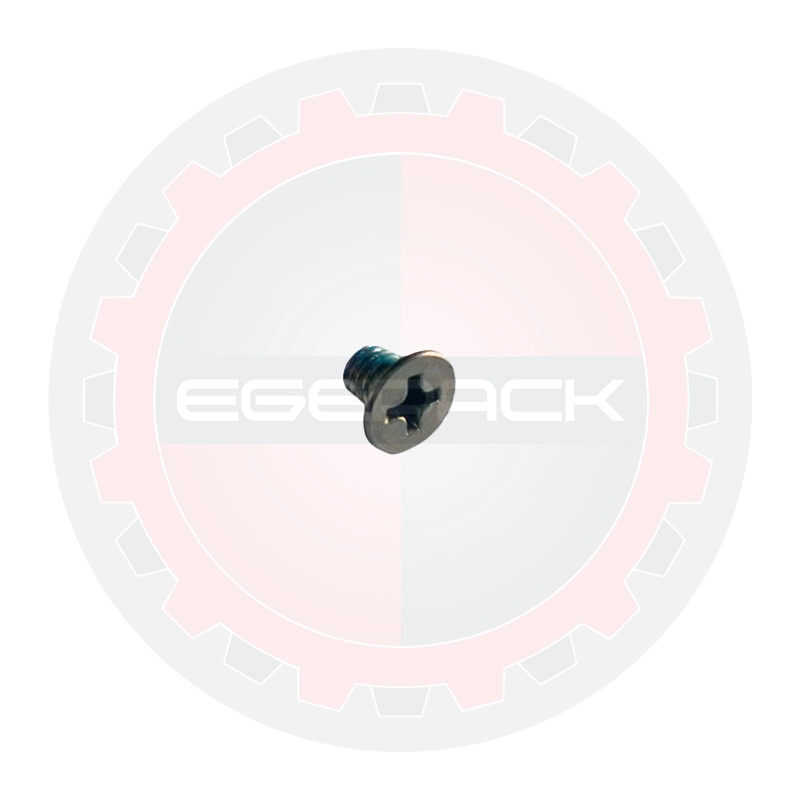

Counter sunk screw Philips Form H M4×6 | 43 | 1911.804.064 | 0,00 ₺ | Var | ||
|
|
Ball Ø9 | 84 | 1925.010.902 | 0,00 ₺ | Var | ||
|
|
Compression spring | 83 | 1821.010.092 | 0,00 ₺ | Var | ||
|
|
Set screw I-6Kt M12×10 | 85 | 1832.039.210 | 0,00 ₺ | Var | ||
|
|

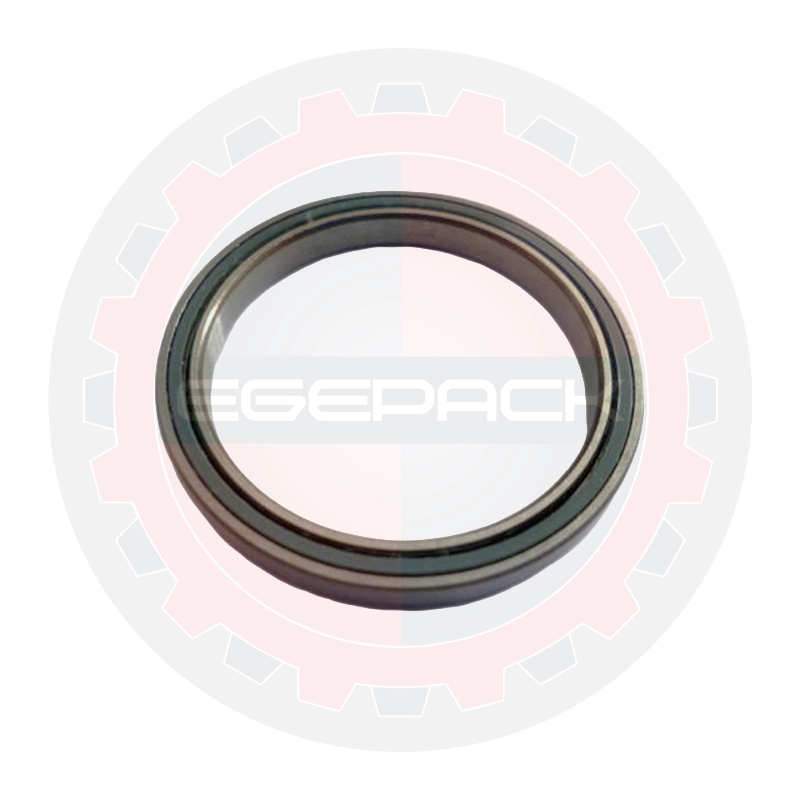

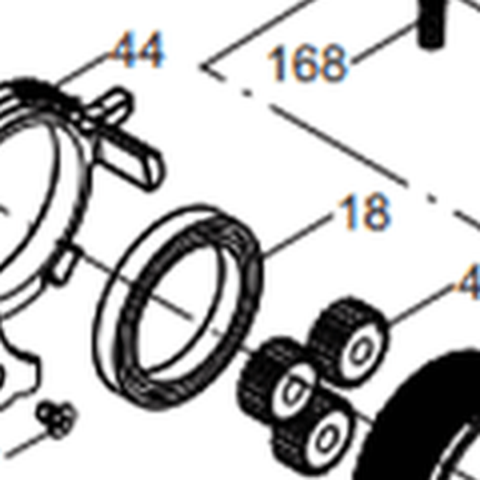

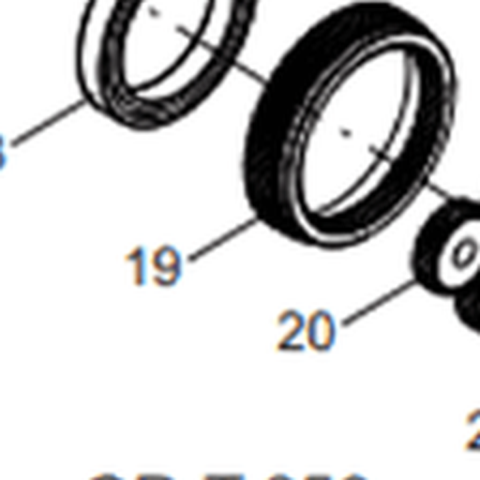

Ball bearing Ø35/47×7 | 18 | 1930.180.356 | 0,00 ₺ | Var | ||
|
|

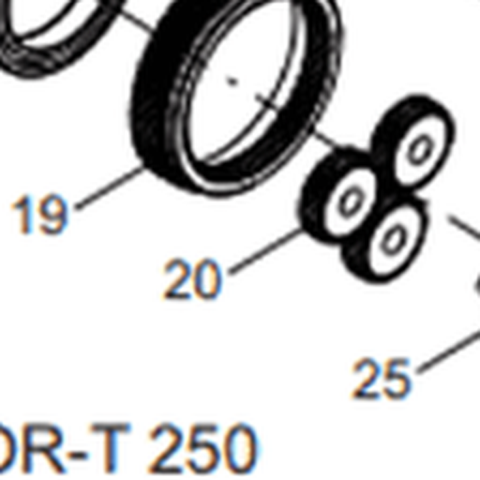

Blocking wheel | 19 | 1832.039.211 | 0,00 ₺ | Var | ||
|
|
Planetary wheel, 1st step | 20 | 1821.060.016 | 0,00 ₺ | Var | ||
|
|

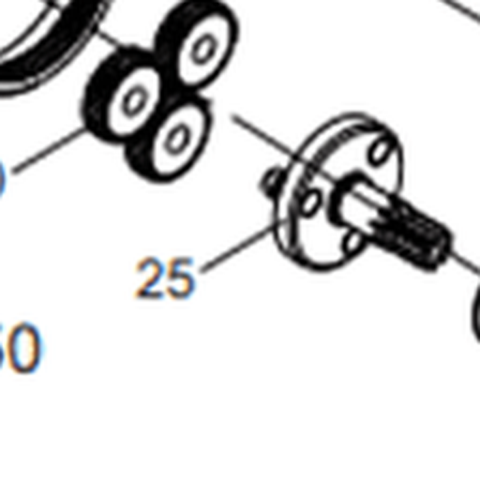

Planetary support complete | 25 | 1832.039.165 | 0,00 ₺ | Var | ||
|
|

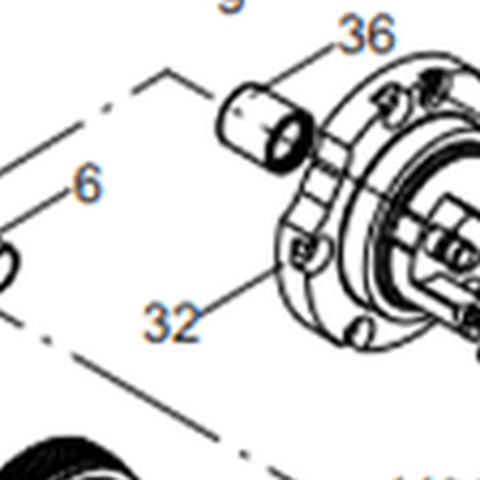

Flange complete, incl. pos. 35,36 | 32 | 1832.039.197 | 0,00 ₺ | Var | ||
|
|
Cylinder screw M4×12 (12.9) | 41 | 1911.004.127 | 0,00 ₺ | Var | ||
|
|
Strap guide 13mm | 42 | 1832.031.051 | 0,00 ₺ | Var | ||
|
|
Counter sunk screw Philips Form H M4×6 | 43 | 1911.804.064 | 0,00 ₺ | Var | ||
|
|
Spacer Ø12/24×0.5 | 28 | 1917.401.125 | 0,00 ₺ | Var | ||
|
|
Ball bearing Ø35/47×7 | 18 | 1930.180.356 | 0,00 ₺ | Var | ||
|
|
Tension wheel asym. | 46 | 1821.047.013 | 0,00 ₺ | Var | ||
|
|

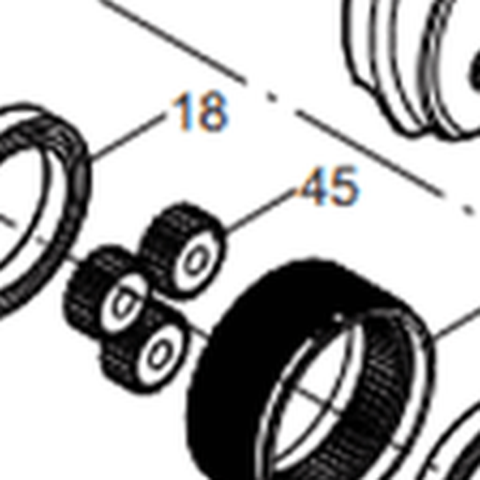

Planetary wheel, 2nd step | 45 | 1821.060.014 | 0,00 ₺ | Var | ||
|
|
Ball bearing Ø35/47×7 | 18 | 1930.180.356 | 0,00 ₺ | Var | ||
|
|

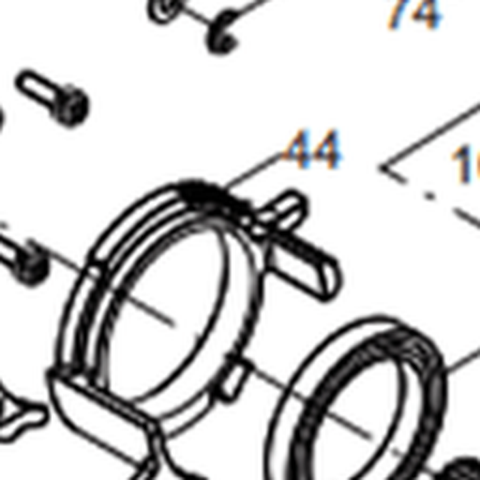

Cam disk | 44 | 1832.039.207 | 0,00 ₺ | Var | ||
|
|
Retaining ring Ø4 | 74 | 1920.104.072 | 0,00 ₺ | Var | ||
|
|
Lock washer Ø3.2 | 40 | 1920.103.062 | 0,00 ₺ | Var | ||
|
|
Spacer disk Ø4/8×0.5 | 39 | 1917.411.045 | 0,00 ₺ | Var | ||
|
|
Slide bearing Ø4/5.5×6 | 35 | 1935.504.060 | 0,00 ₺ | Var | ||
|
|

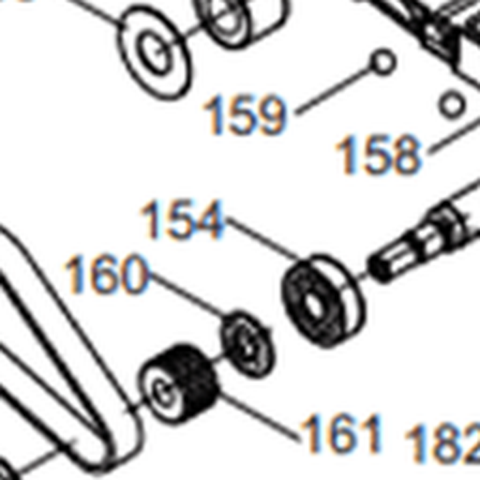

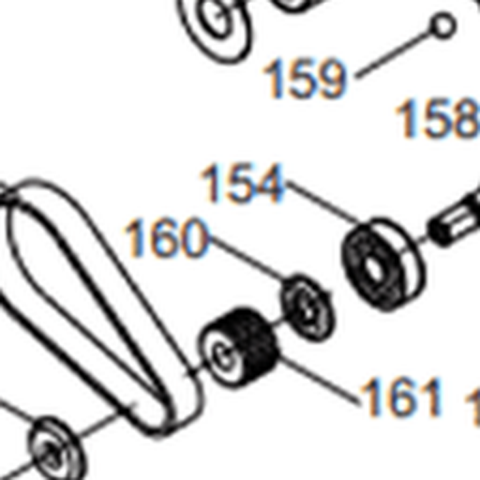

Pinion | 161 | 1832.022.139 | 0,00 ₺ | Var | ||
|
|
Panhead screw M4×6 | 182 | 1912.404.064 | 0,00 ₺ | Var | ||
|
|
Strap guide rear 13mm | 181 | 1832.042.043 | 0,00 ₺ | Var | ||
|
|
Supporting disk | 160 | 1832.022.165 | 0,00 ₺ | Var | ||
|
|
Ball bearing Ø7/19×6 | 154 | 1930.100.072 | 0,00 ₺ | Var | ||
|
|

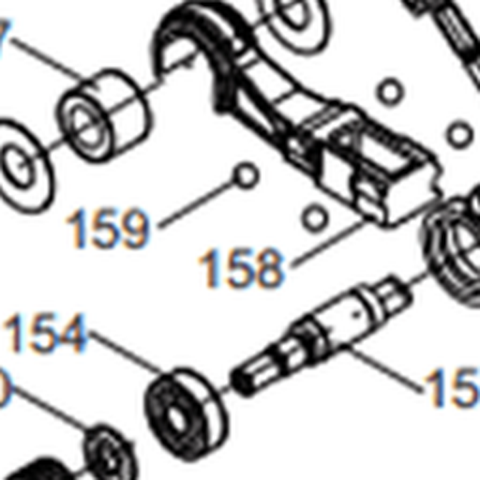

Welding shoe | 158 | 1832.022.169 | 0,00 ₺ | Var | ||
|
|

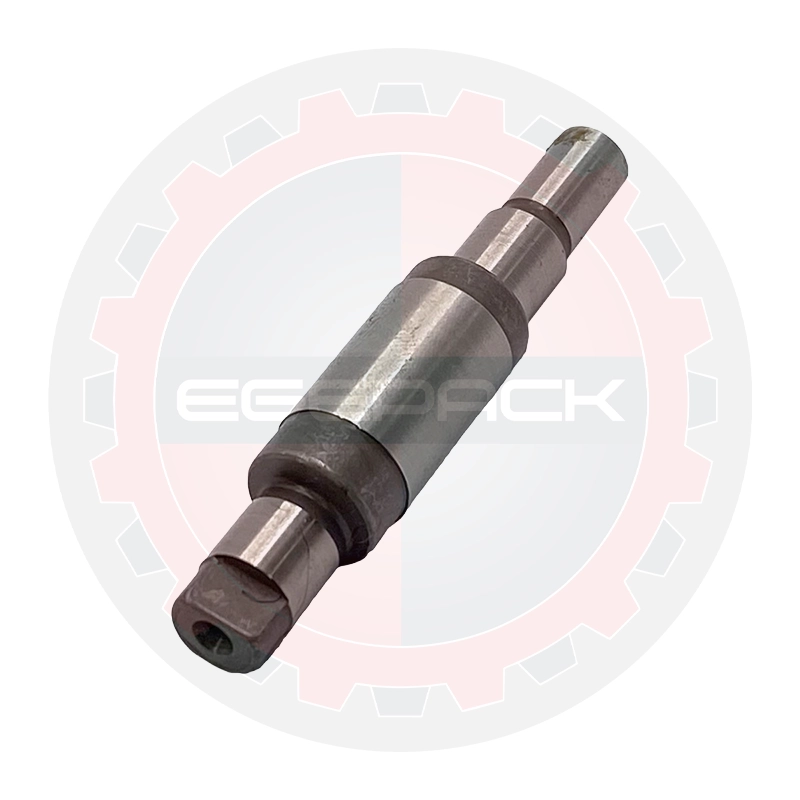

Excentric shaft | 155 | 1832.022.164 | 0,00 ₺ | Var | ||
|
|
Upper linkage | 148 | 1832.022.182 | 0,00 ₺ | Var | ||
|
|
Bolt | 144 | 1832.022.174 | 0,00 ₺ | Var | ||
|
|

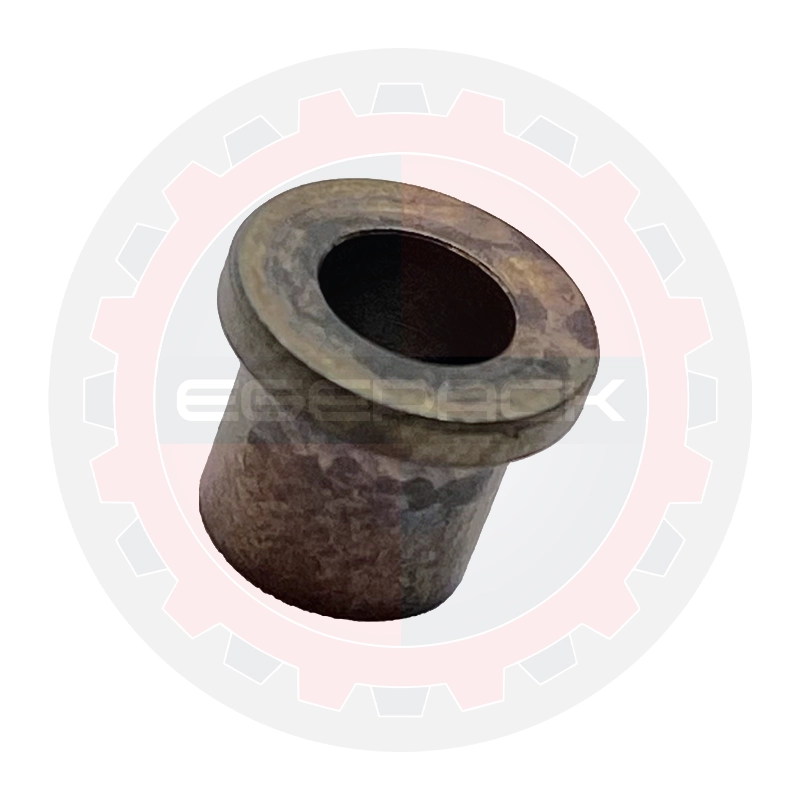

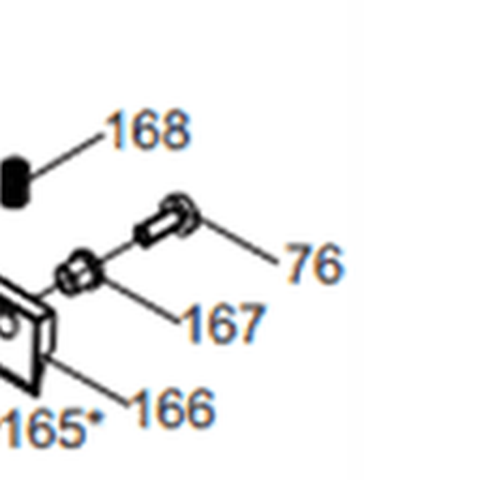

Flanged bushing | 167 | 1832.022.049 | 0,00 ₺ | Var | ||
|
|
Knife | 166 | 1821.209.019 | 0,00 ₺ | Var | ||
|
|
Bolt | 165 | 1832.022.173 | 0,00 ₺ | Var | ||
|
|
Swivel bearing | 153 | 1832.022.171 | 0,00 ₺ | Var | ||
|
|

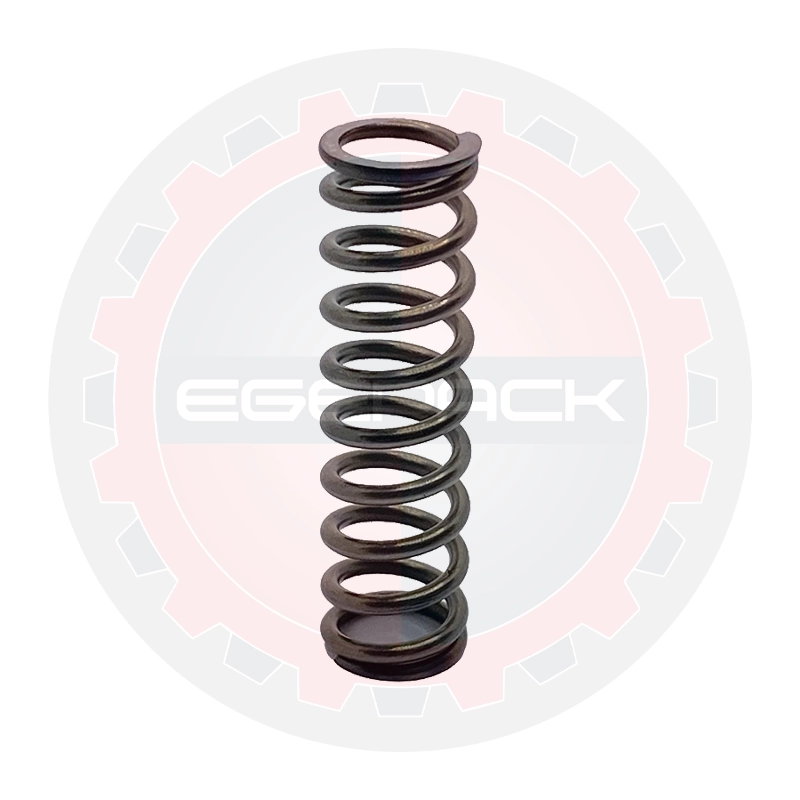

Compression spring Ø4.1×0.8×24 | 169 | 1821.010.020 | 0,00 ₺ | Var | ||
|
|
Bolt | 165 | 1832.022.173 | 0,00 ₺ | Var | ||
|
|
Lever strap guide complete | 172 | 1832.042.044 | 0,00 ₺ | Var | ||
|
|

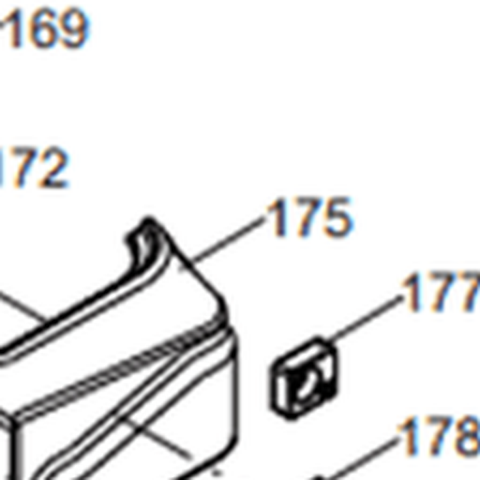

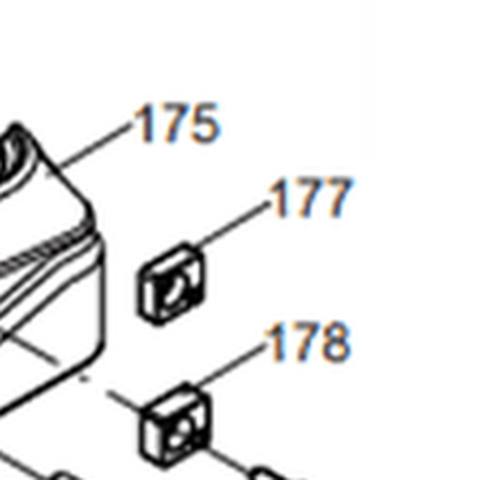

Side cover | 175 | 1832.011.168 | 0,00 ₺ | Var | ||
|
|
Rear inner guide 16mm | 177 | 1832.041.018 | 0,00 ₺ | Var | ||
|
|
Rear inner guide 13mm | 178 | 1832.041.019 | 0,00 ₺ | Var | ||
|
|
Cylinder screw M4×12 (12.9) | 41 | 1911.004.127 | 0,00 ₺ | Var | ||
|
|
Cylinder screw M4×12 (12.9) | 41 | 1911.004.127 | 0,00 ₺ | Var | ||
|
|
Bearing bolt | 176 | 1821.035.007 | 0,00 ₺ | Var | ||
|
|

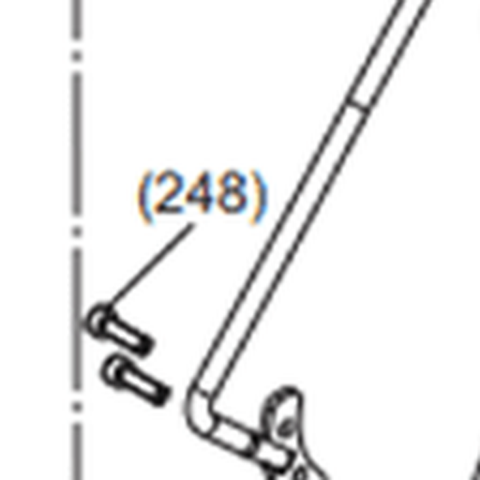

Cylinder screw M5×16 | 248 | 1911.005.168 | 0,00 ₺ | Var | ||
|
|
Cylinder screw M4×20 | 247 | 1911.004.208 | 0,00 ₺ | Var | ||
|
|

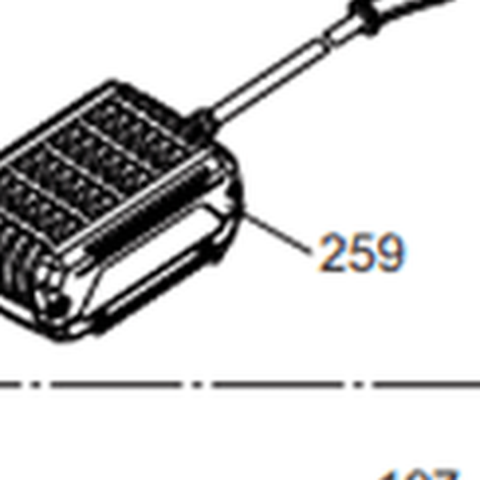

Mains Connector 230V EU | 259 | 2188.011 | 0,00 ₺ | Var | ||
|
|
Mains Connector 115V US | 259 | 2188.012 | 0,00 ₺ | Var | ||
|
|

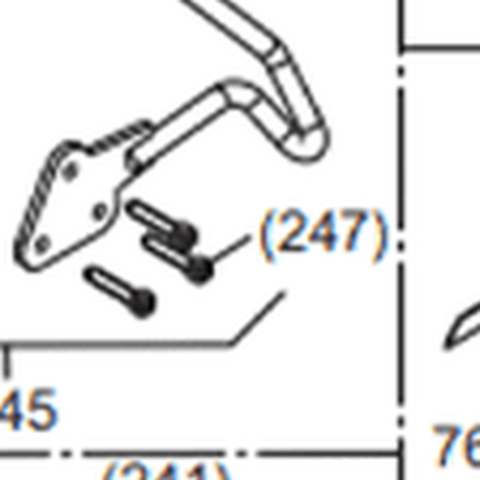

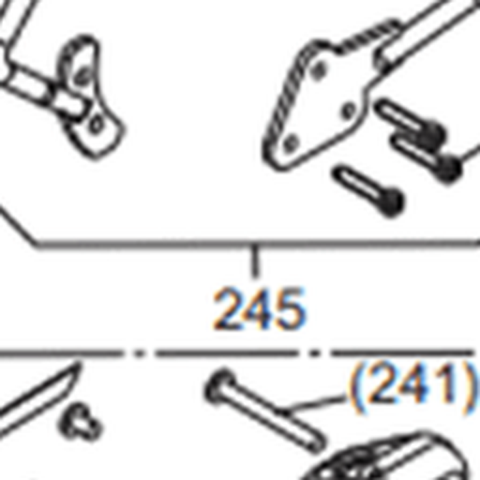

Option: suspension bow-set | 245 | 2189.001 | 0,00 ₺ | Var | ||
|
|

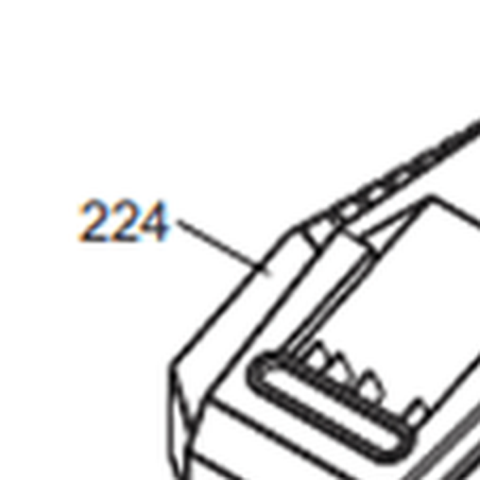

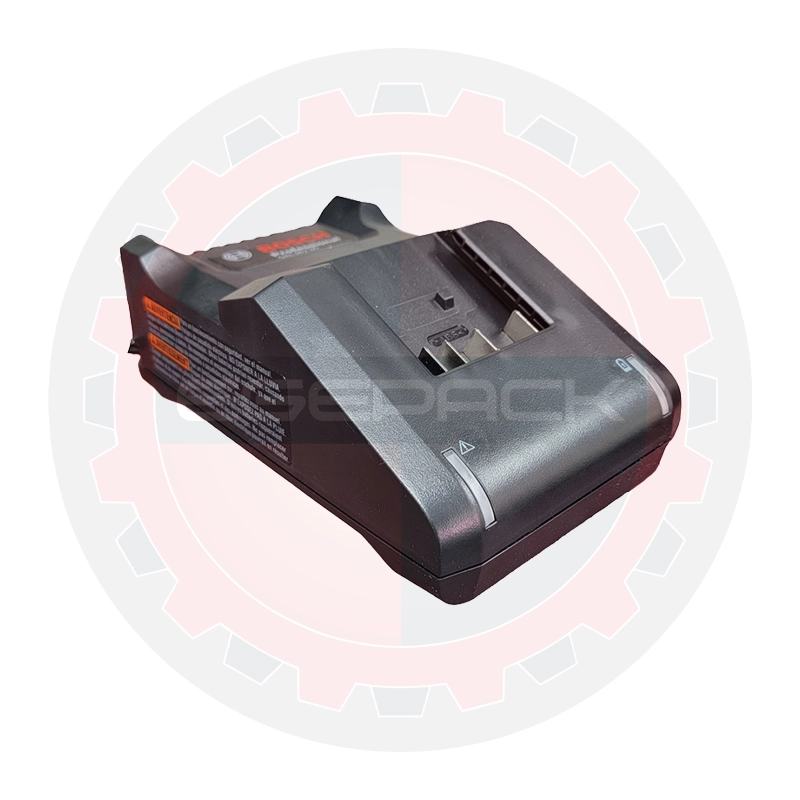

Battery charger AL 1860CV-EU | 224 | 2188.001 | 0,00 ₺ | Var | ||
|
|
Battery charger AL 1860CV-US | 224 | 2188.002 | 0,00 ₺ | Var | ||
|
|
Battery charger AL 1860CV-JP | 224 | 2188.003 | 0,00 ₺ | Var | ||
|
|
PT-Screw KA 35×30 | 241 | 1914.635.300 | 0,00 ₺ | Var | ||
|
|
PT-Screw KA 35×14 | 242 | 1914.635.140 | 0,00 ₺ | Var | ||
|
|
Option: Protection cover | 239 | 2189.003 | 0,00 ₺ | Var | ||
|
|

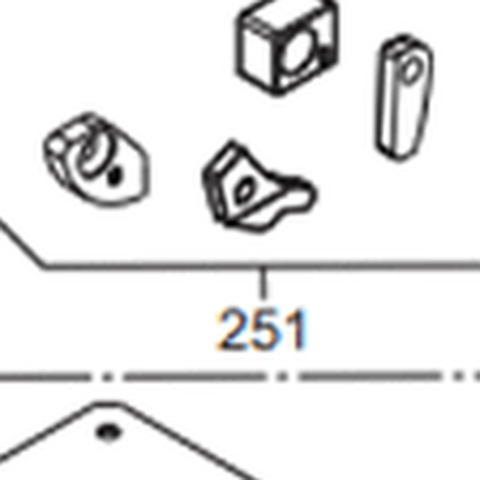

Option: Strap guide set 9mm | 251 | 2189.004 | 0,00 ₺ | Var | ||
|
|
Counter sunk screw Philips Form H M4×6 | 236 | 1911.804.064 | 0,00 ₺ | Var | ||
|
|

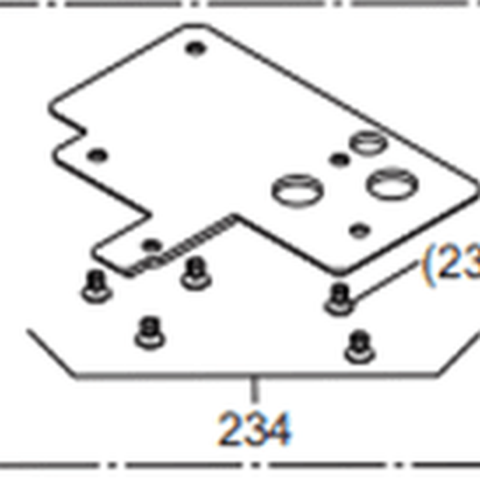

Option: protection plate-set | 234 | 2189.002 | 0,00 ₺ | Var | ||
|
|
Panhead screw M4×10 | 76 | 1912.404.104 | 0,00 ₺ | Var | ||
|
|

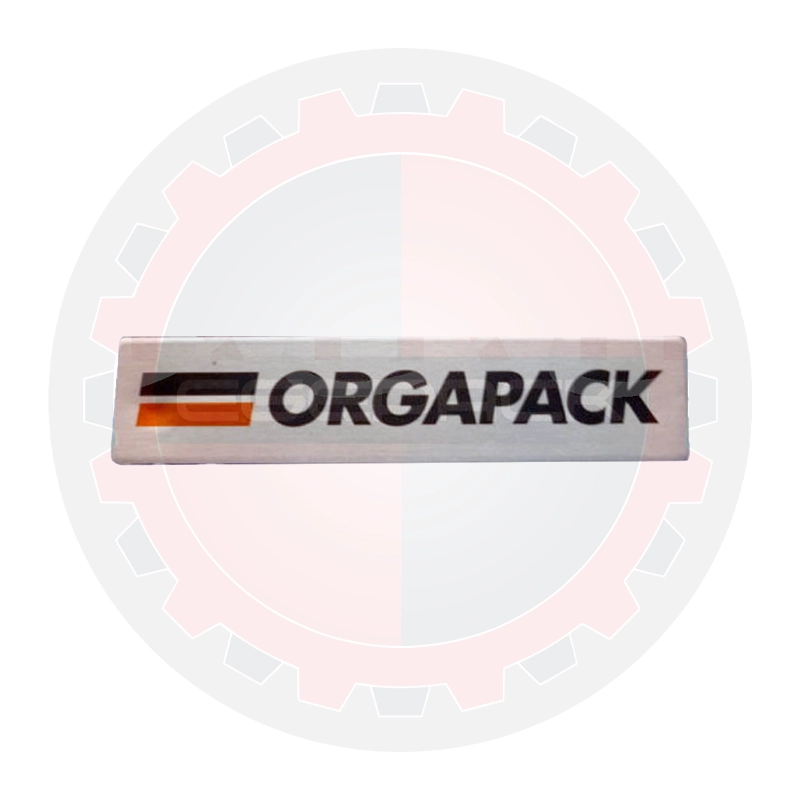

Name plate 10×45mm | 192 | 1821.090.021 | 0,00 ₺ | Var | ||
|
|
PT-Screw KA 35×20 | 197 | 1914.635.200 | 0,00 ₺ | Var | ||
|
|

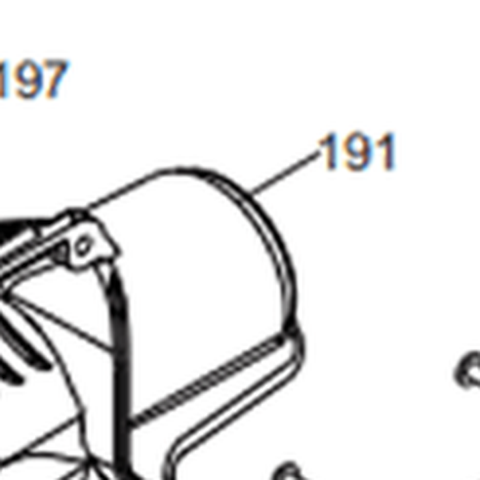

Motor cover complete | 191 | 1832.011.201 | 0,00 ₺ | Var | ||
|
|

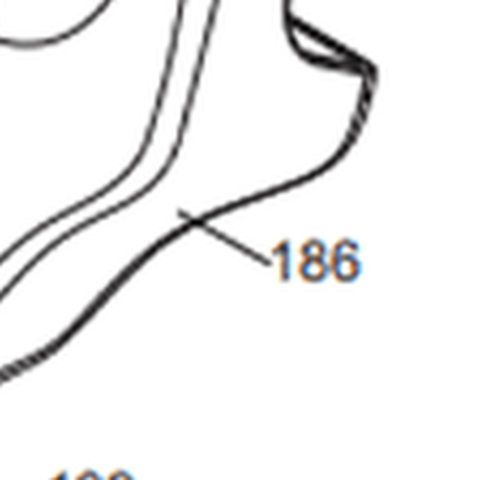

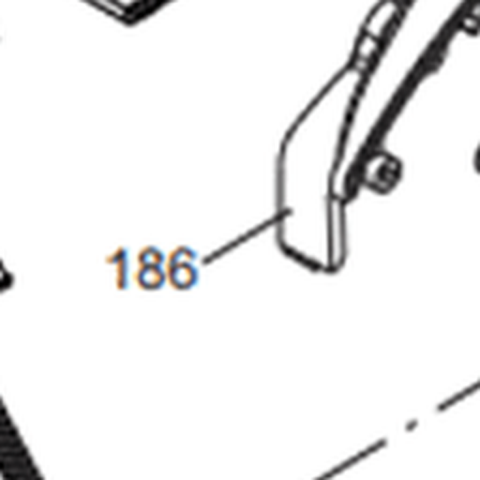

Housing parts, blue | 186 | 1832.011.198 | 0,00 ₺ | Var | ||
|
|

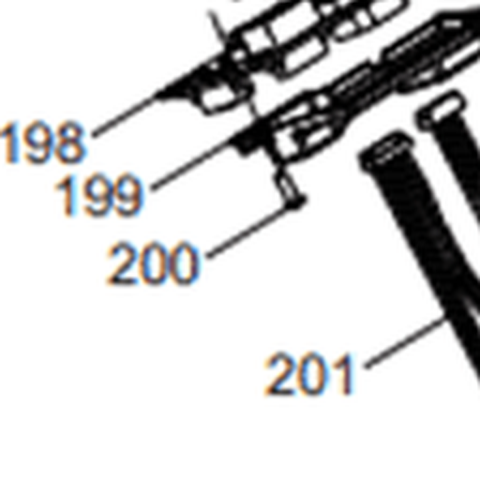

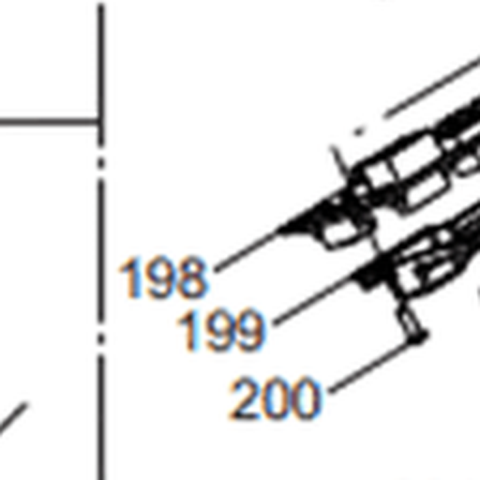

Printed circuit board | 198 | 1821.152.069 | 0,00 ₺ | Var | ||
|
|
Protection cover pcb | 199 | 1832.061.016 | 0,00 ₺ | Var | ||
|
|
PT-Screw KA 22×6 | 200 | 1914.622.062 | 0,00 ₺ | Var | ||
|
|

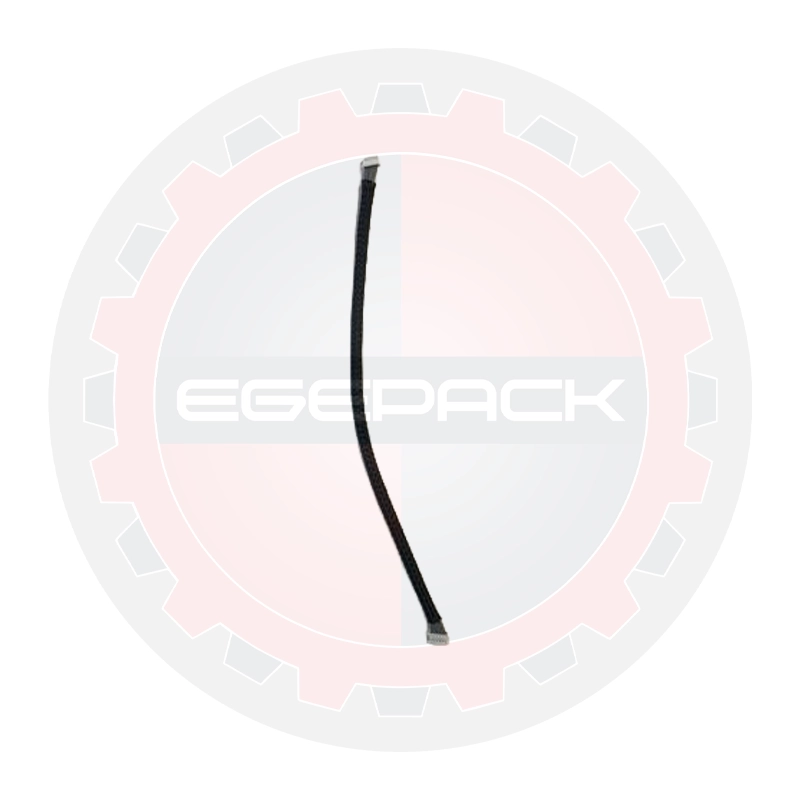

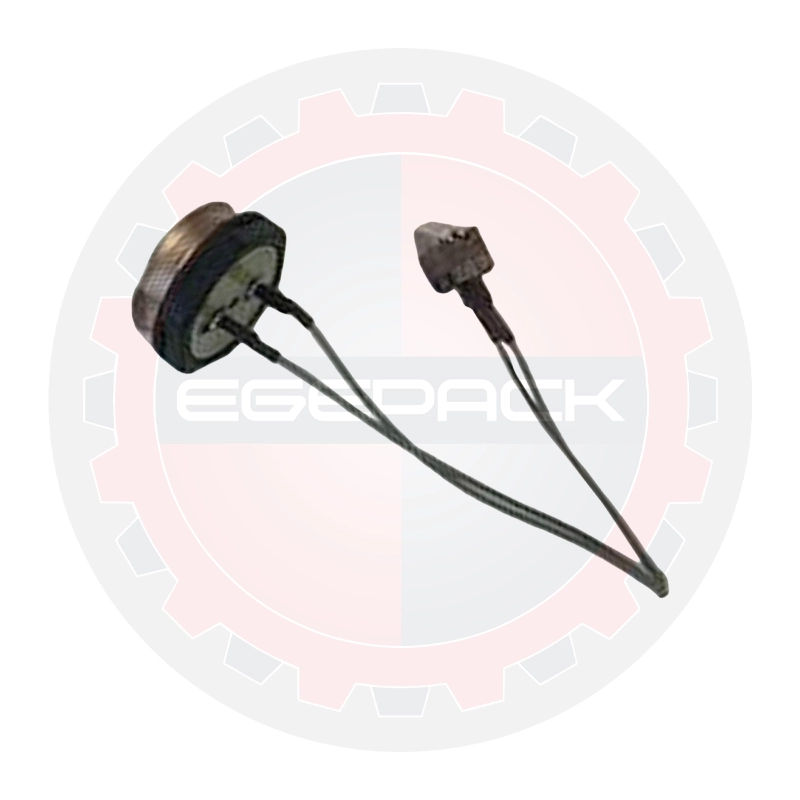

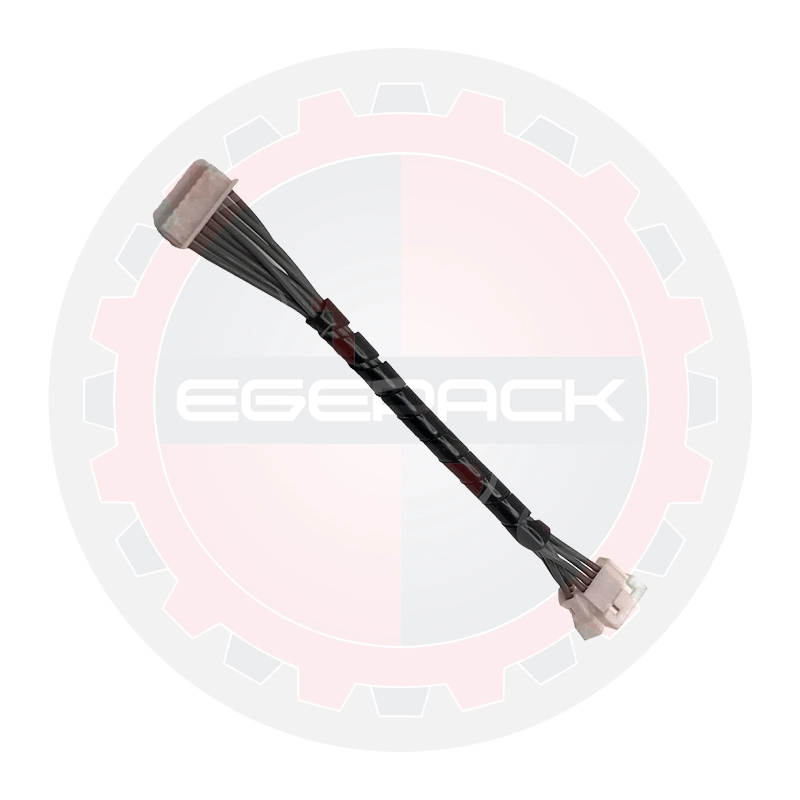

Intermediate cable | 201 | 1821.151.015 | 0,00 ₺ | Var | ||
|
|
Signal cable | 202 | 1821.151.018 | 0,00 ₺ | Var | ||
|
|
PT-Screw KA 35×20 | 197 | 1914.635.200 | 0,00 ₺ | Var | ||
|
|
Gasket 10×10×15 | 203 | 1821.076.018 | 0,00 ₺ | Var | ||
|
|

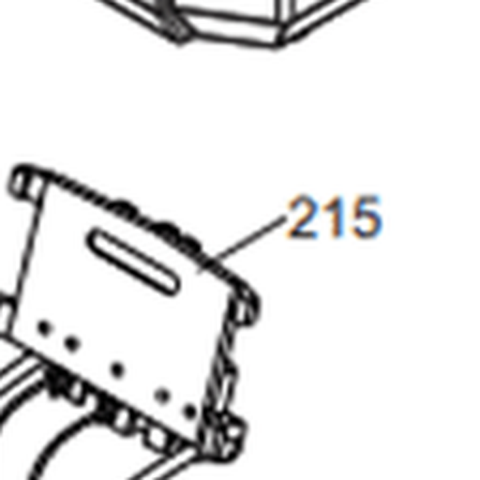

Contact plate 14.4V | 215 | 1821.152..074 | 0,00 ₺ | Var | ||
|
|
Welding cables | 77 | 1821.151.017 | 0,00 ₺ | Var | ||
|
|
Printed circuit board complete | 212 | 1821.152.072 | 0,00 ₺ | Var | ||
|
|
Compression spring Ø5×0.6×14 | 206 | 1821.010.054 | 0,00 ₺ | Var | ||
|
|
Protection plate | 204 | 1832.011.181 | 0,00 ₺ | Var | ||
|
|
Compression spring Ø4.2×0.8×11 | 168 | 1821.010.053 | 0,00 ₺ | Var | ||
|
|
Switch button | 205 | 1832.011.184 | 0,00 ₺ | Var | ||
|
|
Welding cables | 77 | 1821.151.017 | 0,00 ₺ | Var | ||
|
|
Housing parts, blue | 186 | 1832.011.198 | 0,00 ₺ | Var | ||
|
|

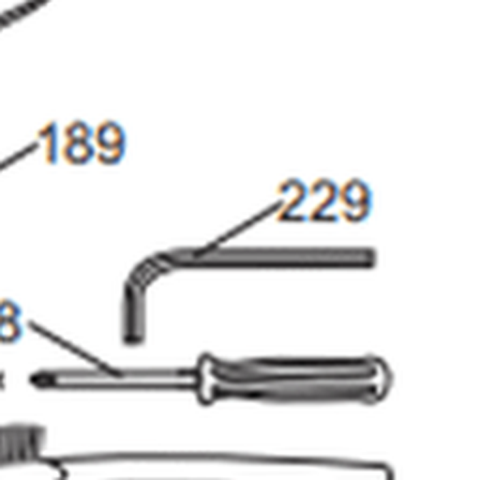

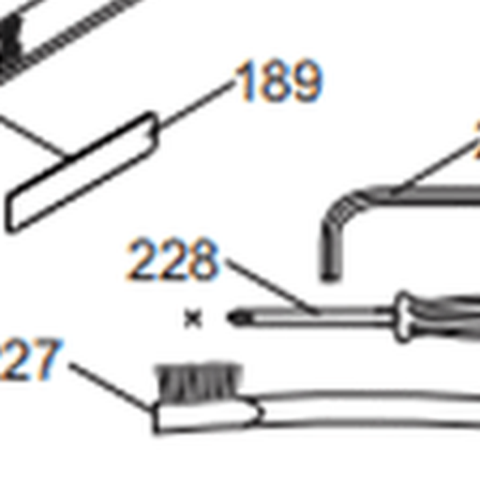

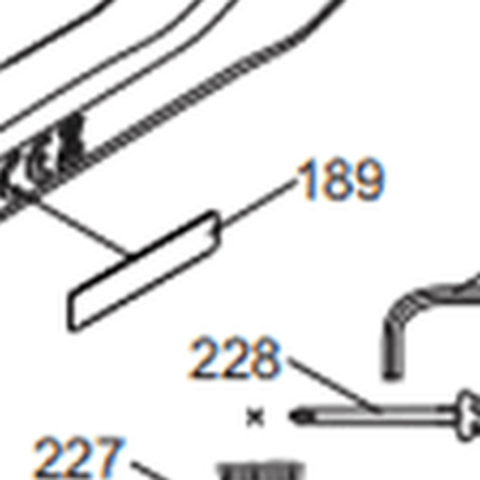

Type plate 10×45mm | 189 | 1821.091.052 | 0,00 ₺ | Var | ||
|
|
PT-Screw KA 35×20 | 197 | 1914.635.200 | 0,00 ₺ | Var | ||
|
|

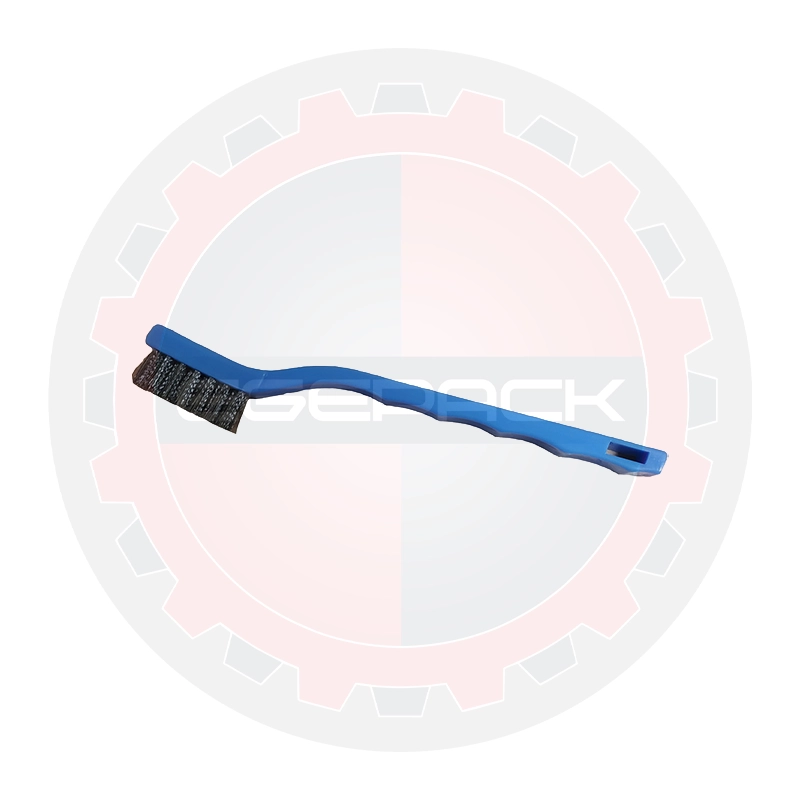

Wire brush (zeintra / 21242) | 227 | 1821.901.004 | 0,00 ₺ | Var | ||
|
|
Screw driver, crosstip | 228 | 1821.901.006 | 0,00 ₺ | Var | ||
|
|
Angle-wrench, hexagon | 229 | 1821.901.007 | 0,00 ₺ | Var | ||
|
|

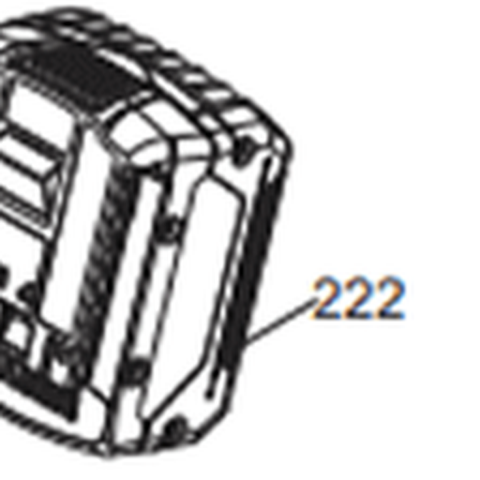

Battery 14.4V / 2.6 Ah Li-Ion | 222 | 2187.001 | 0,00 ₺ | Var | ||
|
|
Battery 14.4V / 2.6 Ah Li-Ion, US | 222 | 2187.002 | 0,00 ₺ | Var |
