Yedek Parça Seçenekleri
| Görsel | Part Name | Pos No | Part Number | Fiyat | Stok | Adet | Aksiyon |
|---|---|---|---|---|---|---|---|
|

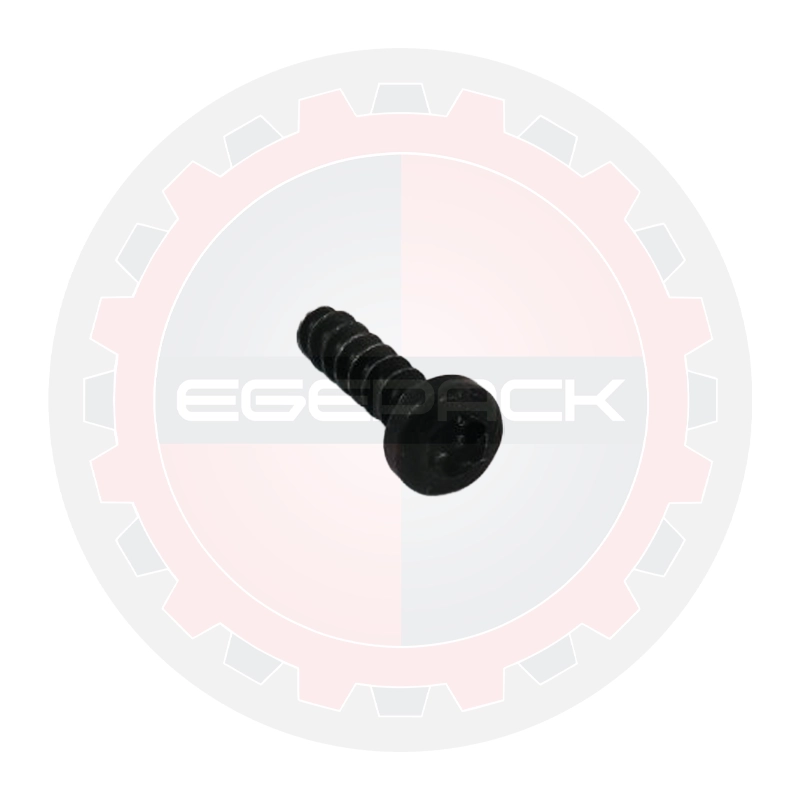

Pan head PT-screw Torx | 197 | 1914.840.162 | 0,00 ₺ | Var | ||
|
|

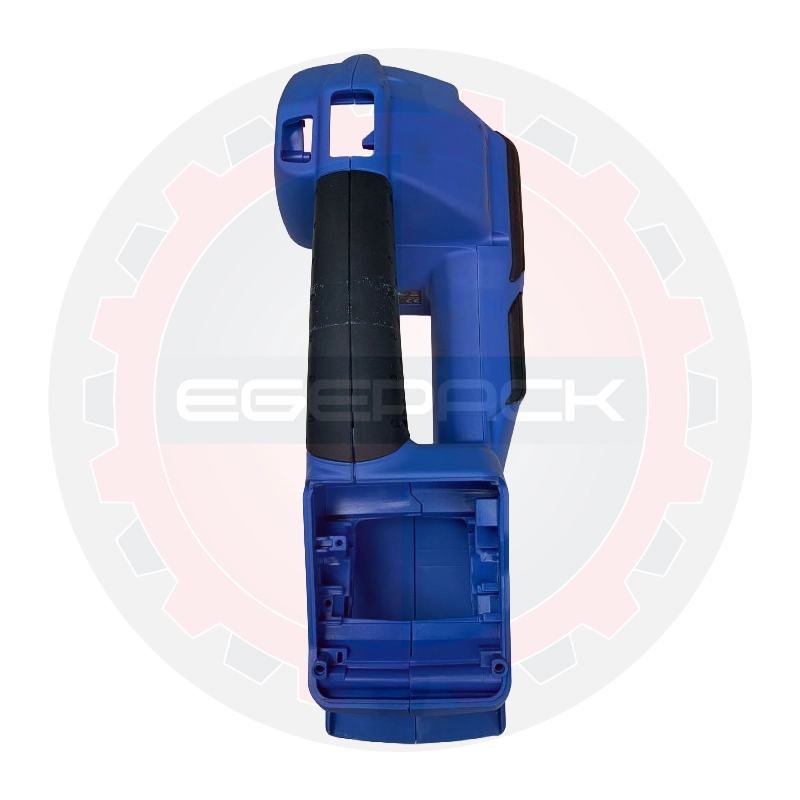

Housing parts set | 186 | 1832.011.300 | 0,00 ₺ | Var | ||
|
|

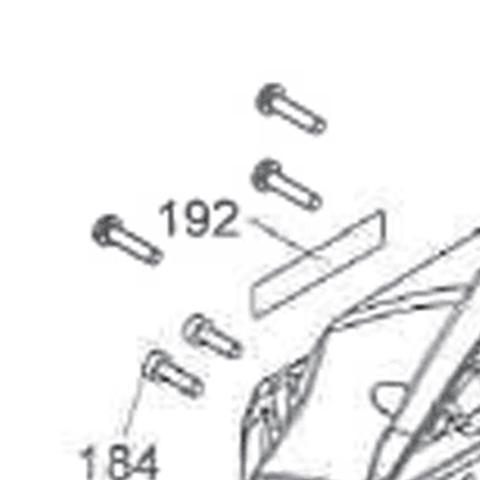

Name plate | 192 | 1821.090.021 | 0,00 ₺ | Var | ||
|
|
Cylinder head screw Torx | 184 | 1913.904.125 | 0,00 ₺ | Var | ||
|
|
Pan head PT-screw Torx KA 40×18 | 246 | 1914.840.182 | 0,00 ₺ | Var | ||
|
|

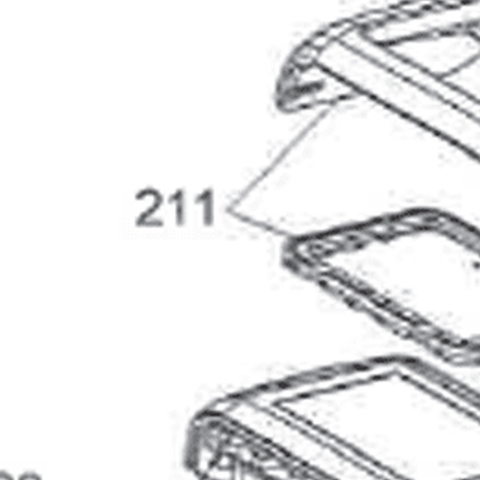

Protection cover set | 211 | 1832.011.399 | 0,00 ₺ | Var | ||
|
|
Cable harness rocker lever | 103 | 1821.151.050 | 0,00 ₺ | Var | ||
|
|
Cable clamp | 222 | 1821.151.056 | 0,00 ₺ | Var | ||
|
|
Battery 18V / 2.0Ah Li-Ion EU | 224 | 2187.011 | 0,00 ₺ | Var | ||
|
|
Battery 18V / 2.0Ah Li-Ion US BAT 612 | 224 | 2187.012 | 0,00 ₺ | Var | ||
|
|

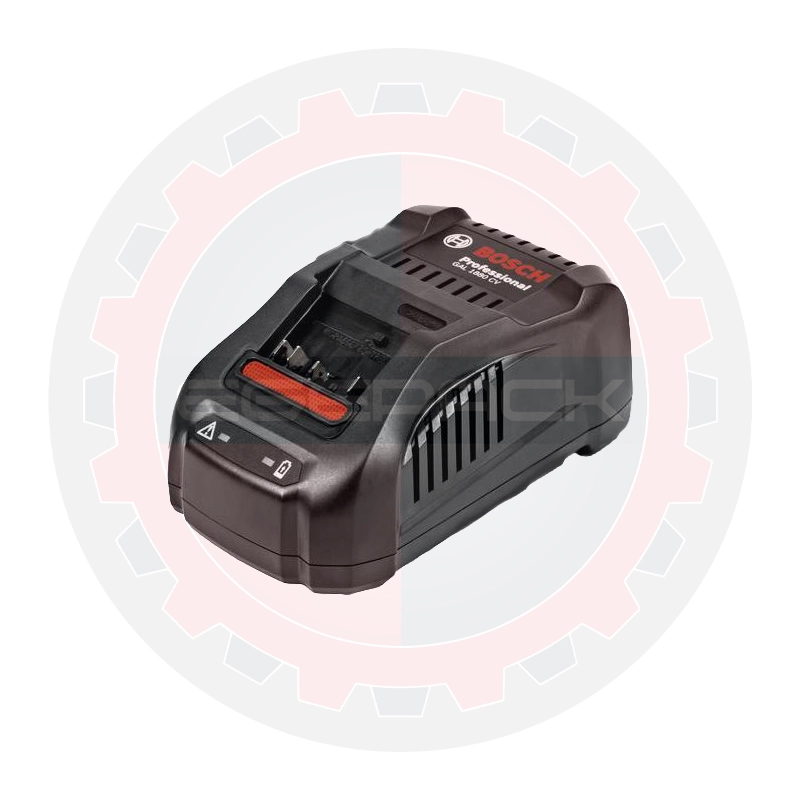

Battery charger AL 1880 CV EU | 227 | 2188.02 | 0,00 ₺ | Var | ||
|
|
Battery charger BC 1880 CV US | 227 | 2188.021 | 0,00 ₺ | Var | ||
|
|
Battery charger AL 1880 CV JP | 227 | 2188.022 | 0,00 ₺ | Var | ||
|
|
Battery charger AL 1880 CV AU | 227 | 2188.023 | 0,00 ₺ | Var | ||
|
|

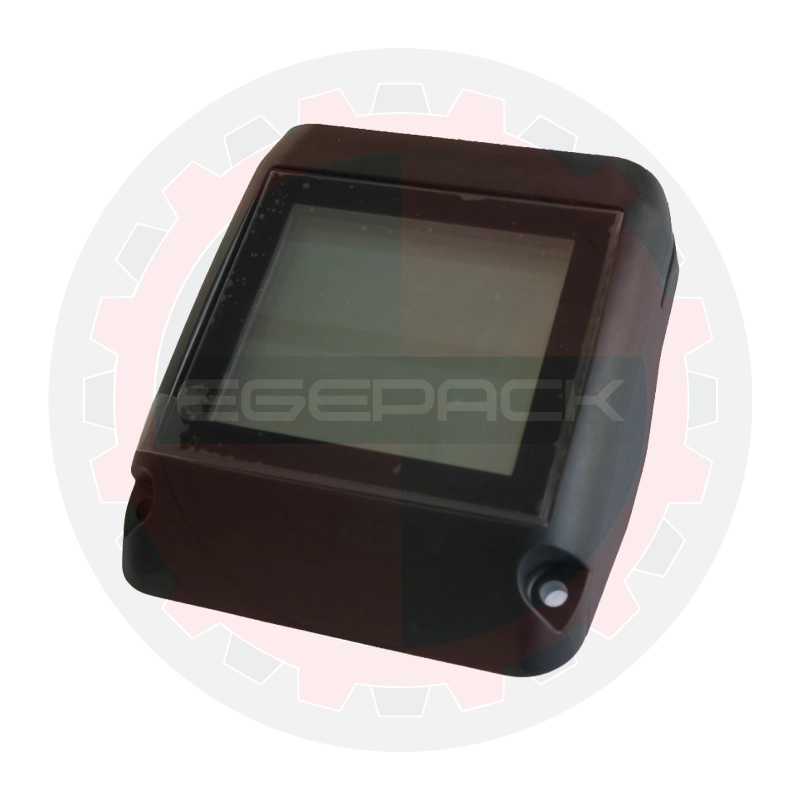

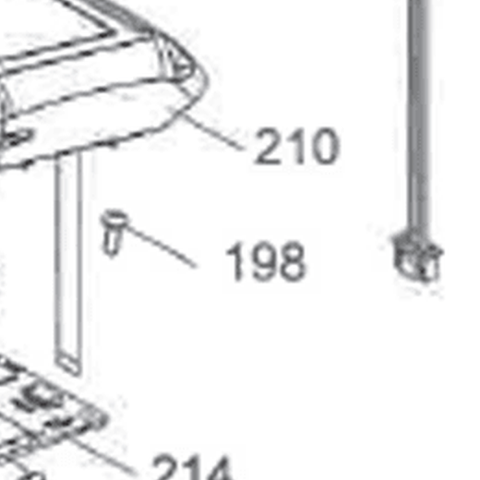

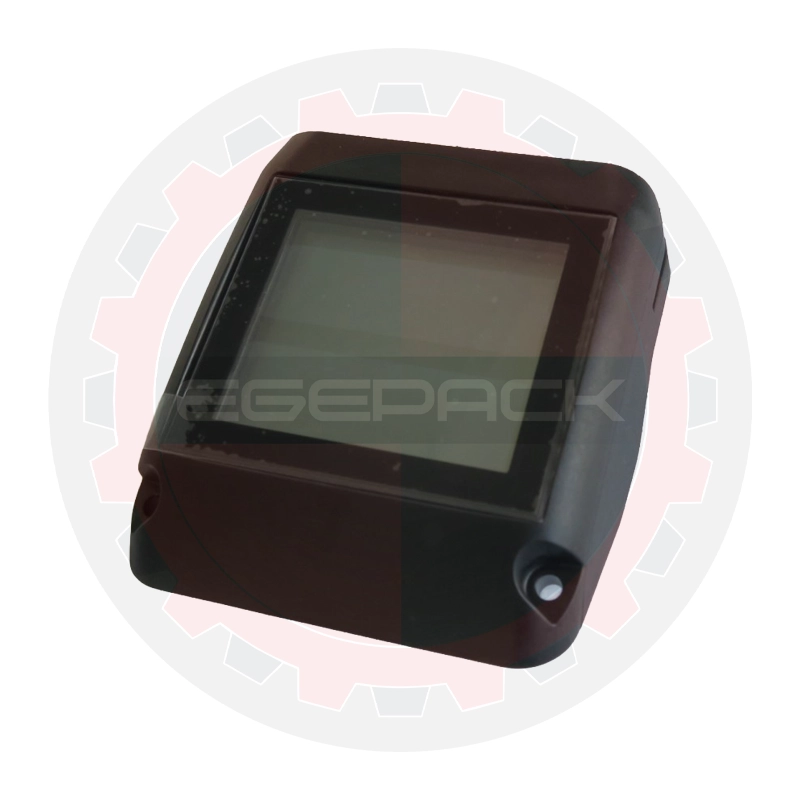

LCD Operating unit EU/US | 210 | 1832.011.317 | 0,00 ₺ | Var | ||
|
|
LCD Operating unit CN | 210 | 1832.011.357 | 0,00 ₺ | Var | ||
|
|
Pan head PT-screw Torx | 198 | 1914.830.088 | 0,00 ₺ | Var | ||
|
|
Contact plate clamp | 209 | 1832.011.319 | 0,00 ₺ | Var | ||
|
|
Leaf spring | 207 | 1821.013.006 | 0,00 ₺ | Var | ||
|
|

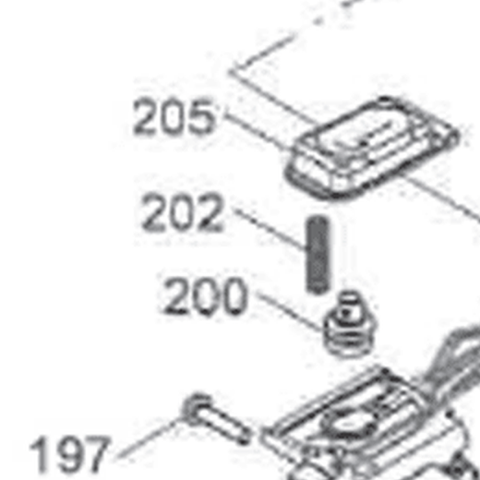

Switch button | 205 | 1832.011.328 | 0,00 ₺ | Var | ||
|
|

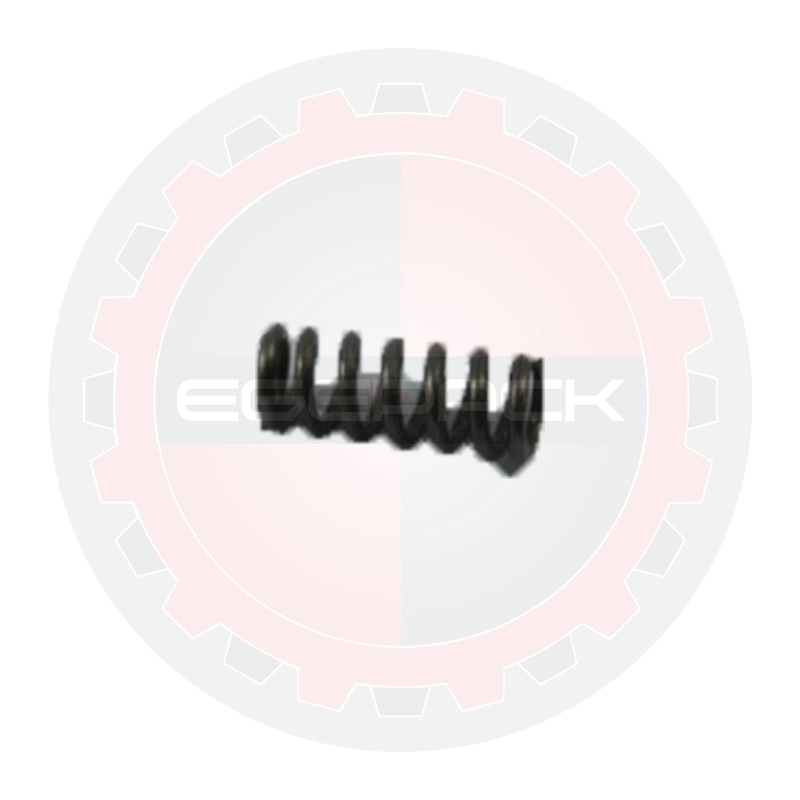

Compression spring | 202 | 1821.010.149 | 0,00 ₺ | Var | ||
|
|
Actuator | 200 | 1832.011.329 | 0,00 ₺ | Var | ||
|
|
Pan head PT-screw Torx | 197 | 1914.840.162 | 0,00 ₺ | Var | ||
|
|

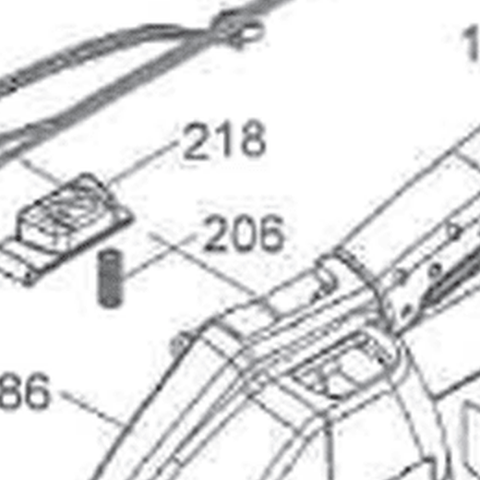

Welding button | 218 | 1832.011.322 | 0,00 ₺ | Var | ||
|
|
Cable harness housing | 105 | 1821.151.052 | 0,00 ₺ | Var | ||
|
|
Compression spring | 206 | 1821.010.054 | 0,00 ₺ | Var | ||
|
|
Housing parts set | 186 | 1832.011.300 | 0,00 ₺ | Var | ||
|
|
Slide bearing | 62 | 1935.505.050 | 0,00 ₺ | Var | ||
|
|
Bearing bolt | 61 | 1832.039.267 | 0,00 ₺ | Var | ||
|
|
Threaded bushing | 58 | 1832.039.266 | 0,00 ₺ | Var | ||
|
|
Sleeve | 80 | 1832.022.272 | 0,00 ₺ | Var | ||
|
|

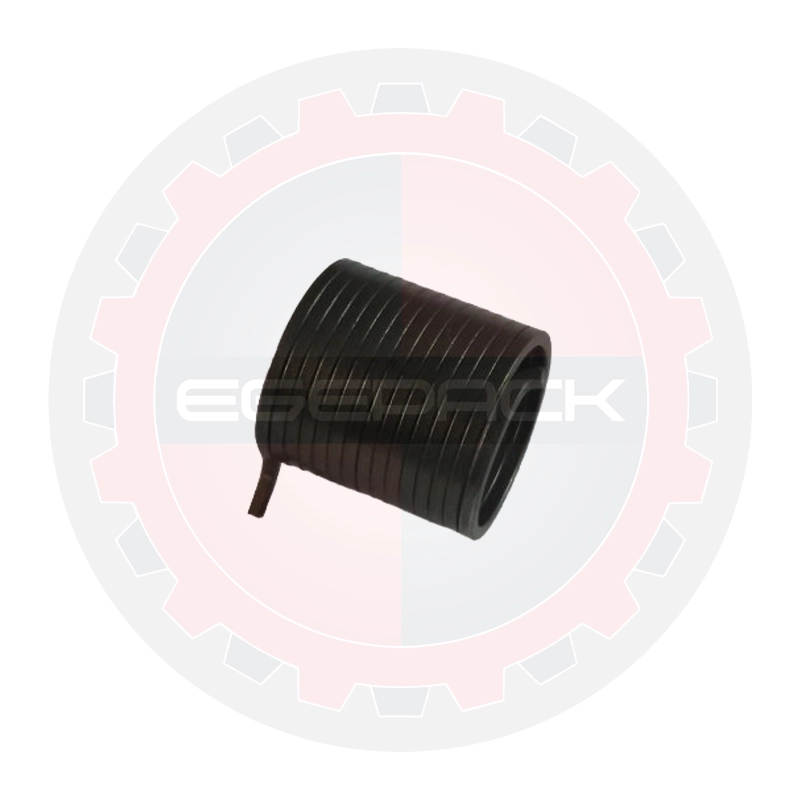

Wrap spring | 59 | 1821.012.037 | 0,00 ₺ | Var | ||
|
|
Clutch shaft | 57 | 1832.039.263 | 0,00 ₺ | Var | ||
|
|

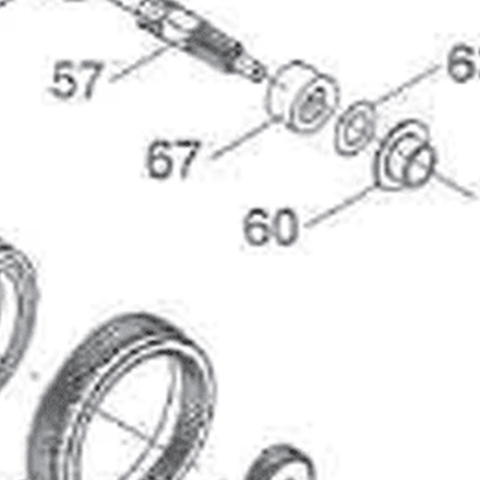

Blocking roller | 67 | 1832.039.265 | 0,00 ₺ | Var | ||
|
|
Flanged bushing | 60 | 1821.020.192 | 0,00 ₺ | Var | ||
|
|
Shim ring | 63 | 1917.411.083 | 0,00 ₺ | Var | ||
|
|
Retaining ring | 66 | 1920.108.102 | 0,00 ₺ | Var | ||
|
|

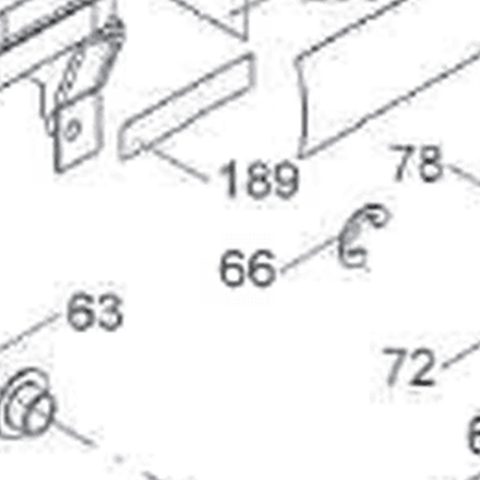

Type plate | 189 | 1821.091.085 | 0,00 ₺ | Var | ||
|
|
Retaining ring | 78 | 1920.104.072 | 0,00 ₺ | Var | ||
|
|

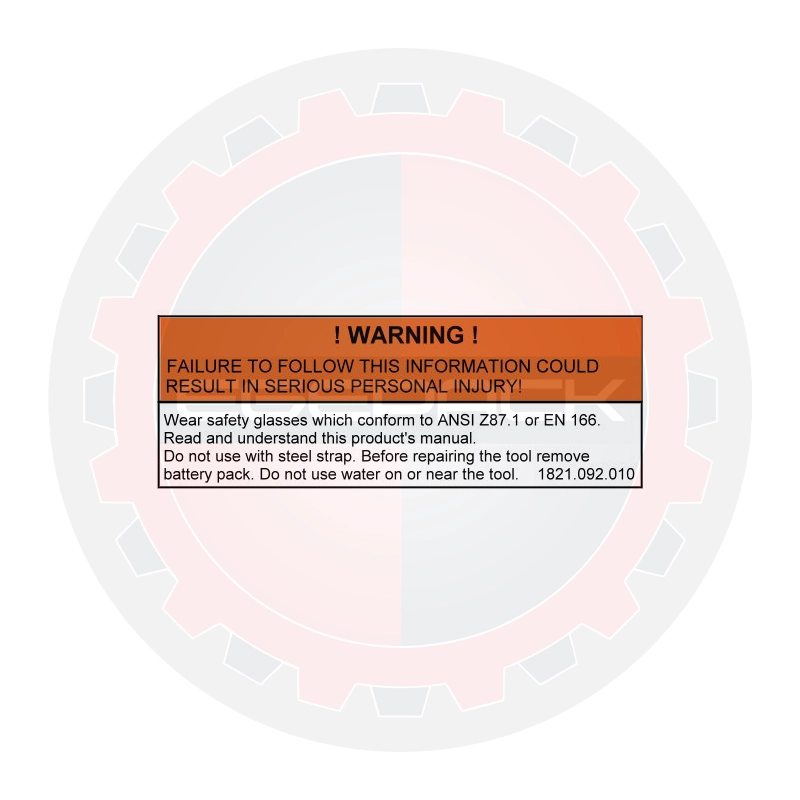

Warning label | 193 | 1821.092.010 | 0,00 ₺ | Var | ||
|
|

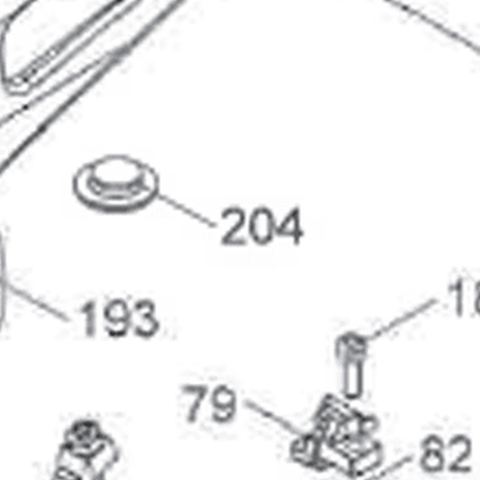

Protection plate | 204 | 1832.011.181 | 0,00 ₺ | Var | ||
|
|
Cylinder head screw Torx | 184 | 1913.904.125 | 0,00 ₺ | Var | ||
|
|

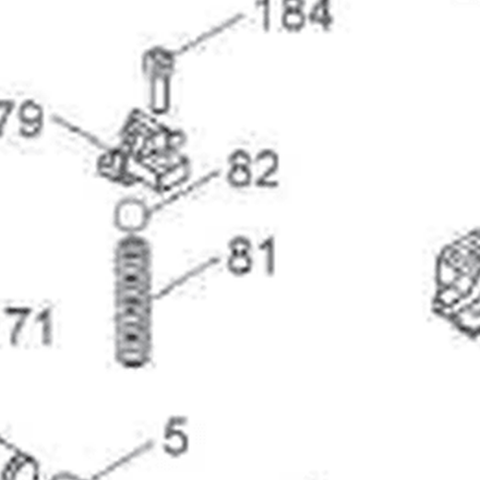

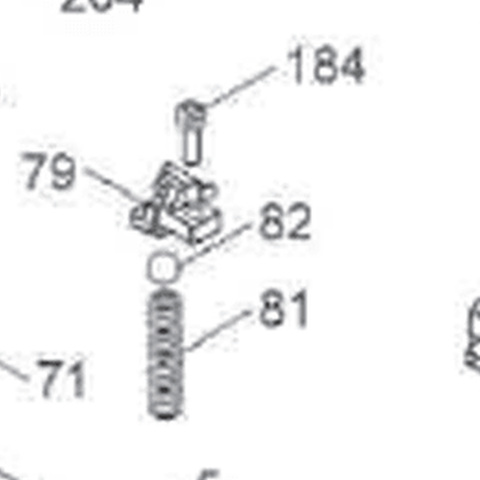

Support | 79 | 1832.031.115 | 0,00 ₺ | Var | ||
|
|

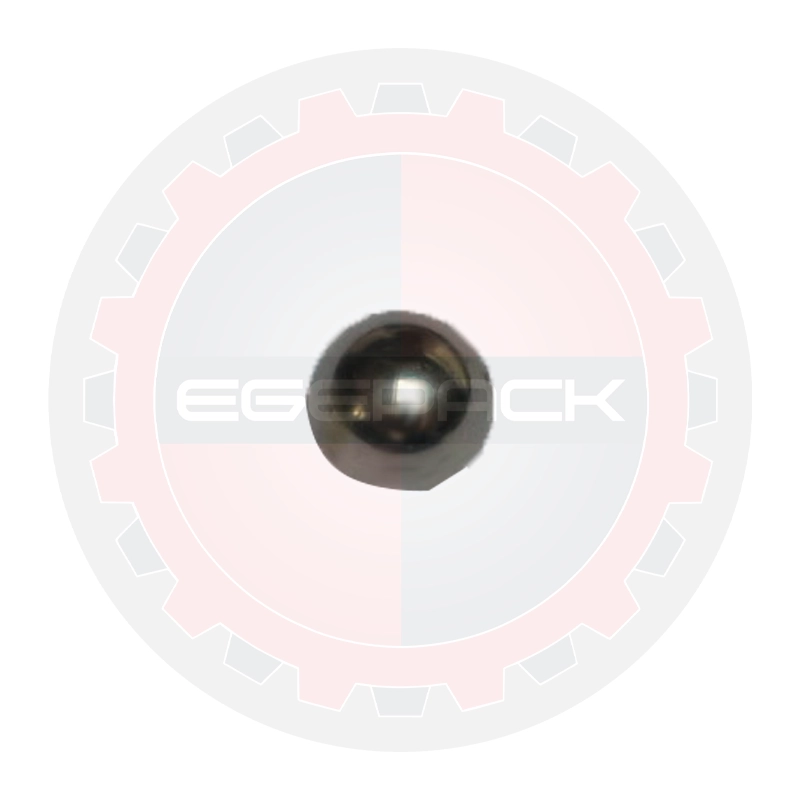

Ball | 82 | 1925.010.802 | 0,00 ₺ | Var | ||
|
|
Reset lever complete | 72 | 1832.031.124 | 0,00 ₺ | Var | ||
|
|
Shim ring | 71 | 1917.411.052 | 0,00 ₺ | Var | ||
|
|
Compression spring | 81 | 1821.010.144 | 0,00 ₺ | Var | ||
|
|
Slide bearing | 5 | 1935.510.100 | 0,00 ₺ | Var | ||
|
|
Base plate complete incl. 29,30 | 1 | 1832.011.284 | 0,00 ₺ | Var | ||
|
|
Bolt | 64 | 1832.039.262 | 0,00 ₺ | Var | ||
|
|
Bevel wheel with pinion | 12 | 1821.061.034 | 0,00 ₺ | Var | ||
|
|

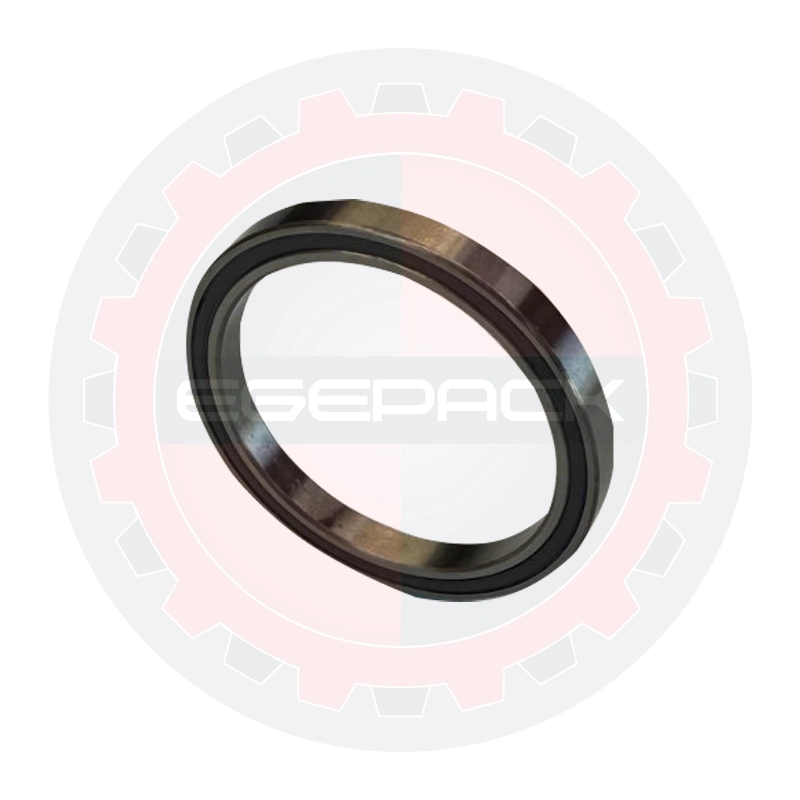

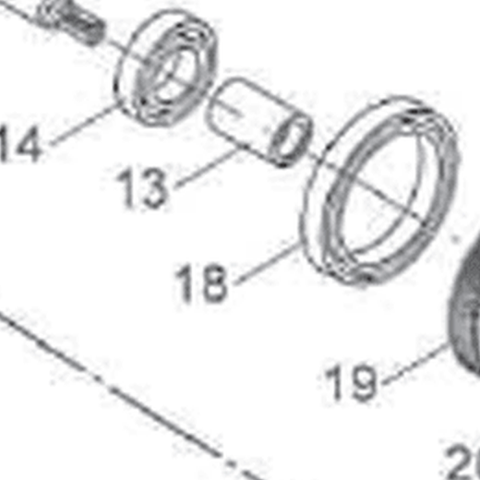

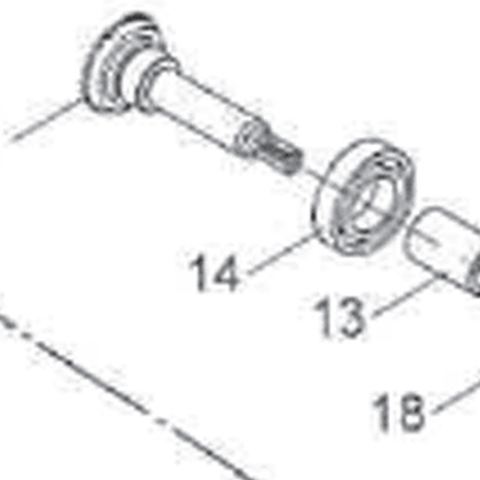

Ball bearing | 14 | 1930.190.154 | 0,00 ₺ | Var | ||
|
|
Free-wheel needle bearing | 13 | 1926.502.100 | 0,00 ₺ | Var | ||
|
|
Ball bearing | 18 | 1930.180.356 | 0,00 ₺ | Var | ||
|
|
Blocking wheel | 19 | 1832.039.211 | 0,00 ₺ | Var | ||
|
|

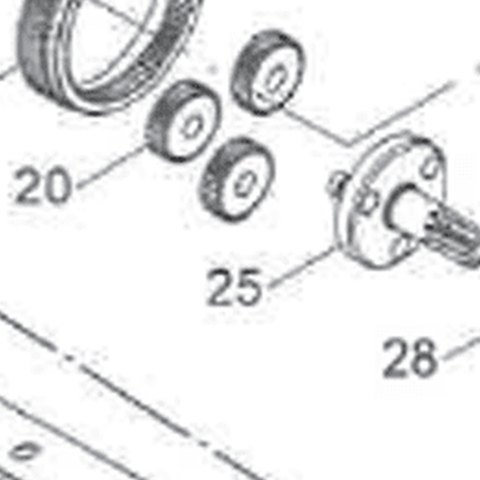

Planetary wheel, 1st step | 20 | 1821.060.016 | 0,00 ₺ | Var | ||
|
|

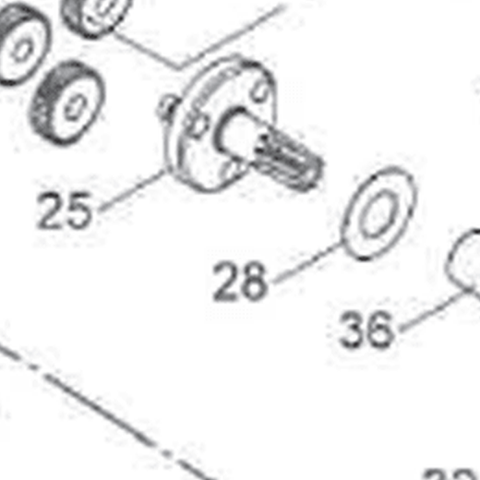

Planetary support complete | 25 | 1832.039.165 | 0,00 ₺ | Var | ||
|
|
Spacer disk | 28 | 1917.401.125 | 0,00 ₺ | Var | ||
|
|
Needle bushing | 36 | 1933.710.150 | 0,00 ₺ | Var | ||
|
|
Flange complete | 32 | 1832.039.287 | 0,00 ₺ | Var | ||
|
|
Cylinder head screw Torx | 184 | 1913.904.125 | 0,00 ₺ | Var | ||
|
|
Strap guide 13mm | 42 | 1832.031.051 | 0,00 ₺ | Var | ||
|
|

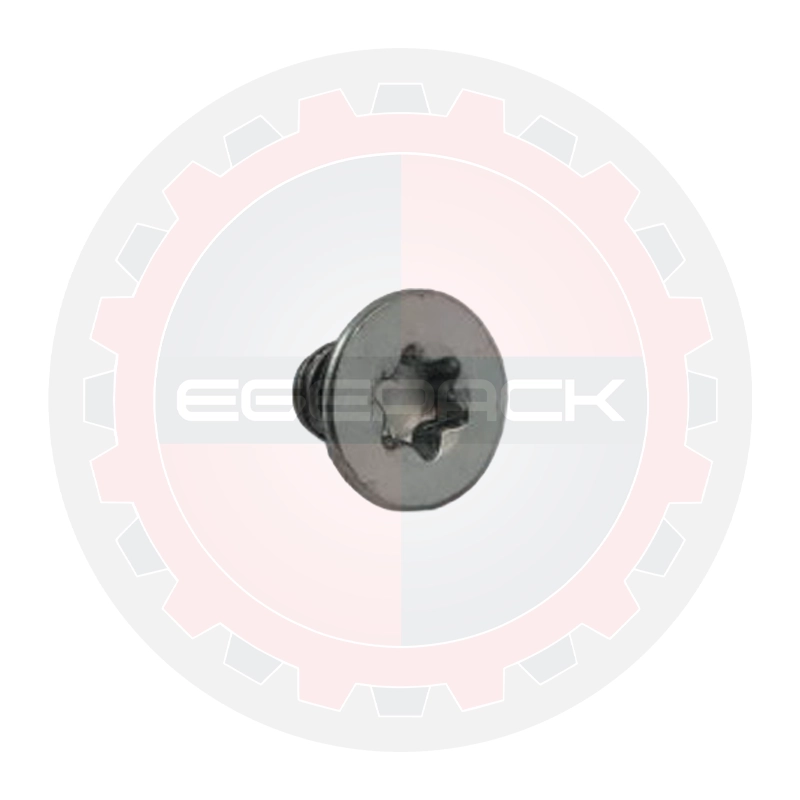

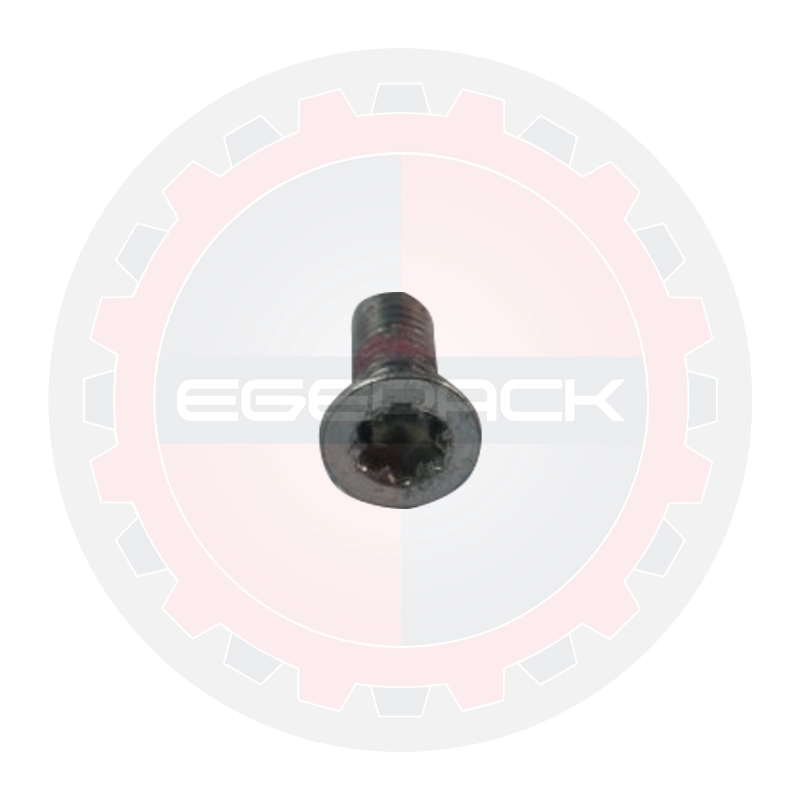

Countersunk screw Torx | 43 | 1912.204.064 | 0,00 ₺ | Var | ||
|
|
Planetary wheel, 2nd step | 45 | 1821.060.014 | 0,00 ₺ | Var | ||
|
|
Tension wheel | 46 | 1821.047.034 | 0,00 ₺ | Var | ||
|
|
Ball bearing | 18 | 1930.180.356 | 0,00 ₺ | Var | ||
|
|
Protection cover set | 243 | 2189.011 | 0,00 ₺ | Var | ||
|
|
Cylinder head screw Torx M5×10 | 251 | 1913.905.103 | 0,00 ₺ | Var | ||
|
|

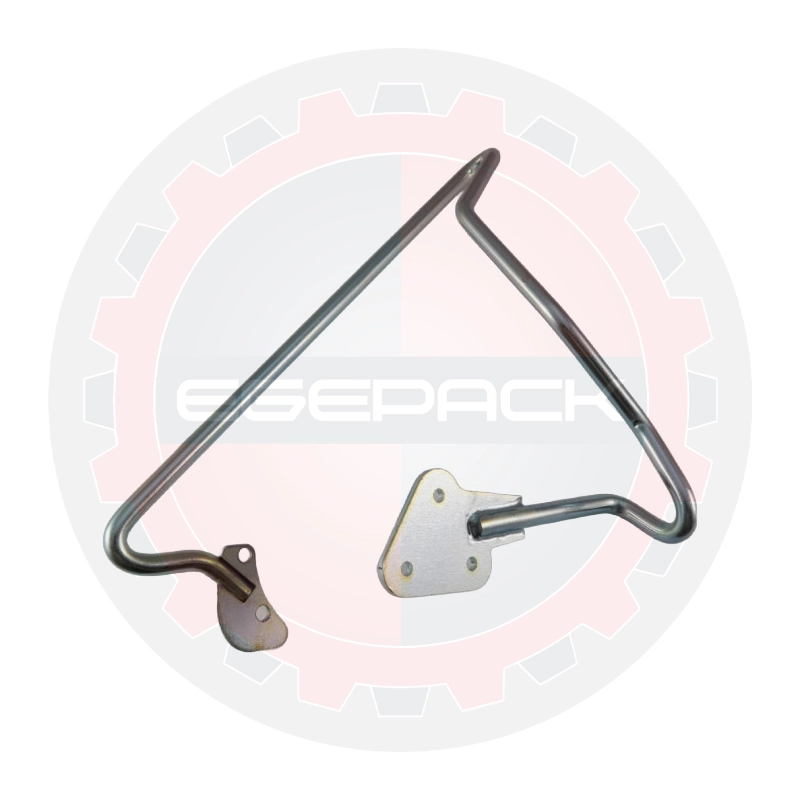

Suspension bow complete | 249 | 1832.061.050 | 0,00 ₺ | Var | ||
|
|
Cylinder head screw Torx M4 | 250 | 1821.027.064 | 0,00 ₺ | Var | ||
|
|

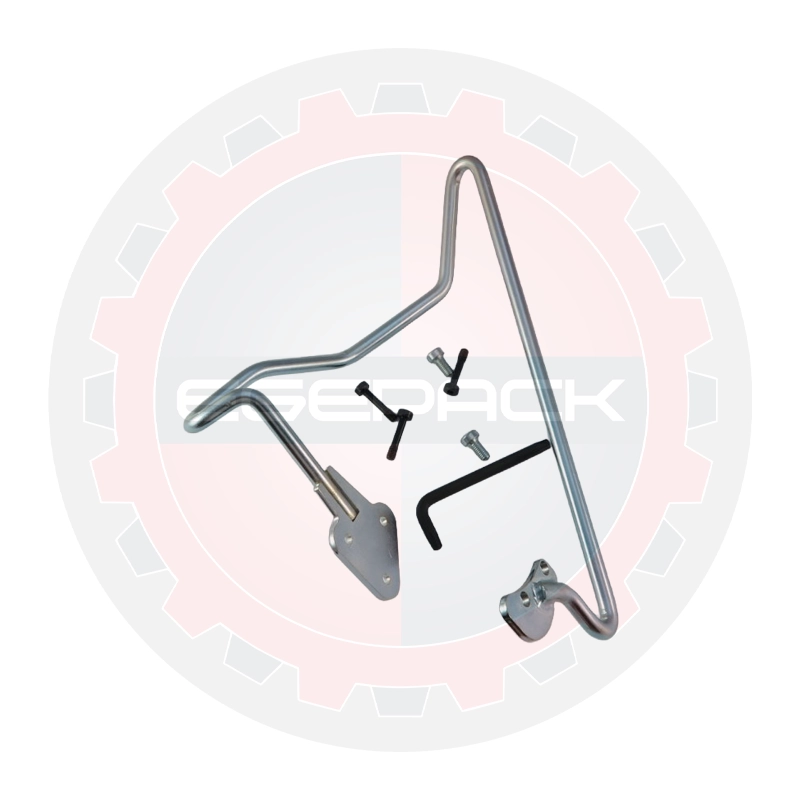

Suspension bow set | 248 | 2189.012 | 0,00 ₺ | Var | ||
|
|
Protection plate | 236 | 1832.011.351 | 0,00 ₺ | Var | ||
|
|
Countersunk screw Torx | 43 | 1912.204.064 | 0,00 ₺ | Var | ||
|
|

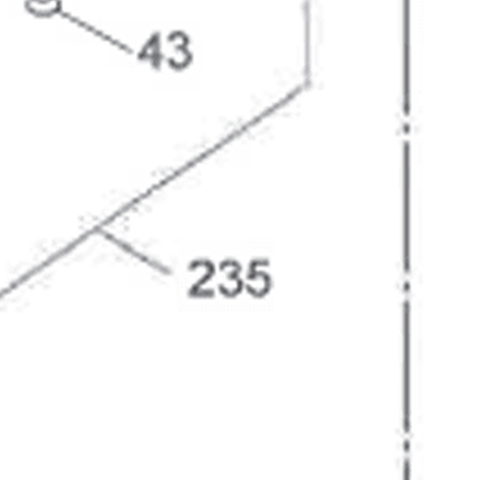

Protection plate set | 235 | 2189.01 | 0,00 ₺ | Var | ||
|
|
Compression spring | 168 | 1821.010.141 | 0,00 ₺ | Var | ||
|
|
Ball bearing | 131 | 1930.180.152 | 0,00 ₺ | Var | ||
|
|
Spacer disk | 30 | 1917.411.048 | 0,00 ₺ | Var | ||
|
|
Panhead screw | 29 | 1912.804.084 | 0,00 ₺ | Var | ||
|
|
Retaining ring | 136 | 1920.215.102 | 0,00 ₺ | Var | ||
|
|
Panhead screw | 29 | 1912.804.084 | 0,00 ₺ | Var | ||
|
|
Spacer disk | 30 | 1917.411.048 | 0,00 ₺ | Var | ||
|
|
Slide bearing | 35 | 1935.504.060 | 0,00 ₺ | Var | ||
|
|

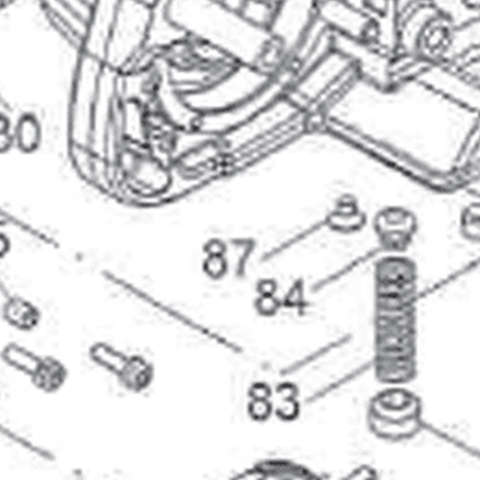

Countersunk screw Torx | 87 | 1912.204.054 | 0,00 ₺ | Var | ||
|
|

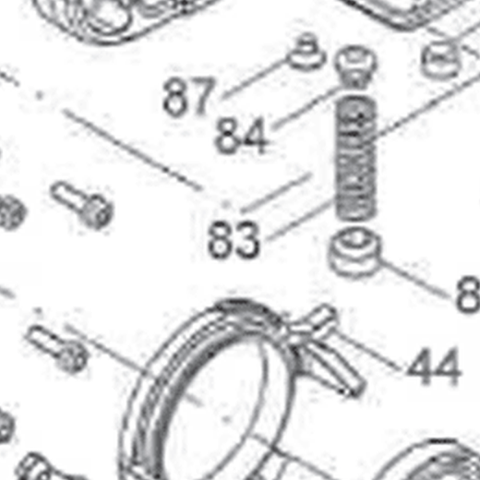

Pusher | 84 | 1821.033.031 | 0,00 ₺ | Var | ||
|
|
Compression spring | 83 | 1821.010.143 | 0,00 ₺ | Var | ||
|
|
Cam disk | 44 | 1832.039.280 | 0,00 ₺ | Var | ||
|
|
Ball bearing | 18 | 1930.180.356 | 0,00 ₺ | Var | ||
|
|
Pan head screw | 54 | 1832.039.285 | 0,00 ₺ | Var | ||
|
|
Countersunk screw Torx | 43 | 1912.204.064 | 0,00 ₺ | Var | ||
|
|

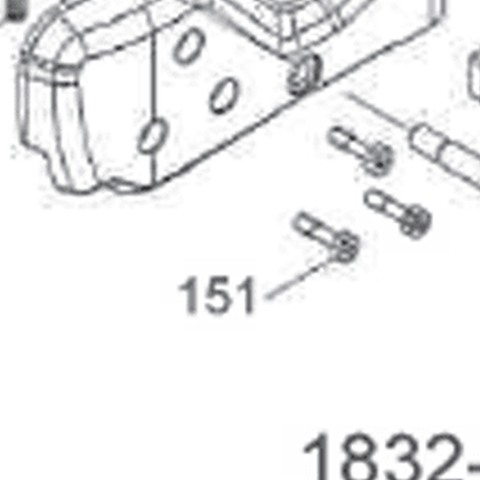

Cylinder head screw Torx | 151 | 1821.027.063 | 0,00 ₺ | Var | ||
|
|
Bearing bolt | 176 | 1821.035.007 | 0,00 ₺ | Var | ||
|
|
Cylinder head screw Torx | 183 | 1913.904.204 | 0,00 ₺ | Var | ||
|
|
Set screw | 85 | 1910.412.084 | 0,00 ₺ | Var | ||
|
|

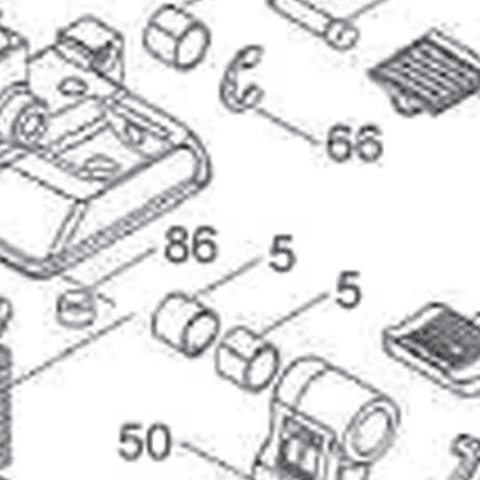

Rocker complete | 50 | 1832.031.110 | 0,00 ₺ | Var | ||
|
|
Set screw | 86 | 1910.408.064 | 0,00 ₺ | Var | ||
|
|
Slide bearing | 5 | 1935.510.100 | 0,00 ₺ | Var | ||
|
|
Slide bearing | 5 | 1935.510.100 | 0,00 ₺ | Var | ||
|
|
Slide bearing | 5 | 1935.510.100 | 0,00 ₺ | Var | ||
|
|

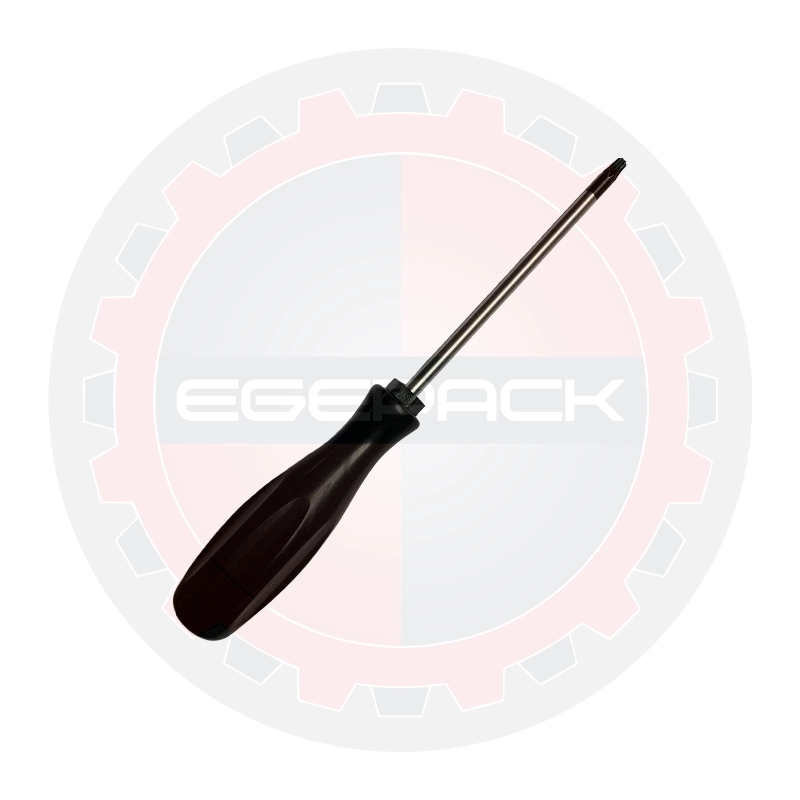

Screwdriver Torx T20 | 232 | 1990.102.020 | 0,00 ₺ | Var | ||
|
|
Compression spring | 170 | 1821.010.142 | 0,00 ₺ | Var | ||
|
|

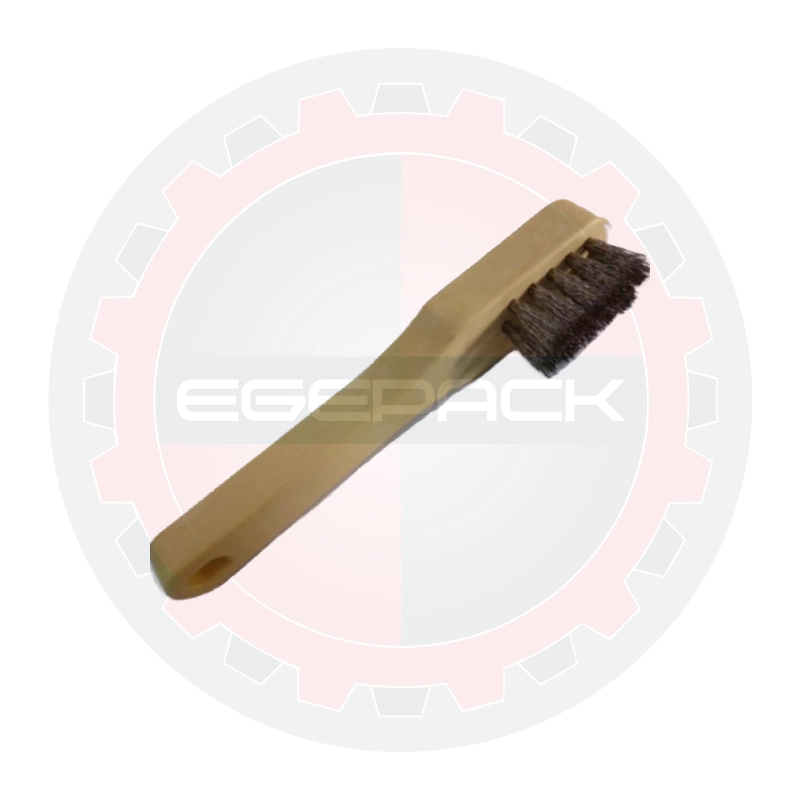

Wire brush (Zeintra / 21242) | 231 | 1821.901.004 | 0,00 ₺ | Var | ||
|
|
Offset screwdriver | 233 | 1821.901.007 | 0,00 ₺ | Var | ||
|
|

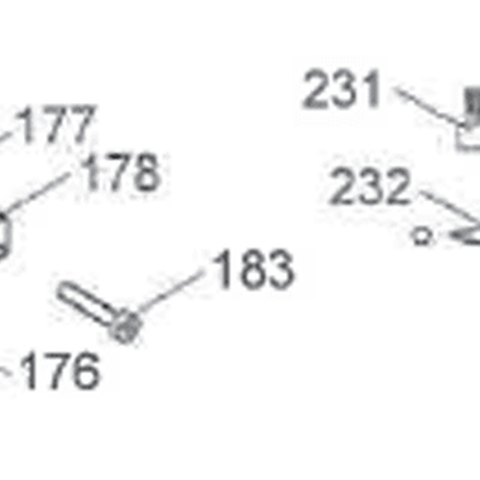

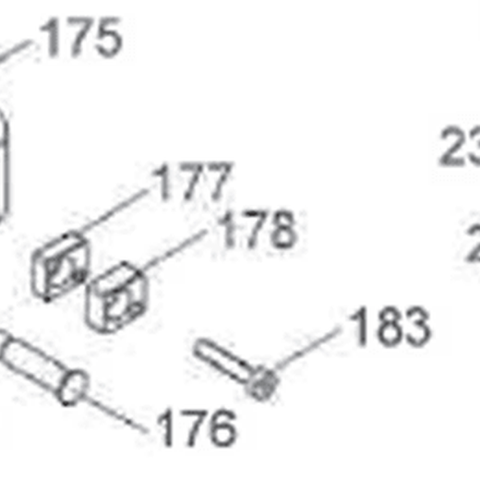

Strap guide rear 13 mm | 178 | 1832.041.019 | 0,00 ₺ | Var | ||
|
|
Strap guide rear 16 mm | 177 | 1832.041.018 | 0,00 ₺ | Var | ||
|
|
Side cover Grivory | 175 | 1832.011.346 | 0,00 ₺ | Var | ||
|
|
Washer | 163 | 1821.020.147 | 0,00 ₺ | Var | ||
|
|

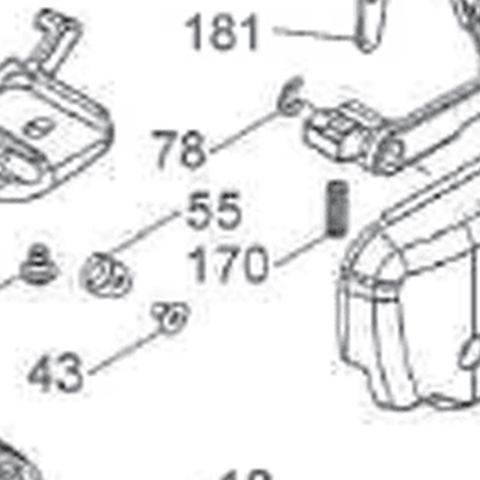

Strap guide front 13mm | 55 | 1832.031.116 | 0,00 ₺ | Var | ||
|
|
Lever strap guide complete | 172 | 1832.042.065 | 0,00 ₺ | Var | ||
|
|
Retaining ring | 78 | 1920.104.072 | 0,00 ₺ | Var | ||
|
|

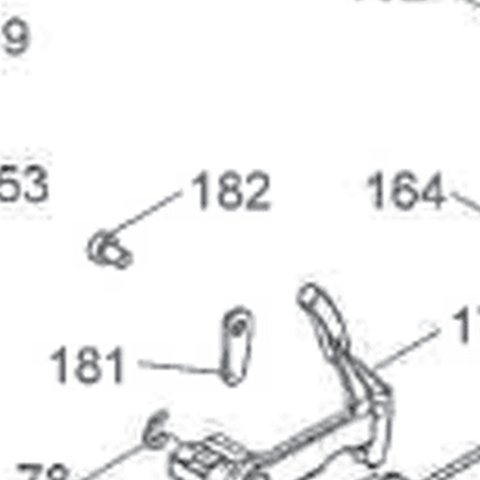

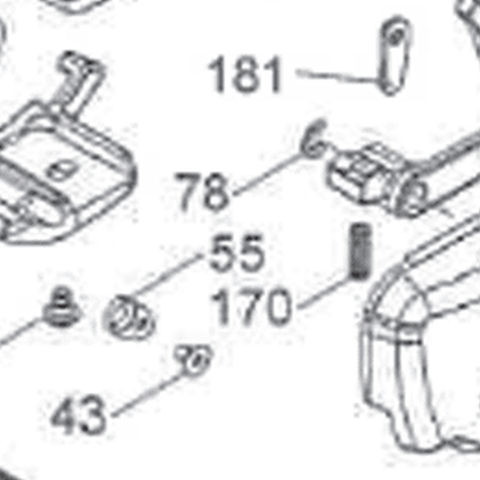

Strap guide rear 13 mm | 181 | 1832.042.043 | 0,00 ₺ | Var | ||
|
|
Tooth plate | 53 | 1821.048.027 | 0,00 ₺ | Var | ||
|
|
Cylinder head screw Torx | 182 | 1913.904.064 | 0,00 ₺ | Var | ||
|
|
Cylinder head screw with flange | 164 | 1911.304.084 | 0,00 ₺ | Var | ||
|
|

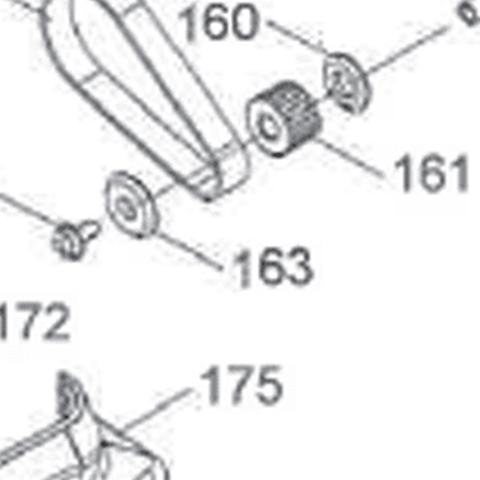

Pinion | 161 | 1832.022.139 | 0,00 ₺ | Var | ||
|
|
Supporting disk | 160 | 1832.022.165 | 0,00 ₺ | Var | ||
|
|
Retaining ring | 66 | 1920.108.102 | 0,00 ₺ | Var | ||
|
|
Tooth plate below | 9 | 1832.022.109 | 0,00 ₺ | Var | ||
|
|
Set screw | 10 | 1832.022.055 | 0,00 ₺ | Var | ||
|
|

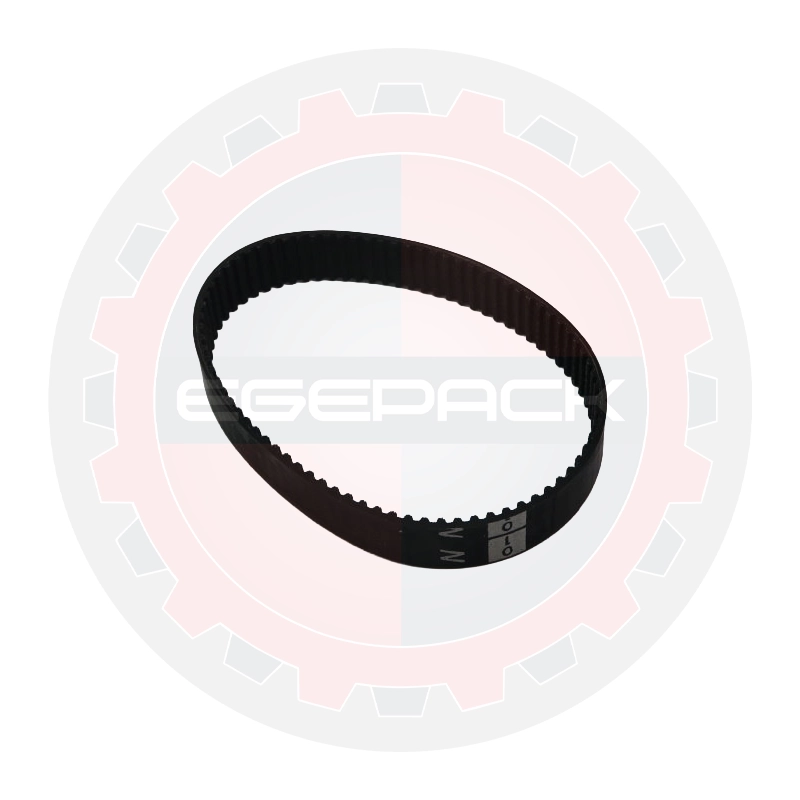

Toothed belt 158.2MGT-9 | 162 | 1821.067.011 | 0,00 ₺ | Var | ||
|
|
Bolt | 70 | 1832.022.186 | 0,00 ₺ | Var | ||
|
|

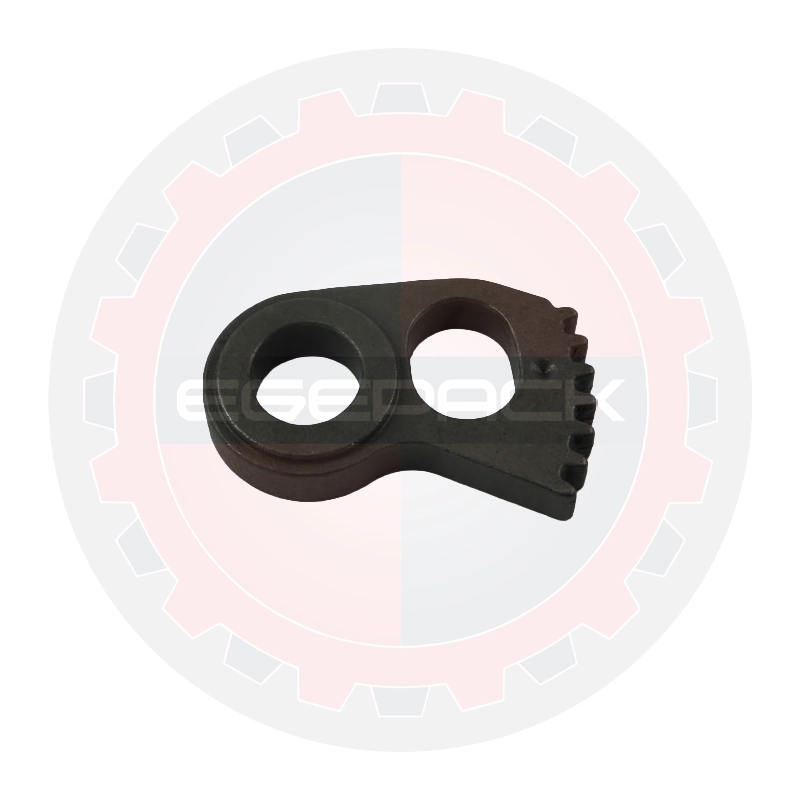

Toothed segment | 90 | 1832.039.288 | 0,00 ₺ | Var | ||
|
|
Rocker lever complete | 89 | 1832.031.105 | 0,00 ₺ | Var | ||
|
|
Blocking lever | 65 | 1832.031.108 | 0,00 ₺ | Var | ||
|
|
Compression spring | 169 | 1821.010.020 | 0,00 ₺ | Var | ||
|
|
Swivel bearing | 153 | 1832.022.230 | 0,00 ₺ | Var | ||
|
|

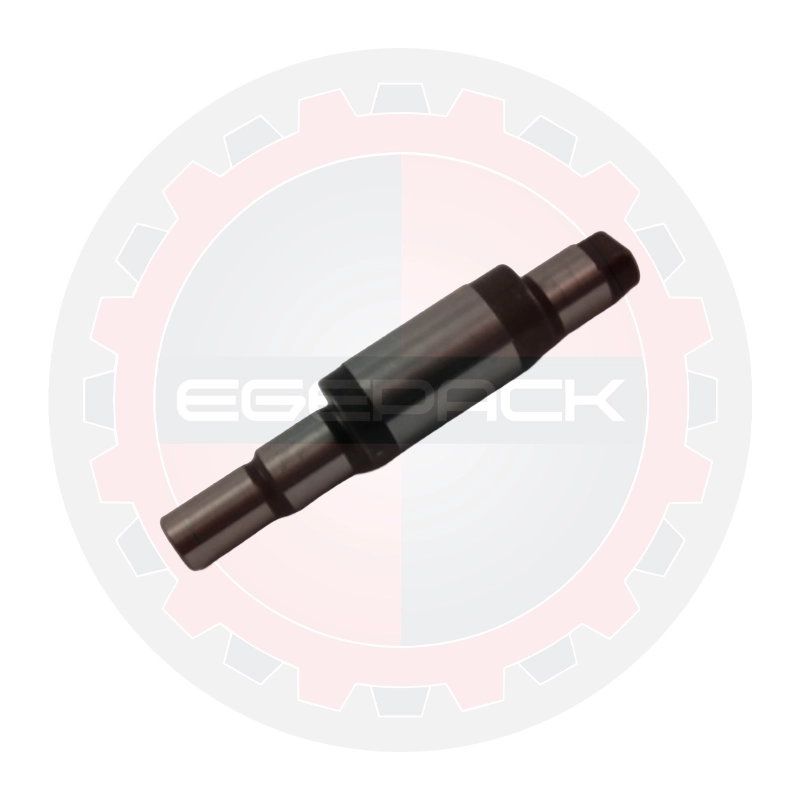

Eccentric shaft | 155 | 1832.022.240 | 0,00 ₺ | Var | ||
|
|
Ball | 159 | 1925.010.502 | 0,00 ₺ | Var | ||
|
|

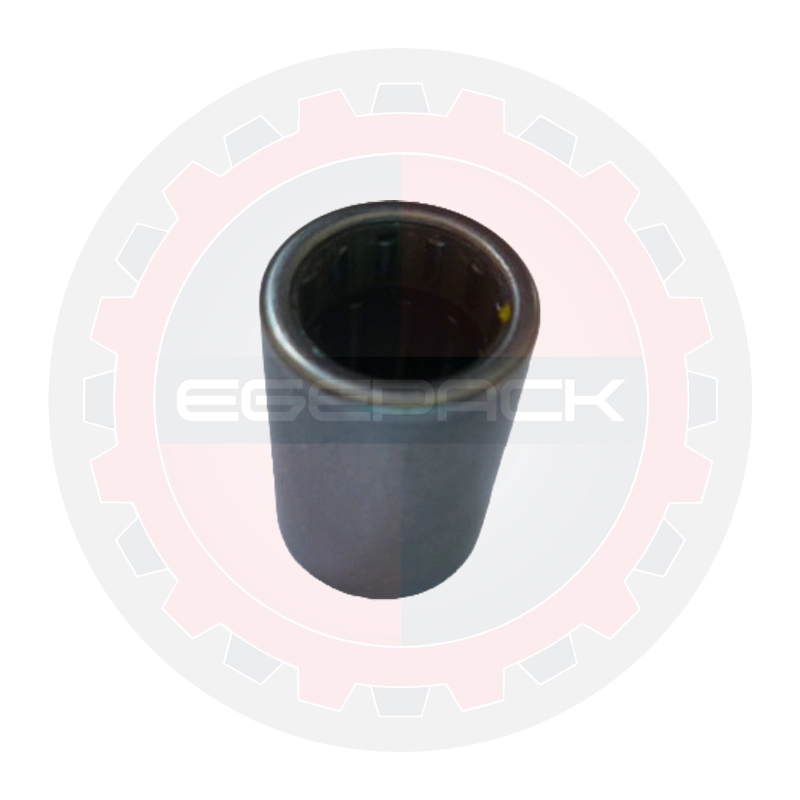

Needle bearing | 157 | 1933.210.120 | 0,00 ₺ | Var | ||
|
|
Welding shoe | 158 | 1832.022.257 | 0,00 ₺ | Var | ||
|
|
Bolt | 144 | 1821.035.011 | 0,00 ₺ | Var | ||
|
|
Bolt | 142 | 1821.031.060 | 0,00 ₺ | Var | ||
|
|

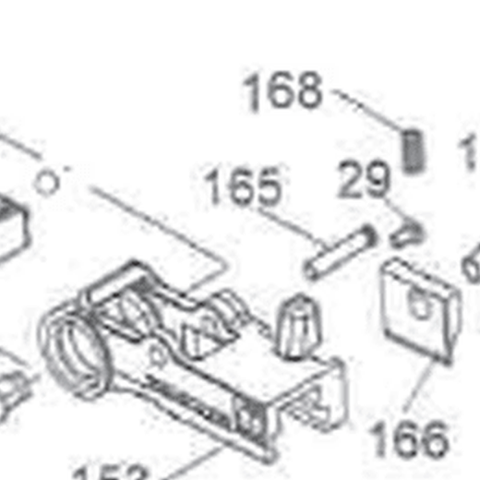

Knife | 166 | 1821.209.035 | 0,00 ₺ | Var | ||
|
|
Flanged bushing | 167 | 1832.022.238 | 0,00 ₺ | Var | ||
|
|
Bolt | 165 | 1832.022.273 | 0,00 ₺ | Var | ||
|
|
Compression spring | 168 | 1821.010.141 | 0,00 ₺ | Var | ||
|
|
Panhead screw | 29 | 1912.804.084 | 0,00 ₺ | Var | ||
|
|
Cylinder head screw Torx | 184 | 1913.904.125 | 0,00 ₺ | Var | ||
|
|

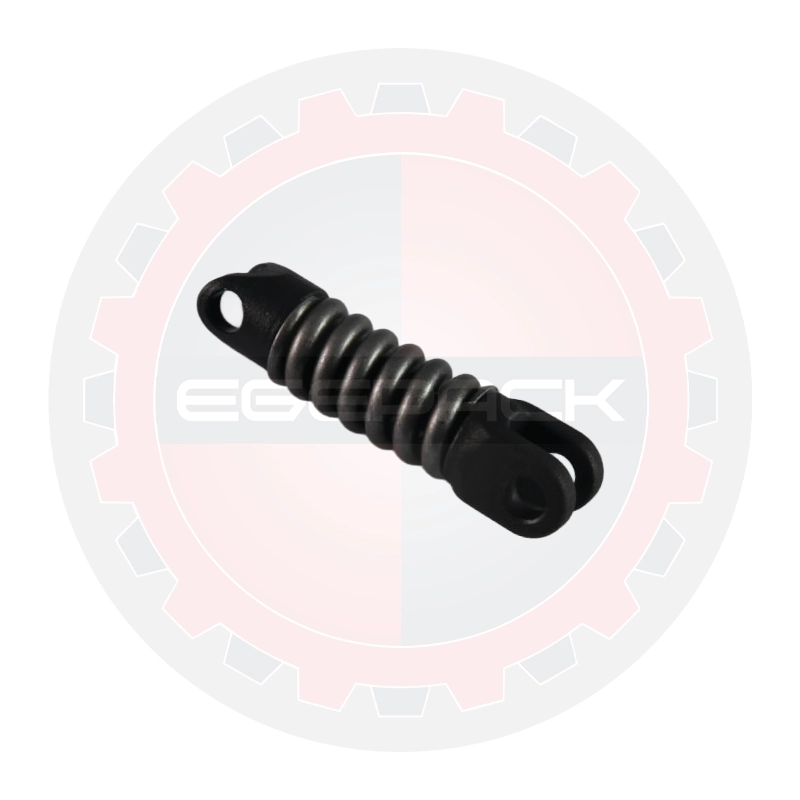

Spring assembly | 145 | 1832.022.254 | 0,00 ₺ | Var | ||
|
|
Retaining ring | 78 | 1920.104.072 | 0,00 ₺ | Var | ||
|
|

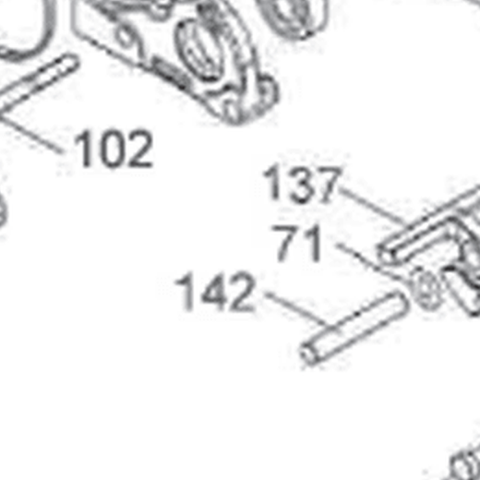

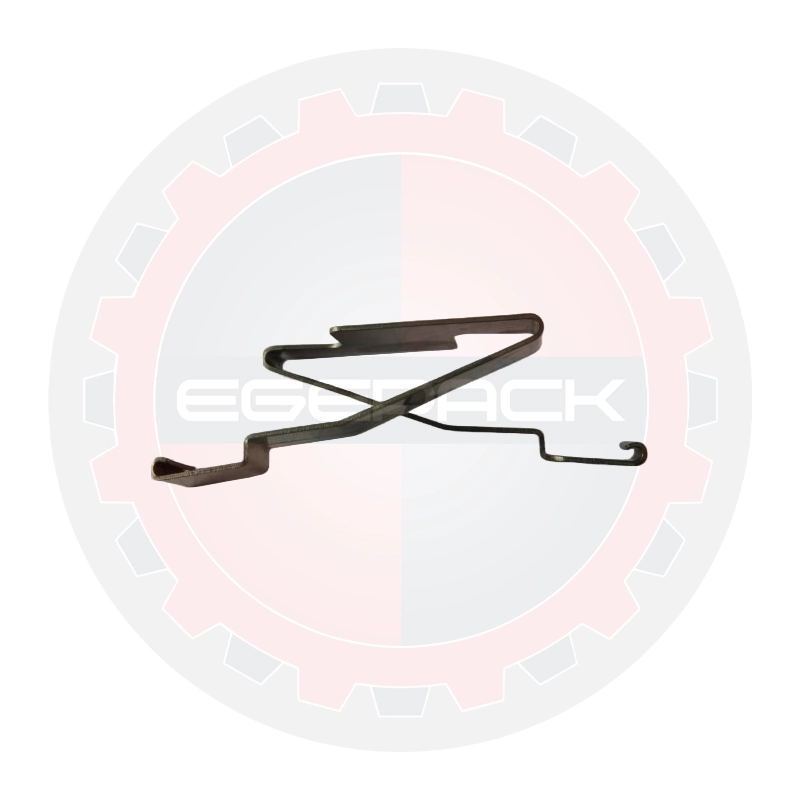

Yoke spring | 141 | 1821.012.038 | 0,00 ₺ | Var | ||
|
|
Bolt | 143 | 1832.022.163 | 0,00 ₺ | Var | ||
|
|
Shim ring | 71 | 1917.411.052 | 0,00 ₺ | Var | ||
|
|
Shift lever complete | 137 | 1832.022.249 | 0,00 ₺ | Var | ||
|
|
Shim ring | 71 | 1917.411.052 | 0,00 ₺ | Var | ||
|
|
Cylinder head screw | 102 | 1911.204.304 | 0,00 ₺ | Var | ||
|
|
Cylinder head screw | 104 | 1911.003.104 | 0,00 ₺ | Var | ||
|
|

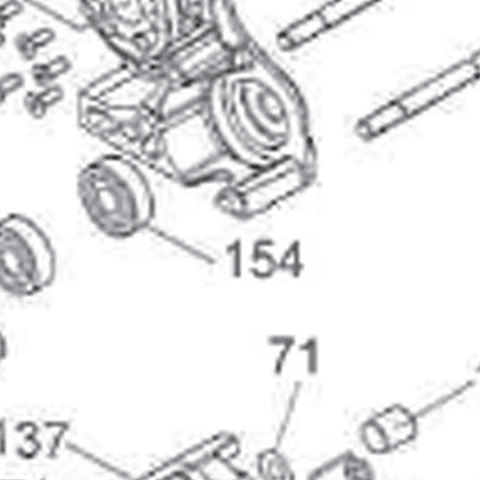

Ball bearing | 154 | 1930.100.072 | 0,00 ₺ | Var | ||
|
|
Shoulder screw | 101 | 1821.027.037 | 0,00 ₺ | Var | ||
|
|

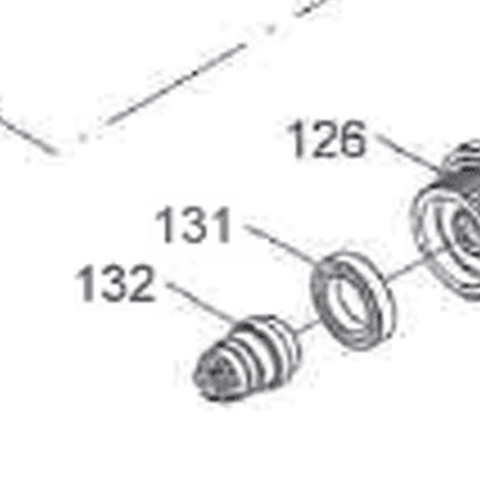

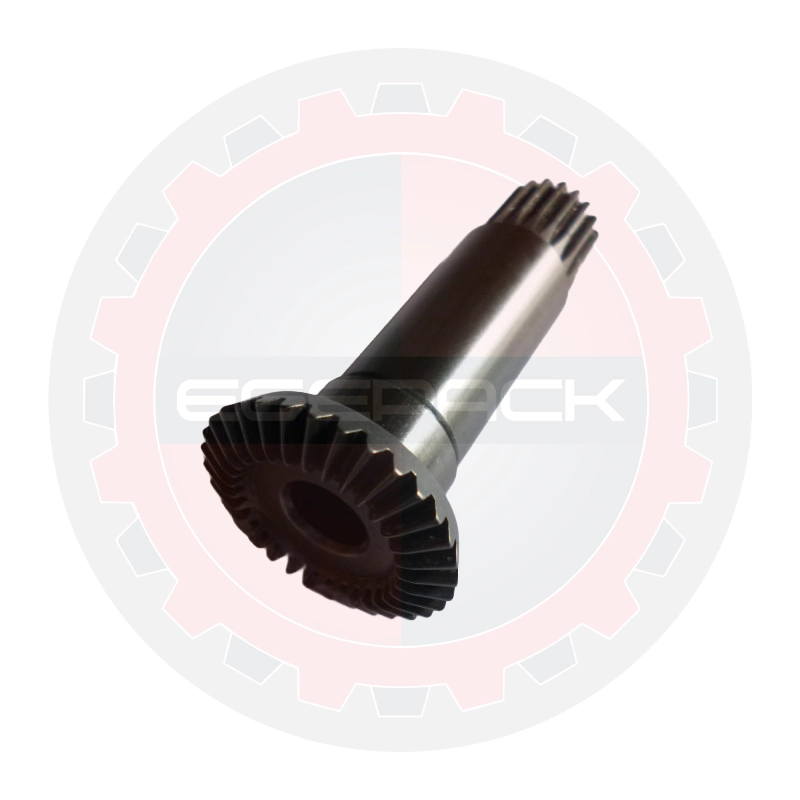

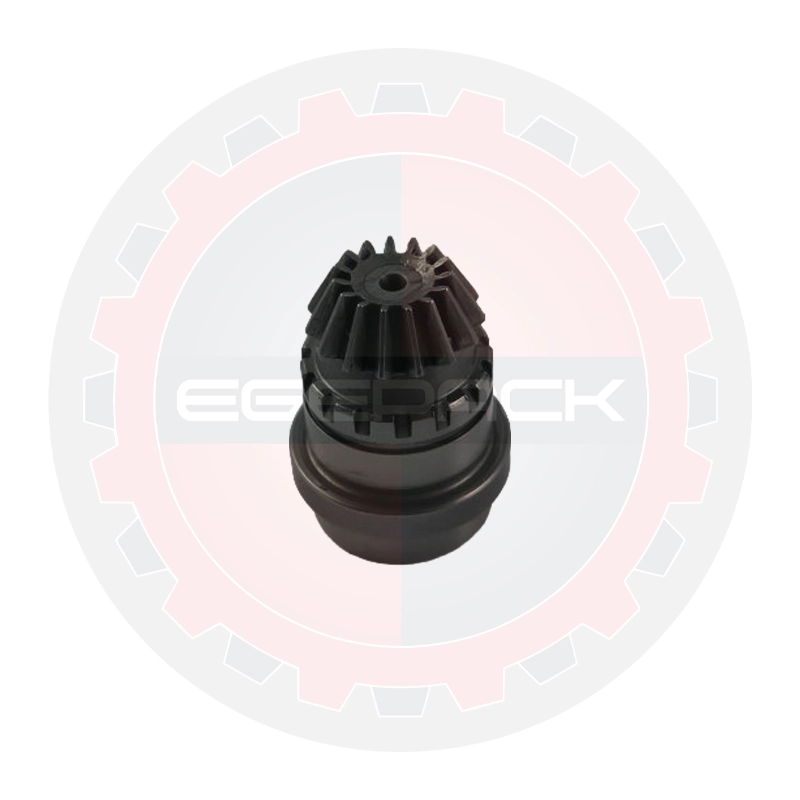

Bevel pinion complete | 132 | 1821.061.037 | 0,00 ₺ | Var | ||
|
|
Ball bearing | 131 | 1930.180.152 | 0,00 ₺ | Var | ||
|
|

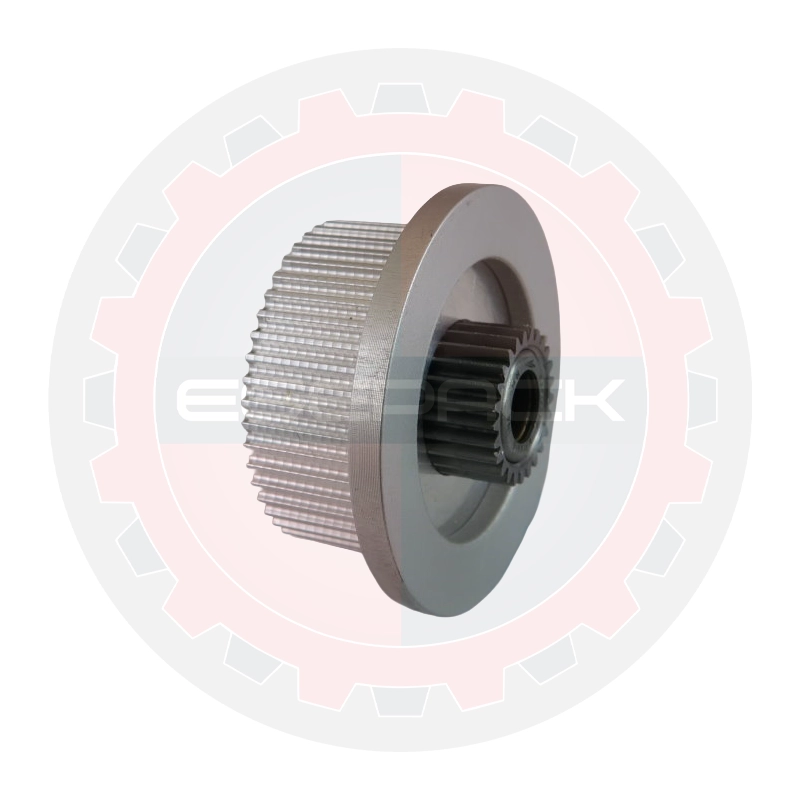

Belt pulley mounted | 126 | 1832.033.018 | 0,00 ₺ | Var | ||
|
|
Belt cover | 221 | 1832.022.259 | 0,00 ₺ | Var | ||
|
|
Ring | 124 | 1821.020.151 | 0,00 ₺ | Var | ||
|
|
Bearing support | 125 | 1832.022.248 | 0,00 ₺ | Var | ||
|
|

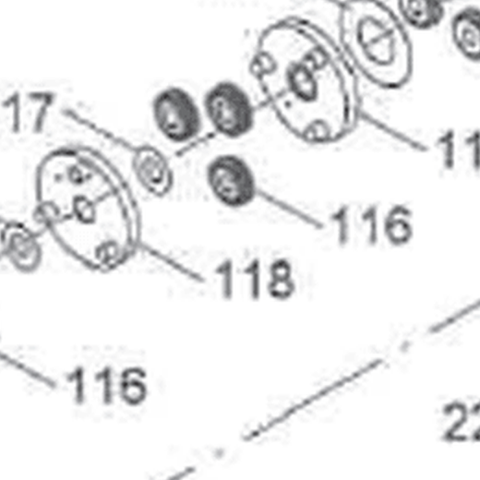

Planetary wheel | 116 | 1821.060.024 | 0,00 ₺ | Var | ||
|
|
Planetary support complete | 118 | 1832.039.201 | 0,00 ₺ | Var | ||
|
|
Planetary wheel | 116 | 1821.060.024 | 0,00 ₺ | Var | ||
|
|

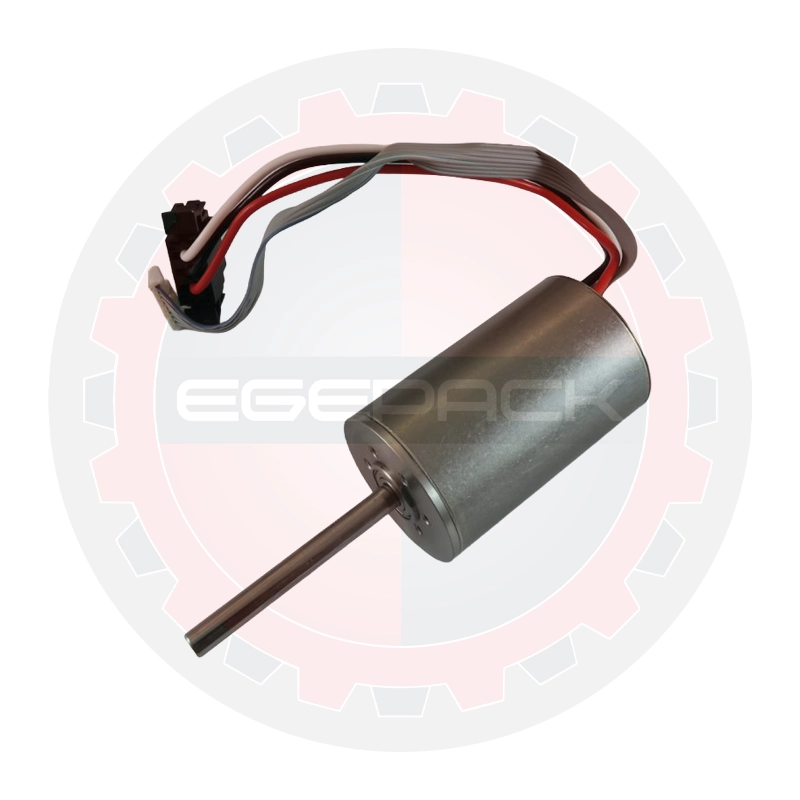

Motor | 95 | 1821.140.104 | 0,00 ₺ | Var | ||
|
|
Countersunk screw | 99 | 1912.203.086 | 0,00 ₺ | Var | ||
|
|
Motor support complete | 96 | 1832.022.269 | 0,00 ₺ | Var | ||
|
|
Mounting support connector | 195 | 1821.163.235 | 0,00 ₺ | Var | ||
|
|
Planetary support complete | 112 | 1832.039.203 | 0,00 ₺ | Var | ||
|
|
Cable harness welding unit | 106 | 1821.151.054 | 0,00 ₺ | Var | ||
|
|
Ball bearing | 108 | 1930.170.302 | 0,00 ₺ | Var | ||
|
|

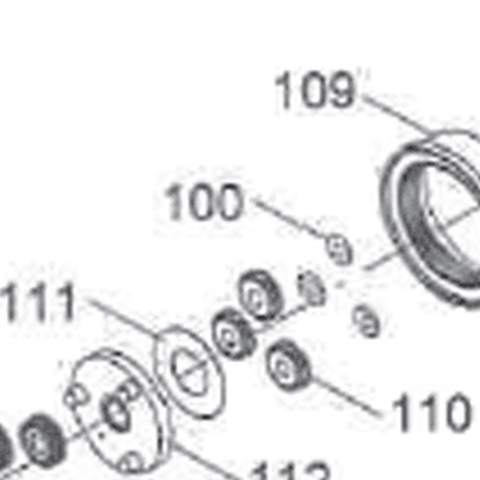

Excentric cam | 109 | 1832.022.247 | 0,00 ₺ | Var | ||
|
|
Shim ring | 100 | 1917.411.041 | 0,00 ₺ | Var | ||
|
|
Spacer disk | 111 | 1917.401.122 | 0,00 ₺ | Var | ||
|
|
Shim ring | 117 | 1917.411.062 | 0,00 ₺ | Var | ||
|
|
Shim ring | 117 | 1917.411.062 | 0,00 ₺ | Var |
