Yedek Parça Seçenekleri
| Görsel | Part Name | Pos No | Part Number | Fiyat | Stok | Adet | Aksiyon |
|---|---|---|---|---|---|---|---|
|

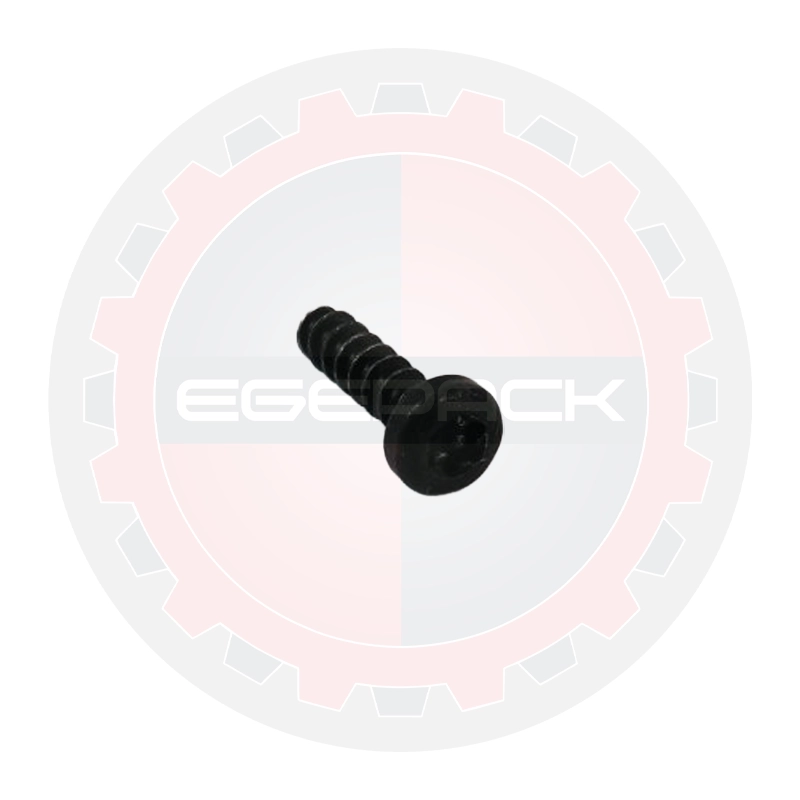

Torx pan head PT screw | 395 | 1914.840.162 | 0,00 ₺ | Var | ||
|
|

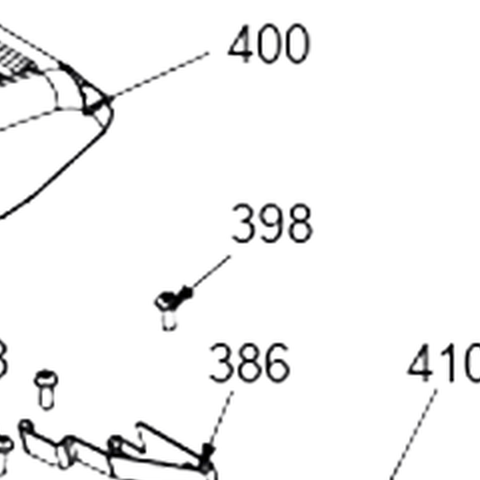

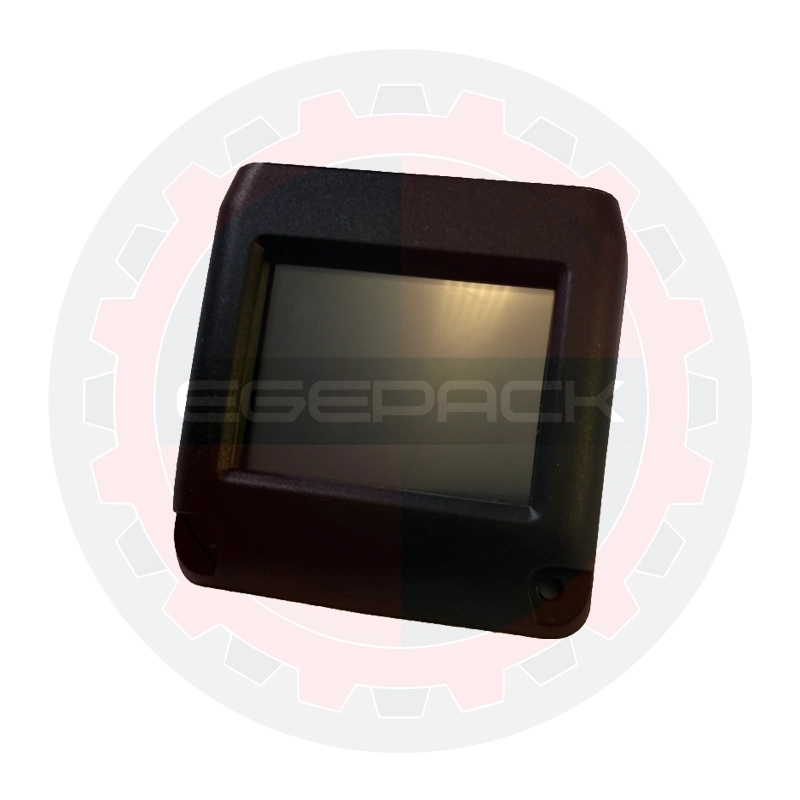

TFT control unit | 400 | 1832.011.540 | 0,00 ₺ | Var | ||
|
|
Torx pan head PT screw | 395 | 1914.840.162 | 0,00 ₺ | Var | ||
|
|

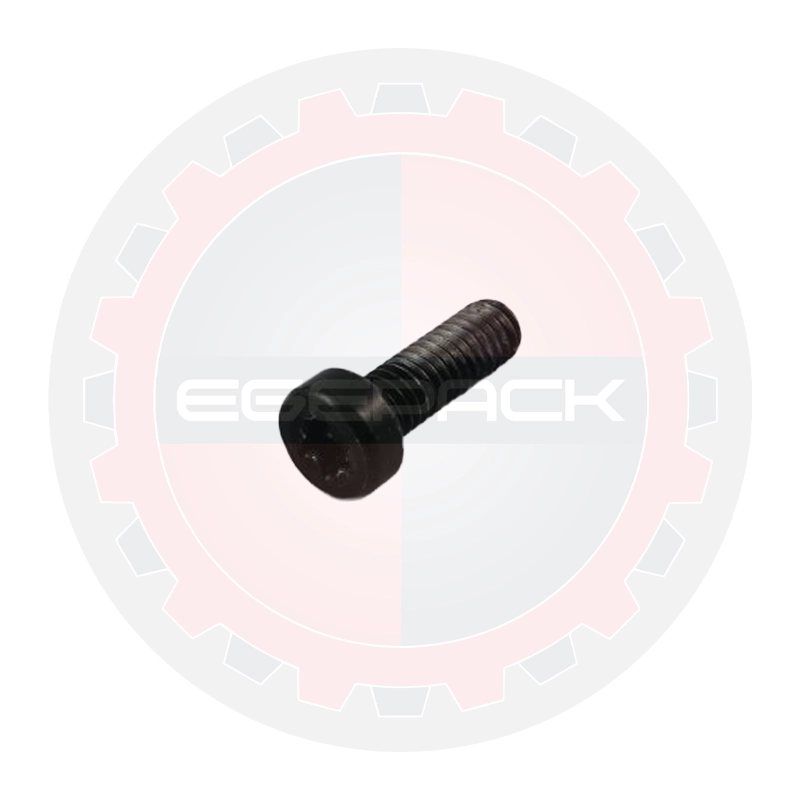

Torx socket head cap screw | 63 | 1913.904.125 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 63 | 1913.904.125 | 0,00 ₺ | Var | ||
|
|

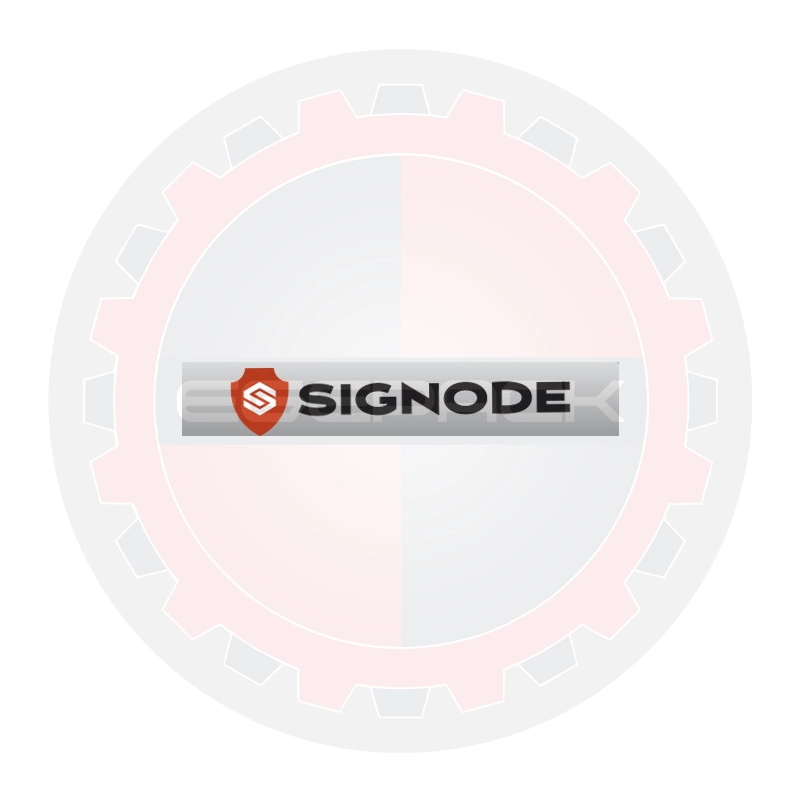

Company label | 382 | 1821.090.025 | 0,00 ₺ | Var | ||
|
|

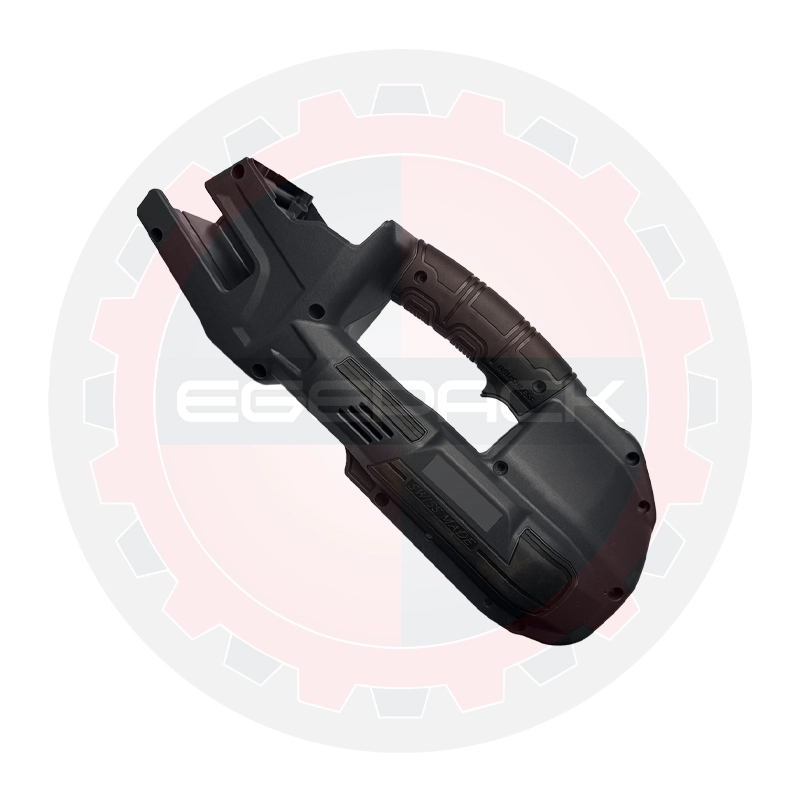

Housing shell set | 350 | 1832.011.525 | 0,00 ₺ | Var | ||
|
|

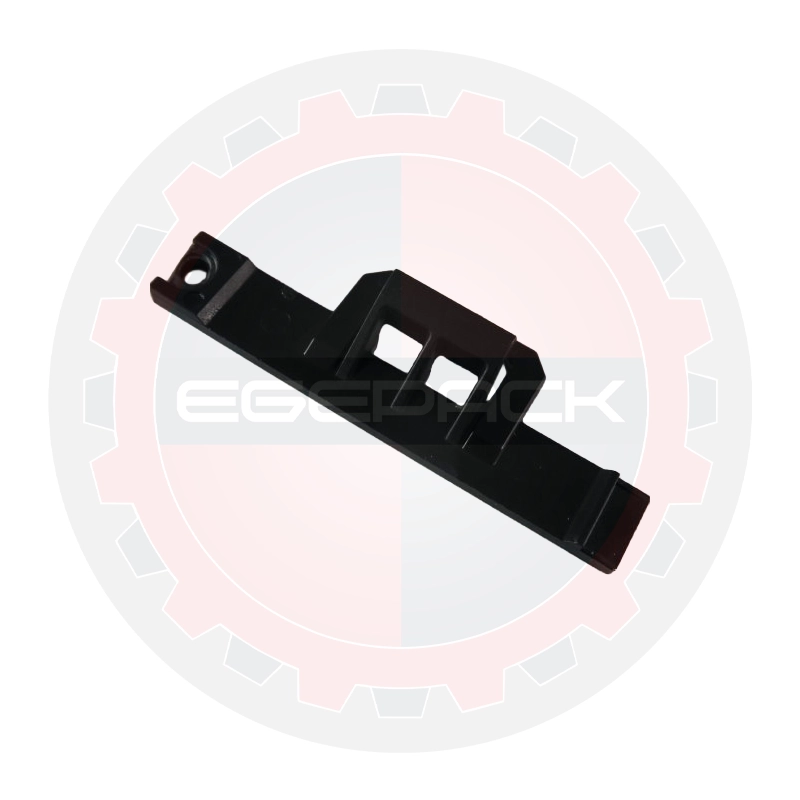

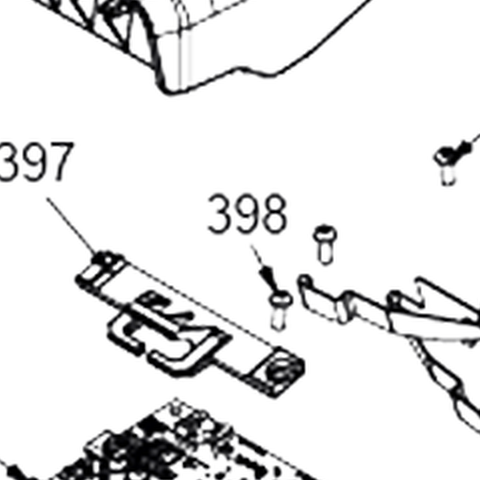

Contact plate retainer | 397 | 1832.011.319 | 0,00 ₺ | Var | ||
|
|

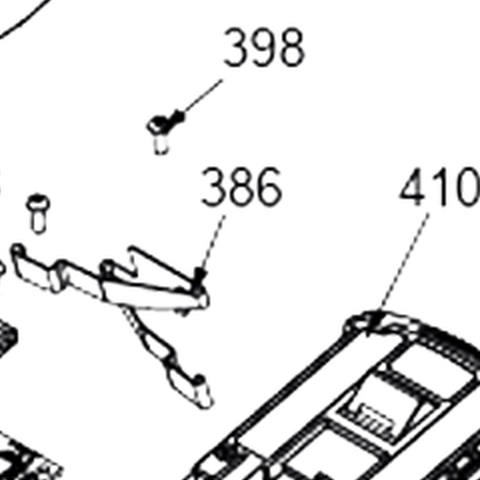

Torx pan head PT screw | 398 | 1914.830.088 | 0,00 ₺ | Var | ||
|
|
Torx pan head PT screw | 398 | 1914.830.088 | 0,00 ₺ | Var | ||
|
|
Leaf spring | 386 | 1821.013.014 | 0,00 ₺ | Var | ||
|
|

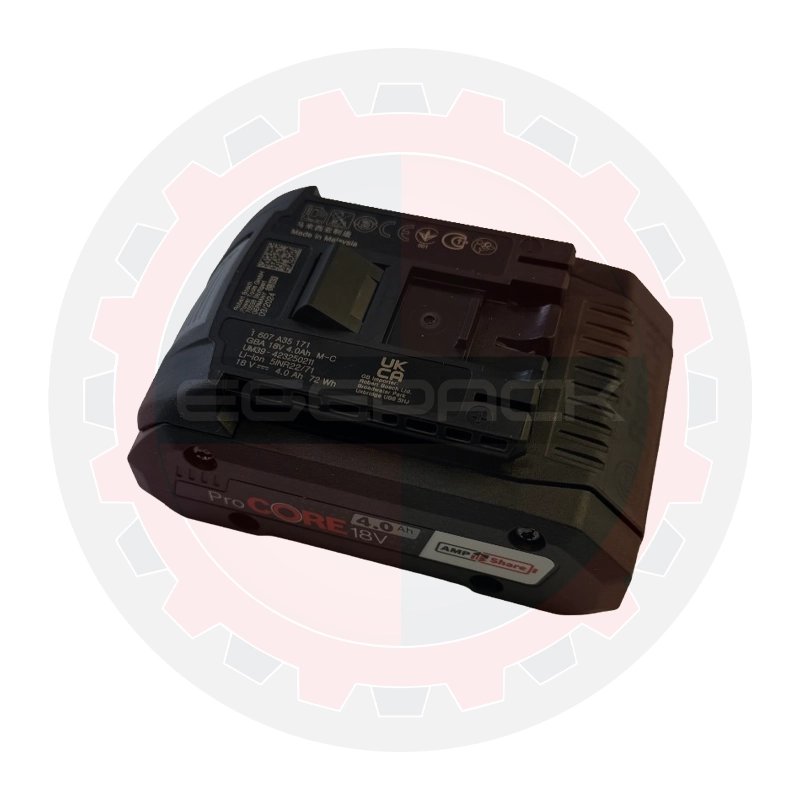

Li-ion battery 18 V 4.0 Ah EU Pro Core | 410 | 2187.04 | 0,00 ₺ | Var | ||
|
|
Li-ion battery 18 V 4.0 Ah US Core | 410 | 2187.041 | 0,00 ₺ | Var | ||
|
|
Li-ion battery 18 V 4.0 Ah JP Pro Core | 410 | 2187.042 | 0,00 ₺ | Var | ||
|
|

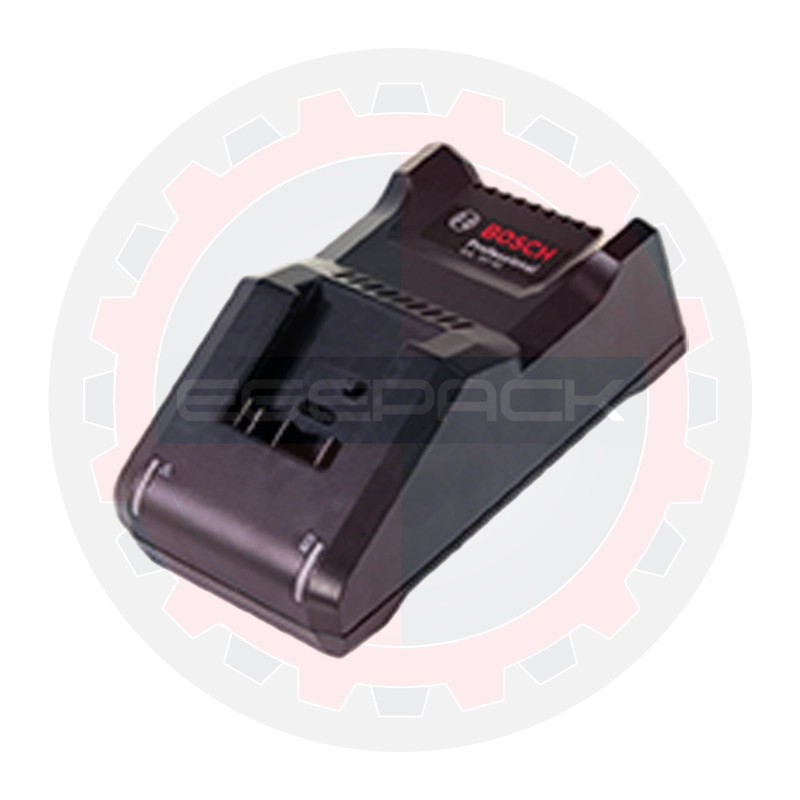

Charger GAL1840 230 V EU | 420 | 2188.03 | 0,00 ₺ | Var | ||
|
|
Charger GAL1840 115 V US | 420 | 2188.031 | 0,00 ₺ | Var | ||
|
|
Charger GAL1840 100 V JP | 420 | 2188.032 | 0,00 ₺ | Var | ||
|
|
Charger GAL1840 240 V AUS | 420 | 2188.033 | 0,00 ₺ | Var | ||
|
|
Charger GAL1840 230 V UK | 420 | 2188.034 | 0,00 ₺ | Var | ||
|
|

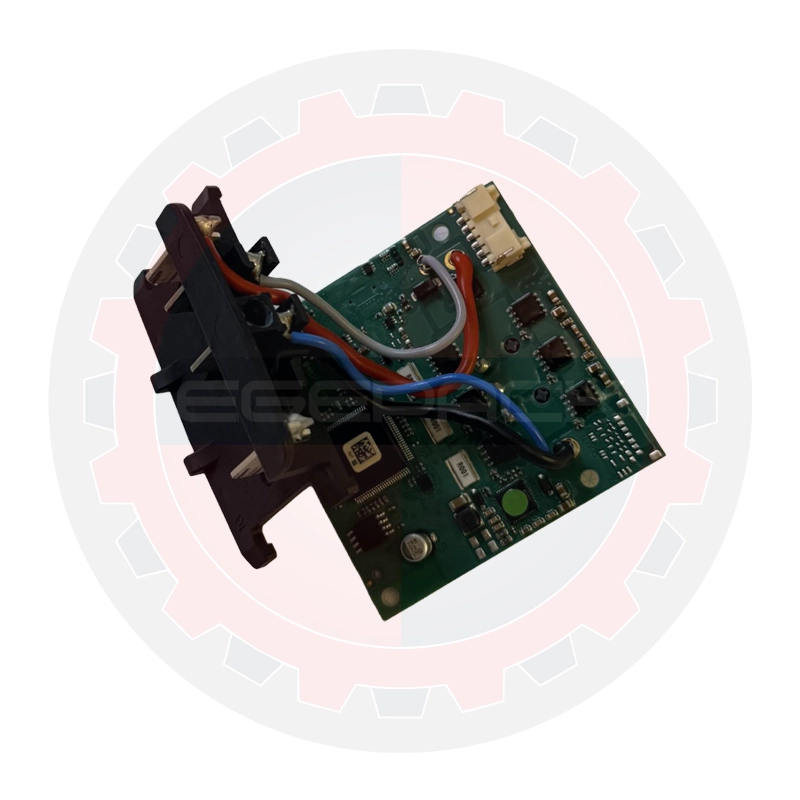

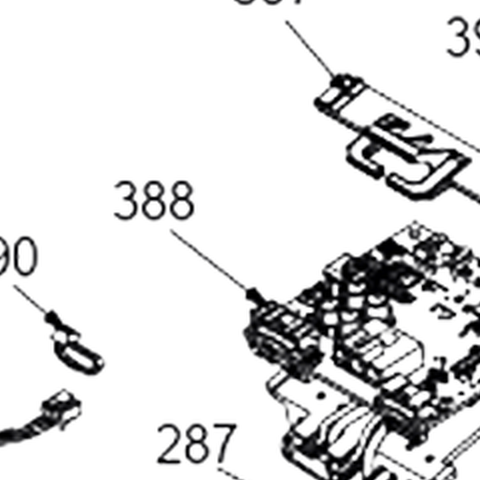

Soldered control PCB | 388 | 1821.152.135 | 0,00 ₺ | Var | ||
|
|
Compression spring | 287 | 1821.010.141 | 0,00 ₺ | Var | ||
|
|
Protective plate | 387 | 1832.011.181 | 0,00 ₺ | Var | ||
|
|

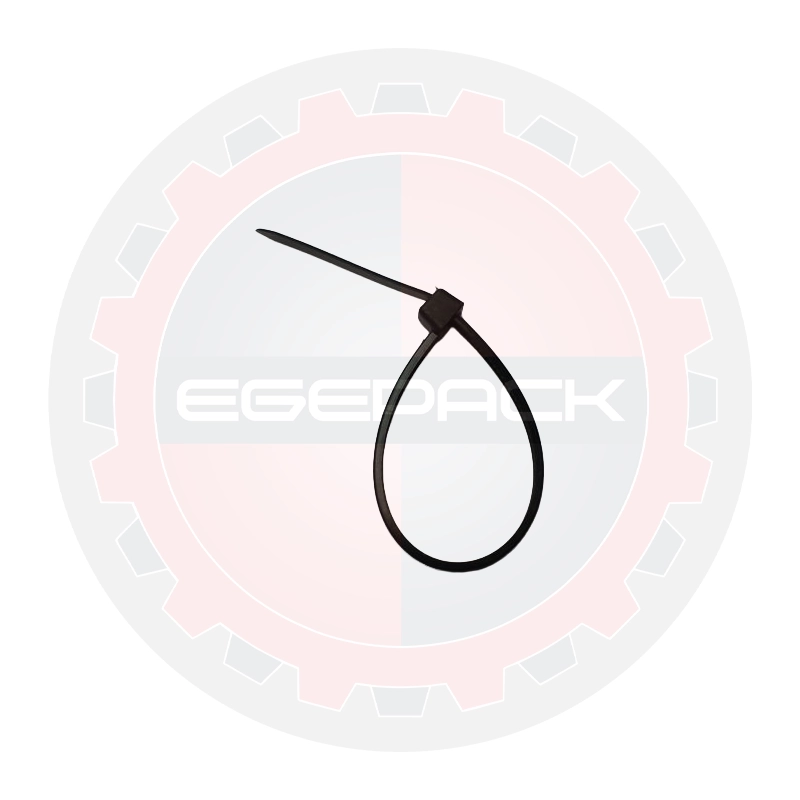

Cable tie | 390 | 1960.000.707 | 0,00 ₺ | Var | ||
|
|
Cable clamp | 403 | 1821.151.056 | 0,00 ₺ | Var | ||
|
|
FSR cable harness | 385 | 1821.151.081 | 0,00 ₺ | Var | ||
|
|
Actuator | 377 | 1832.011.329 | 0,00 ₺ | Var | ||
|
|
Tension button | 378 | 1832.011.508 | 0,00 ₺ | Var | ||
|
|
Torx pan head PT screw | 395 | 1914.840.162 | 0,00 ₺ | Var | ||
|
|
Compression spring | 380 | 1821.010.149 | 0,00 ₺ | Var | ||
|
|
FSR adapter switch button support | 375 | 1832.011.513 | 0,00 ₺ | Var | ||
|
|

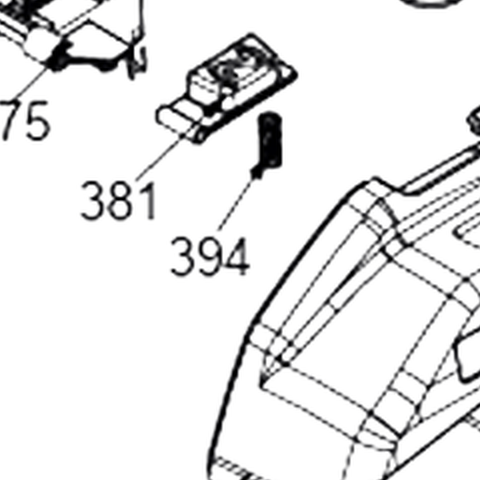

Welding button | 381 | 1832.011.322 | 0,00 ₺ | Var | ||
|
|
Compression spring | 394 | 1821.010.054 | 0,00 ₺ | Var | ||
|
|

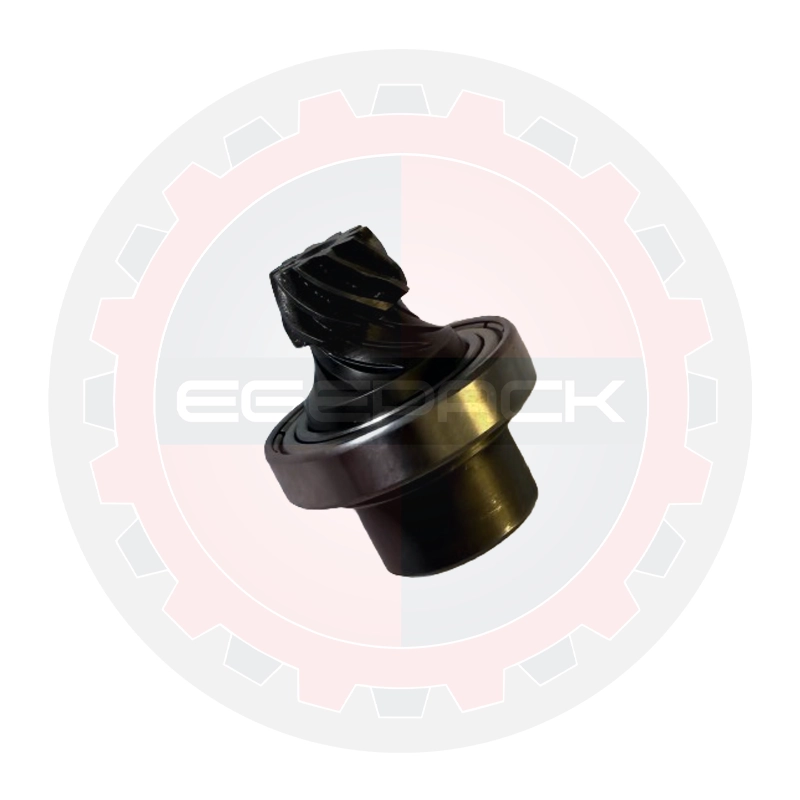

Bevel gear pinion assembly | 95 | 1821.060.134 | 0,00 ₺ | Var | ||
|
|

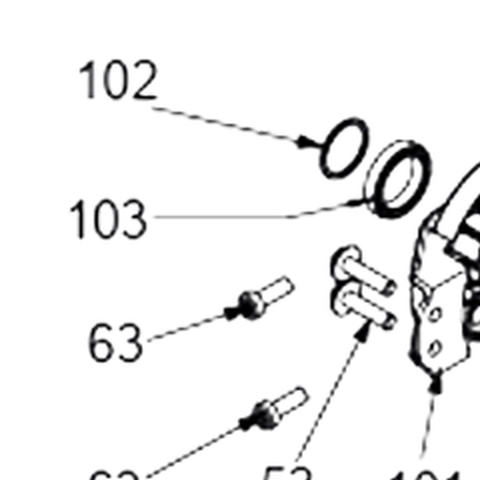

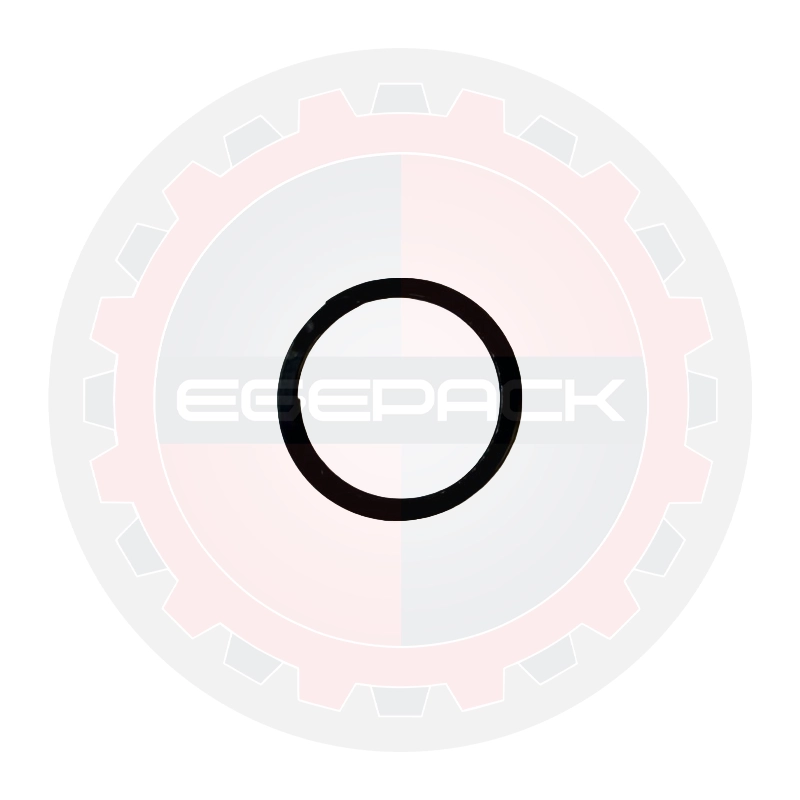

Retaining ring | 102 | 1832.039.349 | 0,00 ₺ | Var | ||
|
|

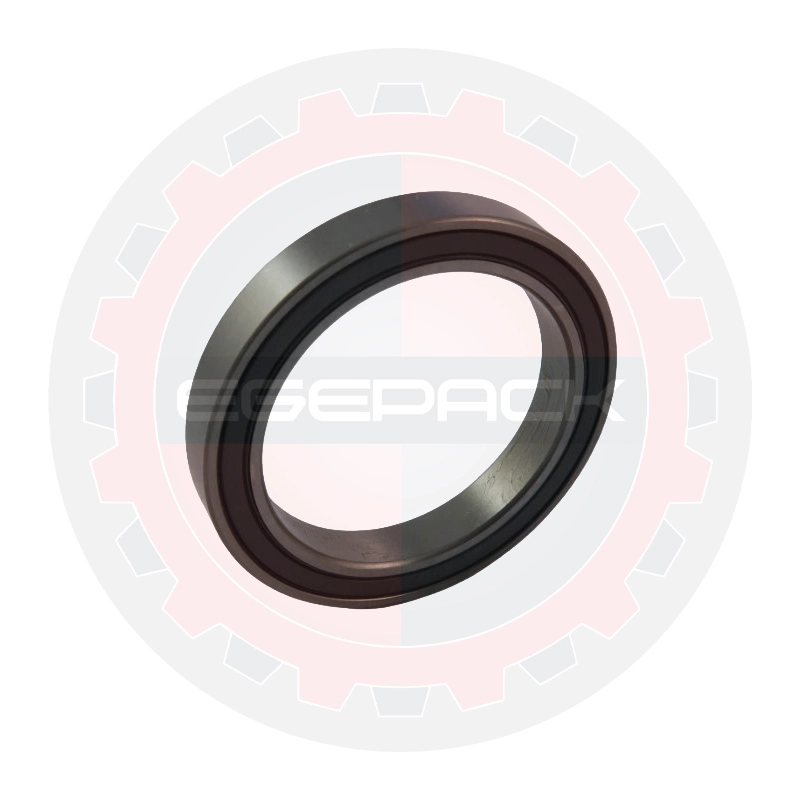

Radial deep groove ball bearing | 103 | 1930.170.154 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 63 | 1913.904.125 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 63 | 1913.904.125 | 0,00 ₺ | Var | ||
|
|
Pan head screw (ecosyn-fix) | 53 | 1912.614.204 | 0,00 ₺ | Var | ||
|
|

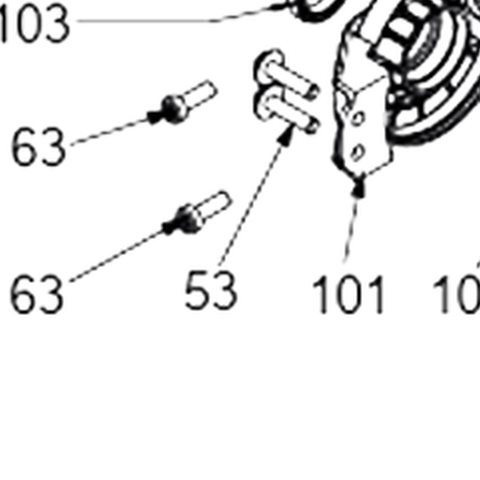

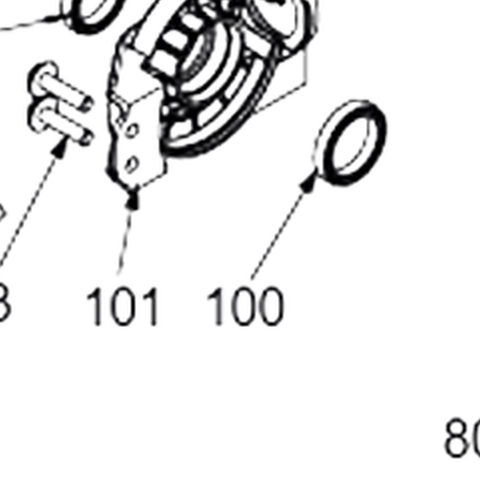

Carrier | 101 | 1832.011.522 | 0,00 ₺ | Var | ||
|
|
Radial deep groove ball bearing | 100 | 1930.170.170 | 0,00 ₺ | Var | ||
|
|

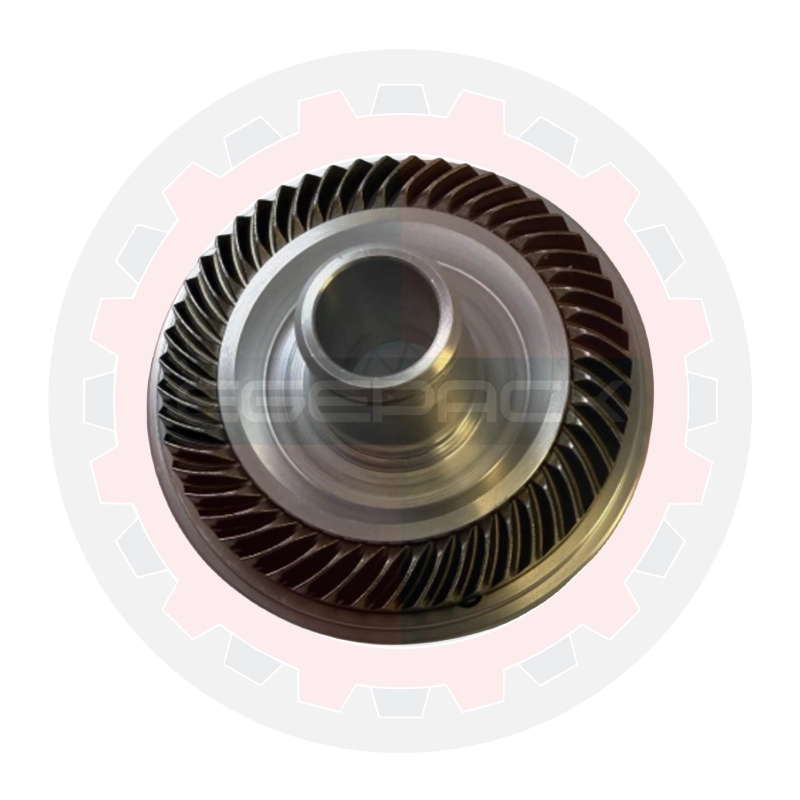

Bevel gear assembly | 80 | 1821.060.125 | 0,00 ₺ | Var | ||
|
|
Coupling assembly | 70 | 1832.039.348 | 0,00 ₺ | Var | ||
|
|
Housing shell set | 350 | 1832.011.525 | 0,00 ₺ | Var | ||
|
|

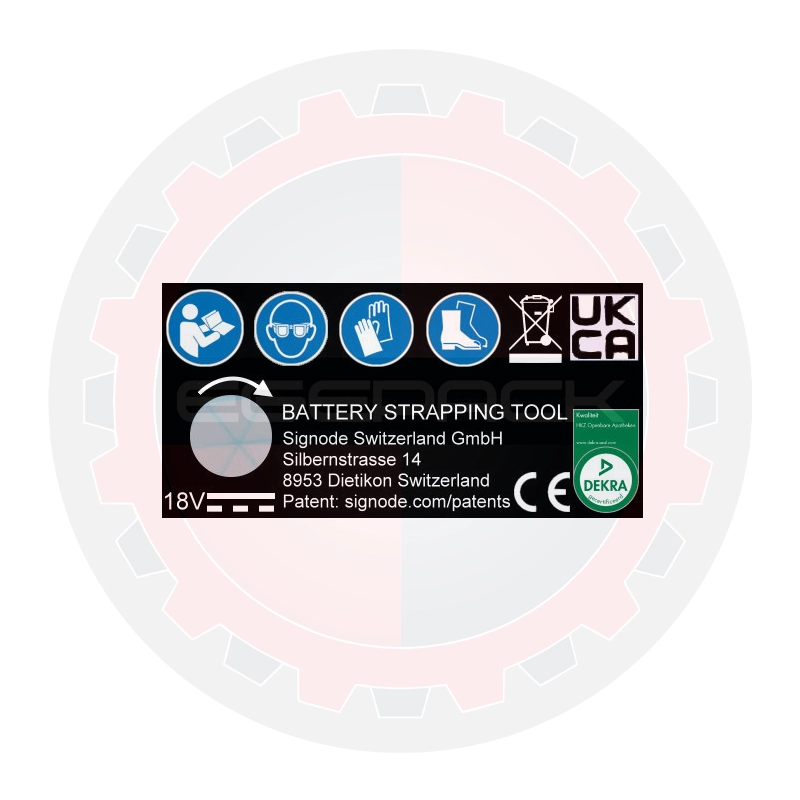

Type plate 16 | 402 | 1821.091.165 | 0,00 ₺ | Var | ||
|
|
Mandatory sign | 401 | 1821.091.169 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 332 | 1913.903.104 | 0,00 ₺ | Var | ||
|
|

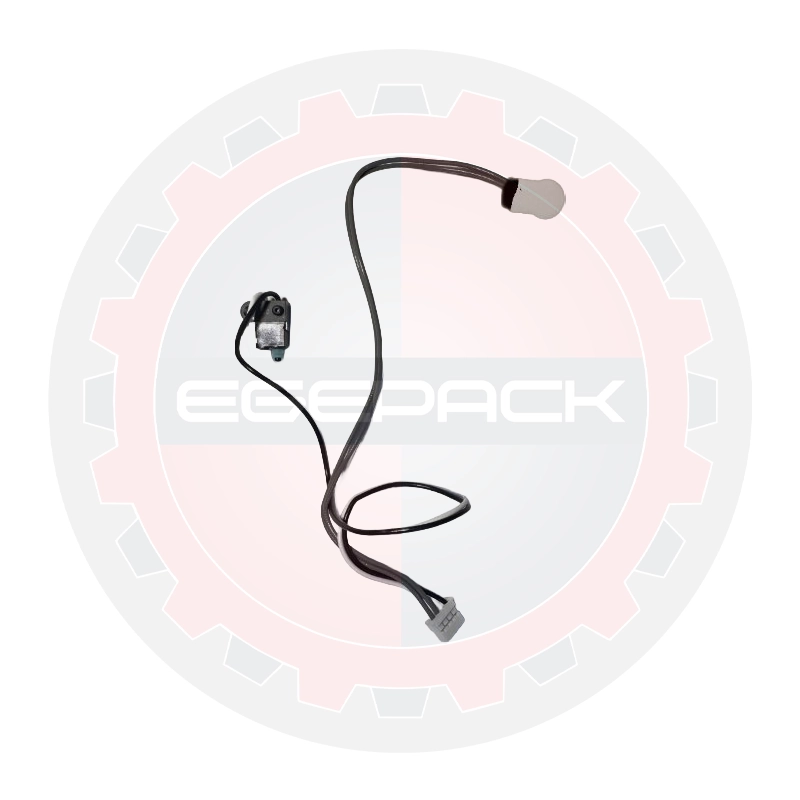

Mechanical cable harness | 384 | 1821.151.080 | 0,00 ₺ | Var | ||
|
|

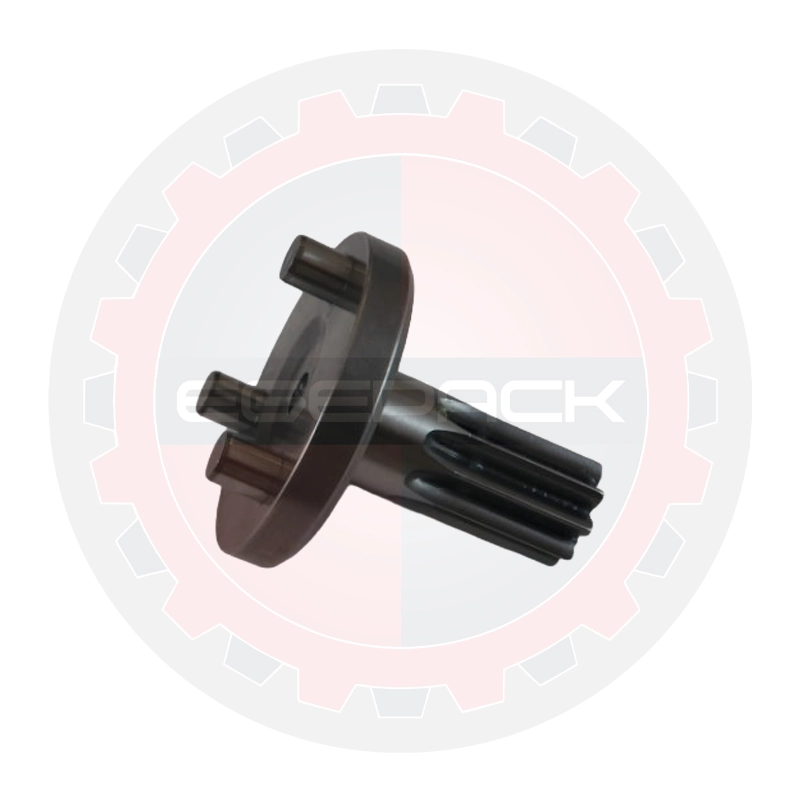

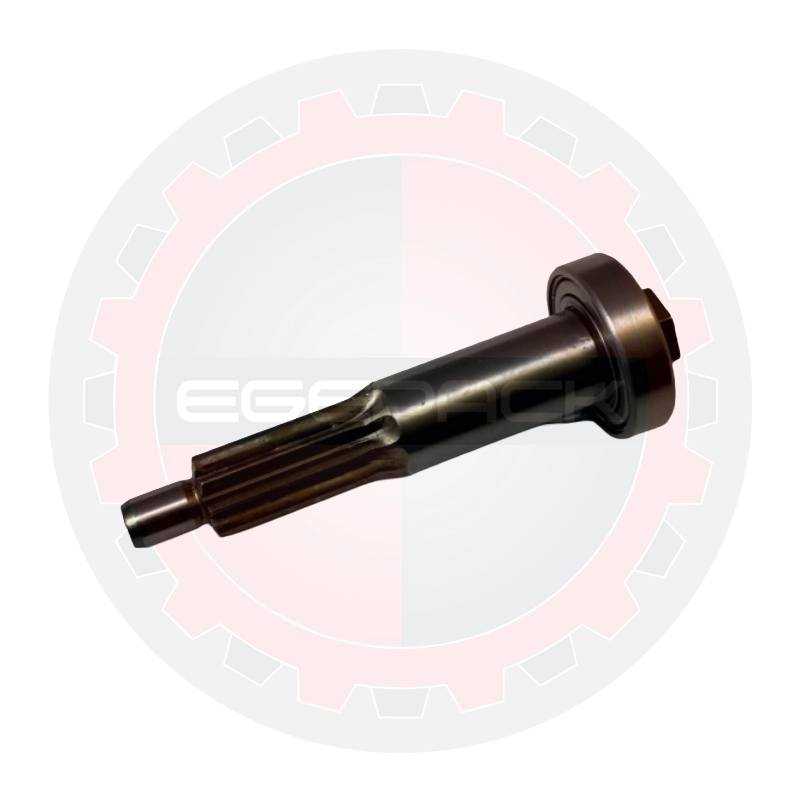

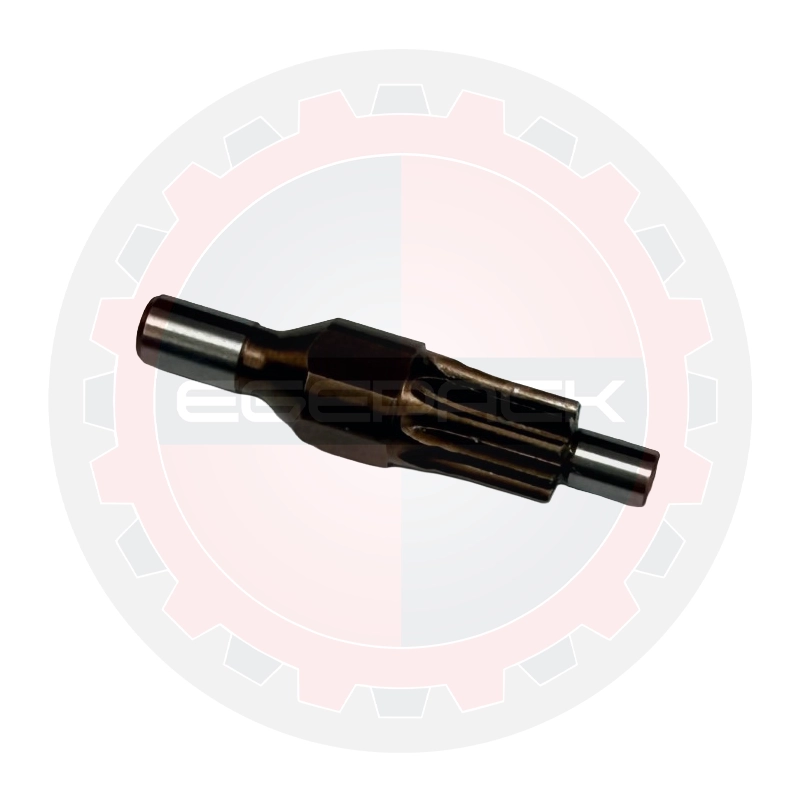

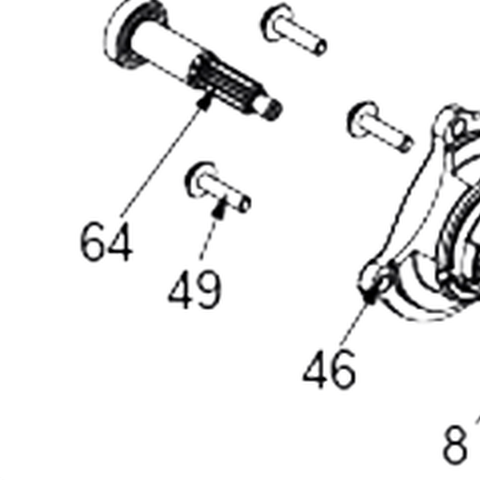

Pinion shaft assembly | 64 | 1821.060.142 | 0,00 ₺ | Var | ||
|
|
Pan head screw (ecosyn-fix) | 49 | 1912.614.164 | 0,00 ₺ | Var | ||
|
|
Cover unit | 46 | 1832.039.354 | 0,00 ₺ | Var | ||
|
|

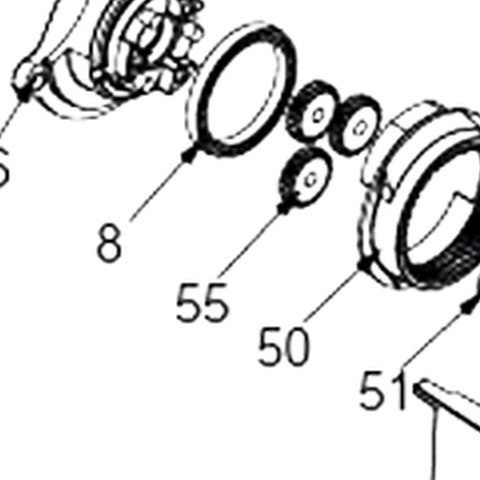

Radial deep groove ball bearing | 8 | 1930.170.302 | 0,00 ₺ | Var | ||
|
|

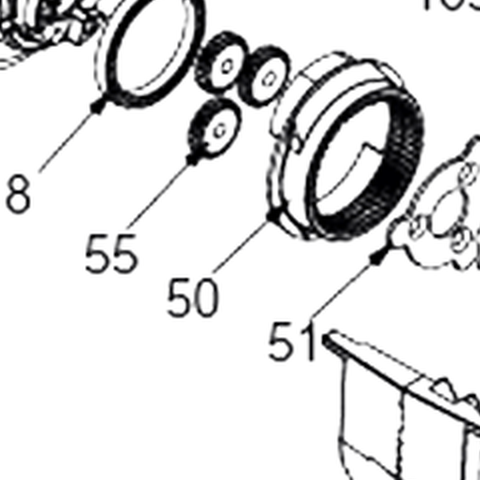

Planet gear | 55 | 1821.060.120 | 0,00 ₺ | Var | ||
|
|

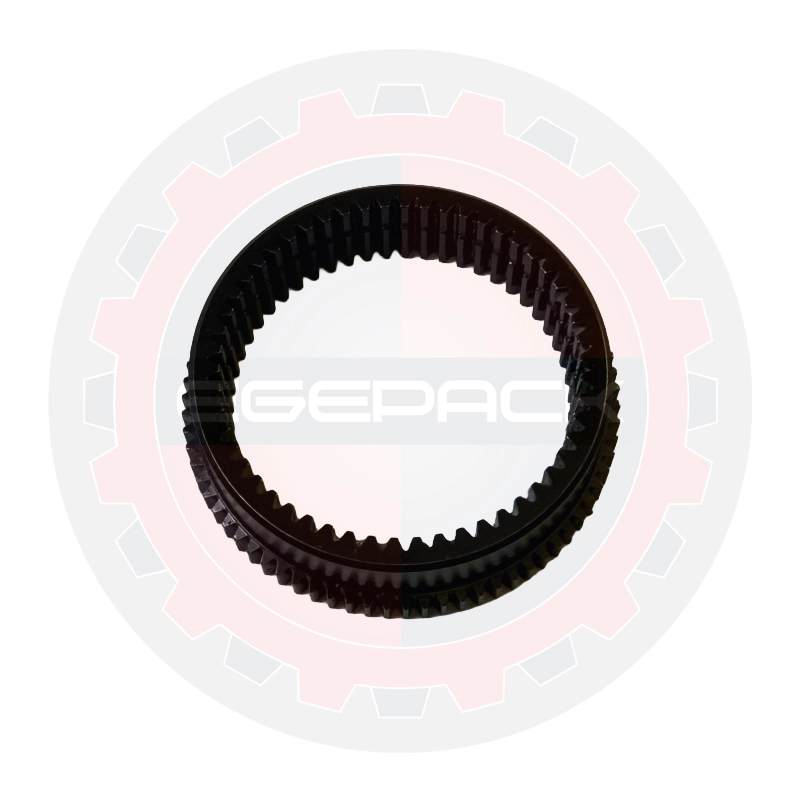

Ring gear | 50 | 1832.039.317 | 0,00 ₺ | Var | ||
|
|

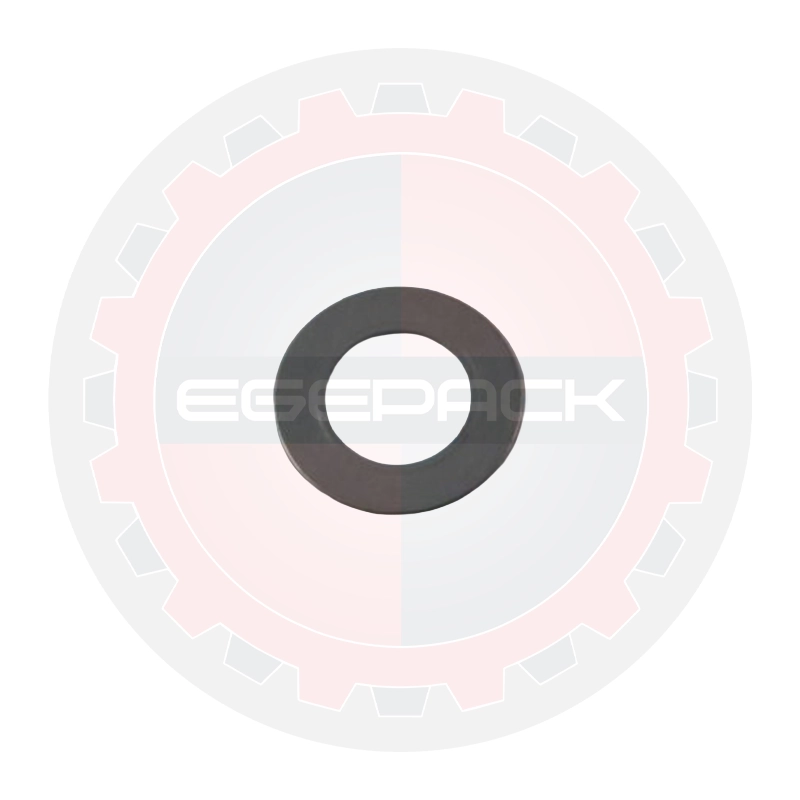

Washer | 51 | 1832.039.318 | 0,00 ₺ | Var | ||
|
|
Front cover (Signode) | 143 | 1832.011.514 | 0,00 ₺ | Var | ||
|
|

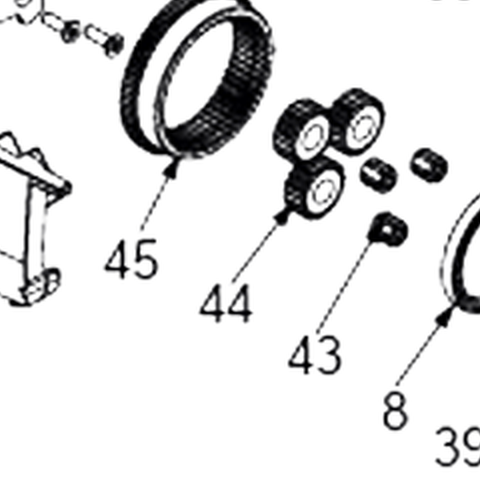

Ring gear | 45 | 1821.060.121 | 0,00 ₺ | Var | ||
|
|
Planet gear | 44 | 1821.060.118 | 0,00 ₺ | Var | ||
|
|

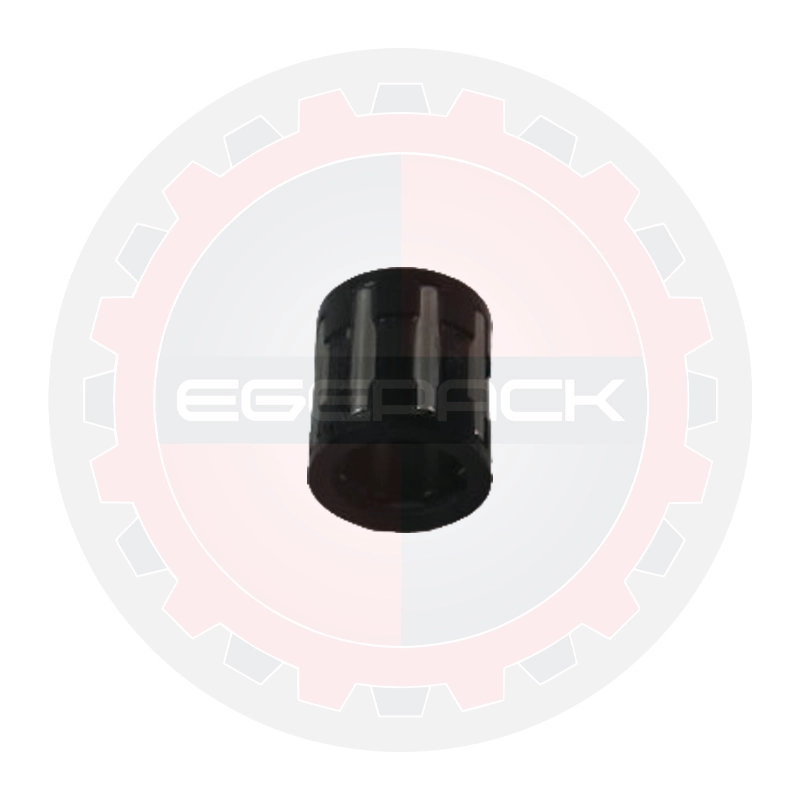

Needle cage | 43 | 1933.404.071 | 0,00 ₺ | Var | ||
|
|
Radial deep groove ball bearing | 8 | 1930.170.302 | 0,00 ₺ | Var | ||
|
|

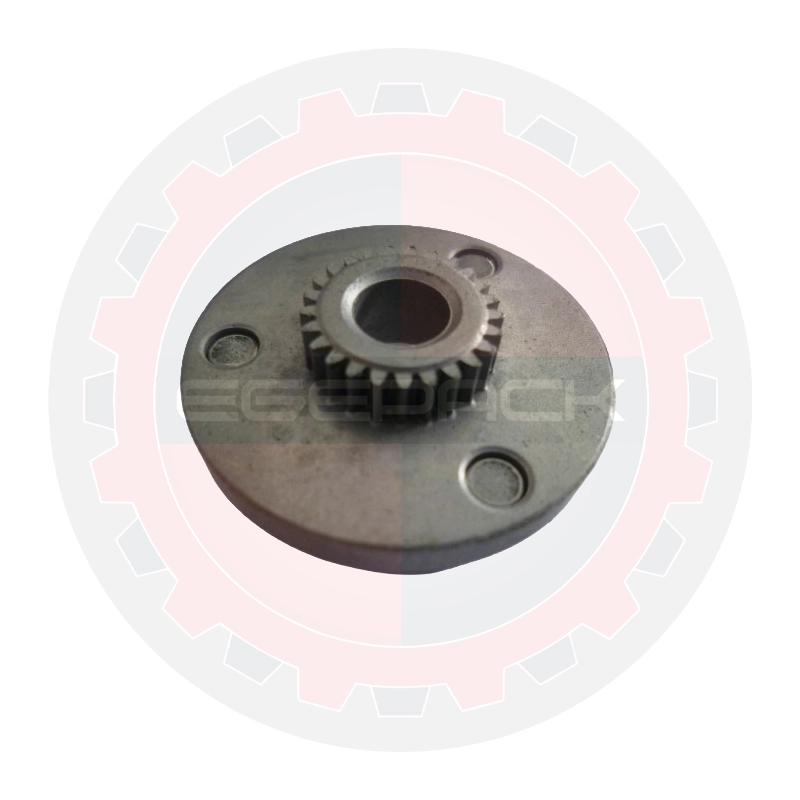

Planet carrier assembly | 39 | 1821.060.127 | 0,00 ₺ | Var | ||
|
|
Shim washer | 35 | 1917.411.125 | 0,00 ₺ | Var | ||
|
|

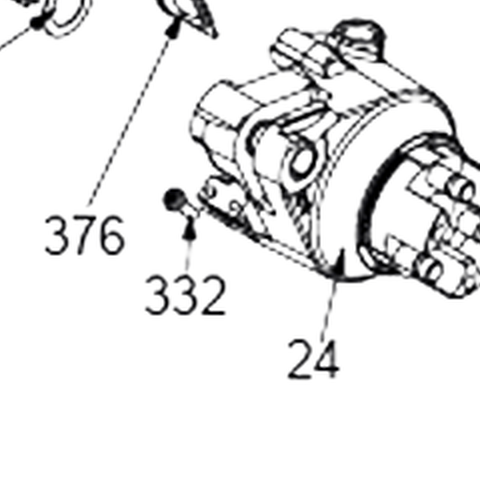

Cover | 376 | 1832.011.499 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 332 | 1913.903.104 | 0,00 ₺ | Var | ||
|
|
Gearbox housing complete 13/16 mm | 24 | 1832.039.328 | 0,00 ₺ | Var | ||
|
|
Radial deep groove ball bearing | 38 | 1930.180.356 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 63 | 1913.904.125 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 239 | 1913.904.354 | 0,00 ₺ | Var | ||
|
|

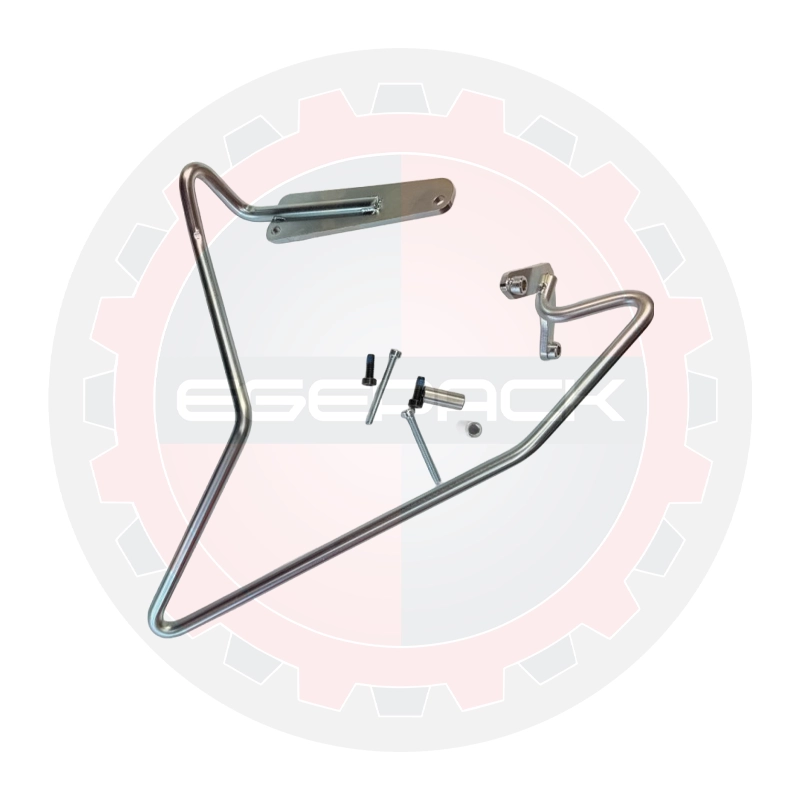

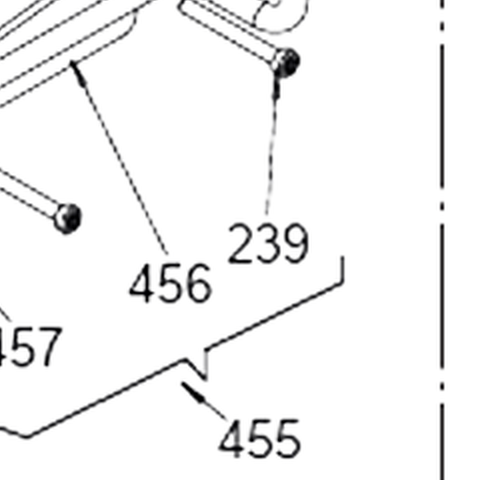

Suspension bracket set | 455 | 2189.031 | 0,00 ₺ | Var | ||
|
|
Torx countersunk screw | 122 | 1912.204.064 | 0,00 ₺ | Var | ||
|
|

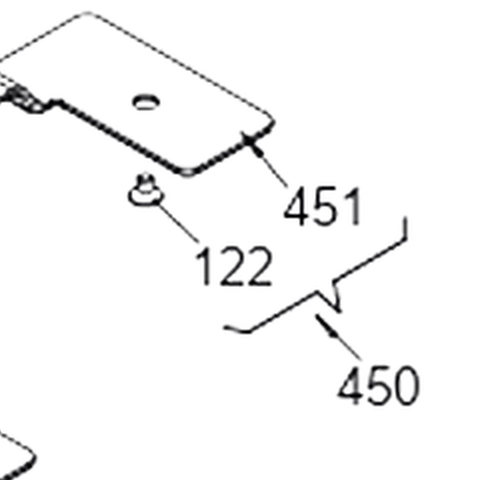

Protective plate set (option) | 450 | 2189.03 | 0,00 ₺ | Var | ||
|
|

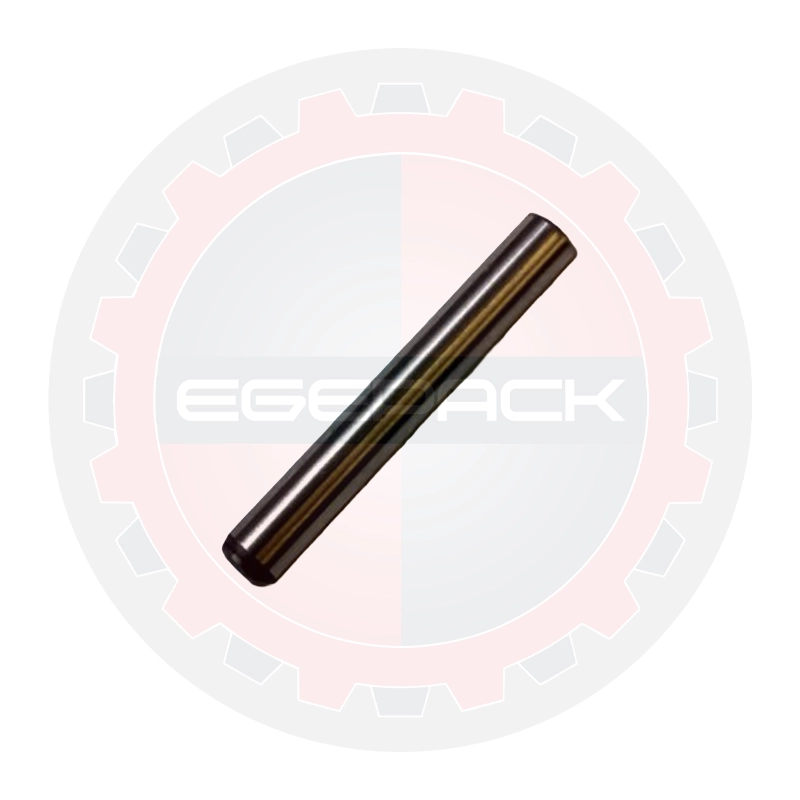

Dowel pin | 14 | 1921.308.661 | 0,00 ₺ | Var | ||
|
|

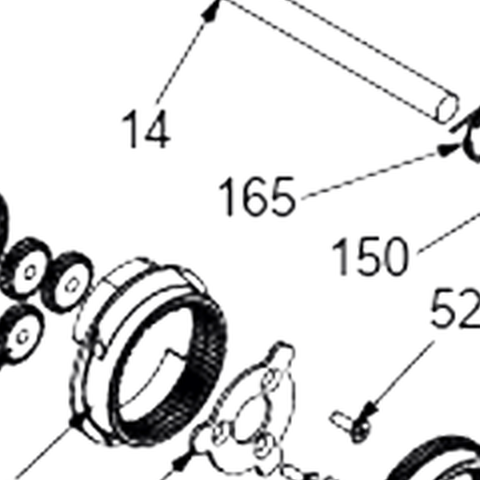

Torsion spring | 165 | 1821.012.054 | 0,00 ₺ | Var | ||
|
|
Switch cam assembly | 150 | 1832.031.142 | 0,00 ₺ | Var | ||
|
|
Torx countersunk PT screw | 52 | 1914.930.128 | 0,00 ₺ | Var | ||
|
|

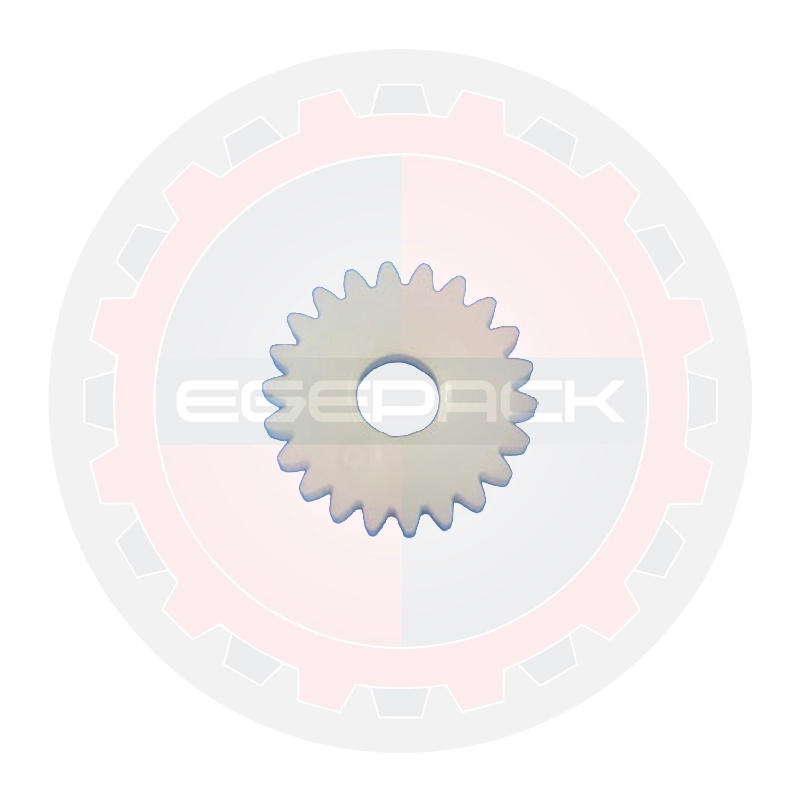

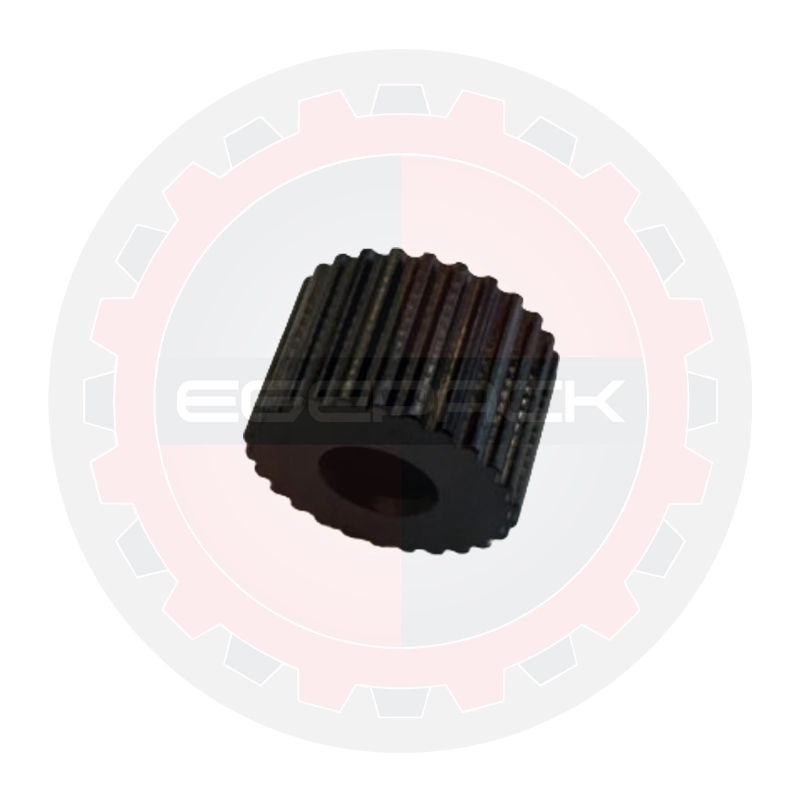

Spur gear | 68 | 1821.060.103 | 0,00 ₺ | Var | ||
|
|
Counterholder | 325 | 1832.011.506 | 0,00 ₺ | Var | ||
|
|

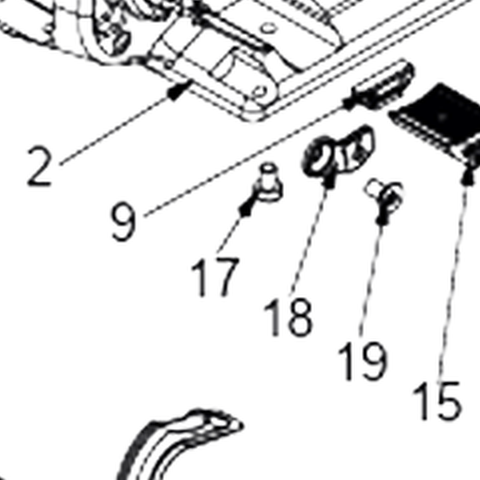

Pressed base plate 13/16 mm | 2 | 1832.011.544 | 0,00 ₺ | Var | ||
|
|
Support 13/16 mm (tension wheel support) | 9 | 1832.031.141 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 17 | 1913.904.064 | 0,00 ₺ | Var | ||
|
|
Inner front belt guide 13 mm | 18 | 1831.031.150 | 0,00 ₺ | Var | ||
|
|
Inner front belt guide 16 mm | 18 | 1832.031.152 | 0,00 ₺ | Var | ||
|
|
Torx countersunk screw | 19 | 1912.204.088 | 0,00 ₺ | Var | ||
|
|

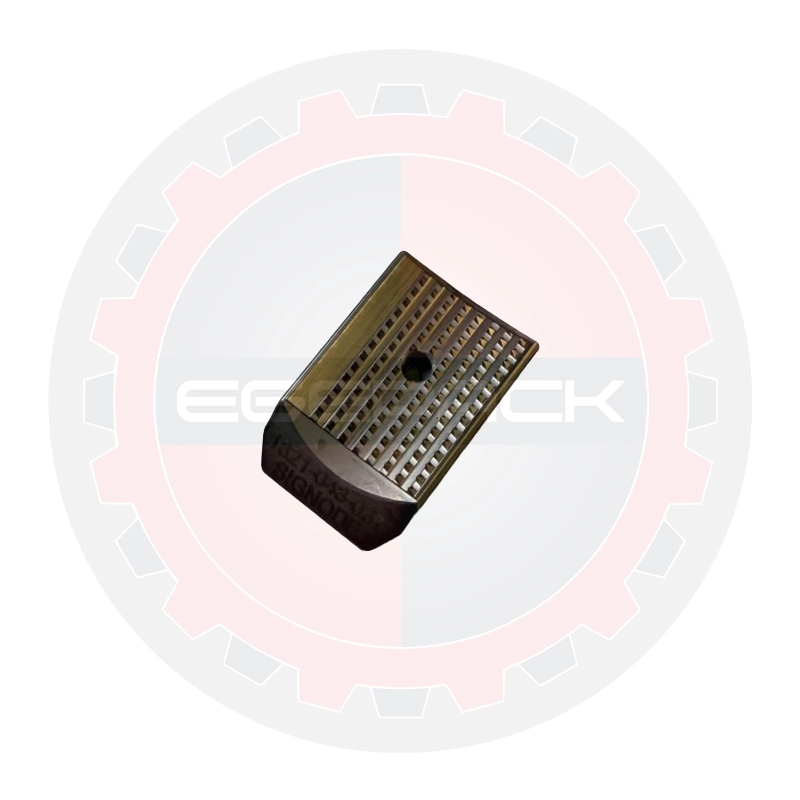

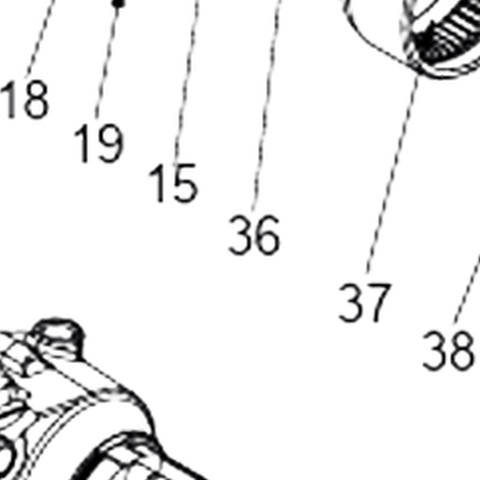

Tooth plate 13/16 mm | 15 | 1821.048.037 | 0,00 ₺ | Var | ||
|
|
Planet gear | 36 | 1821.060.115 | 0,00 ₺ | Var | ||
|
|
Tension wheel 13/16 mm | 37 | 1821.047.047 | 0,00 ₺ | Var | ||
|
|
Radial deep groove ball bearing | 38 | 1930.180.356 | 0,00 ₺ | Var | ||
|
|
Pressed tension wheel cover 13/16 mm | 105 | 1832.011.546 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 121 | 1913.904.164 | 0,00 ₺ | Var | ||
|
|

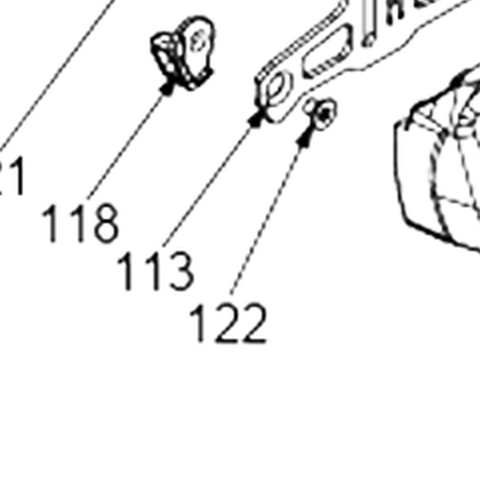

Outer front belt guide 13 mm | 118 | 1832.031.154 | 0,00 ₺ | Var | ||
|
|
Outer front belt guide 16 mm | 118 | 1832.031.158 | 0,00 ₺ | Var | ||
|
|
Belt guide | 113 | 1832.031.148 | 0,00 ₺ | Var | ||
|
|
Torx countersunk screw | 122 | 1912.204.064 | 0,00 ₺ | Var | ||
|
|
Socket head cap screw | 112 | 1821.027.063 | 0,00 ₺ | Var | ||
|
|

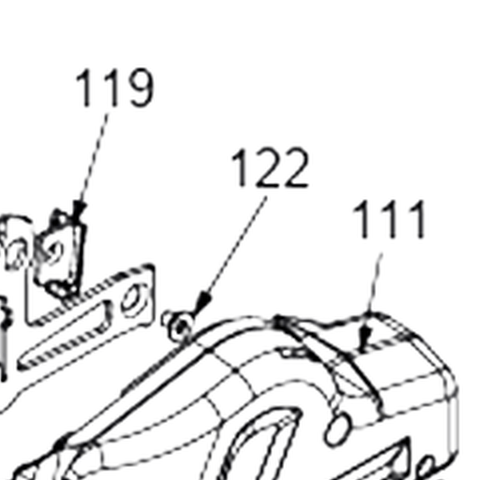

Side cover | 111 | 1832.011.516 | 0,00 ₺ | Var | ||
|
|
Torx countersunk screw | 122 | 1912.204.064 | 0,00 ₺ | Var | ||
|
|
Outer rear belt guide 16 mm | 119 | 1832.031.157 | 0,00 ₺ | Var | ||
|
|

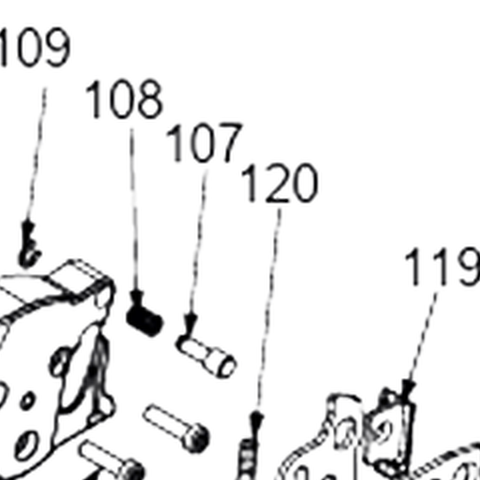

Compression spring | 120 | 1821.010.189 | 0,00 ₺ | Var | ||
|
|
Bolt | 107 | 1821.031.071 | 0,00 ₺ | Var | ||
|
|
Compression spring | 108 | 1821.010.190 | 0,00 ₺ | Var | ||
|
|
Retaining washer | 109 | 1920.103.062 | 0,00 ₺ | Var | ||
|
|

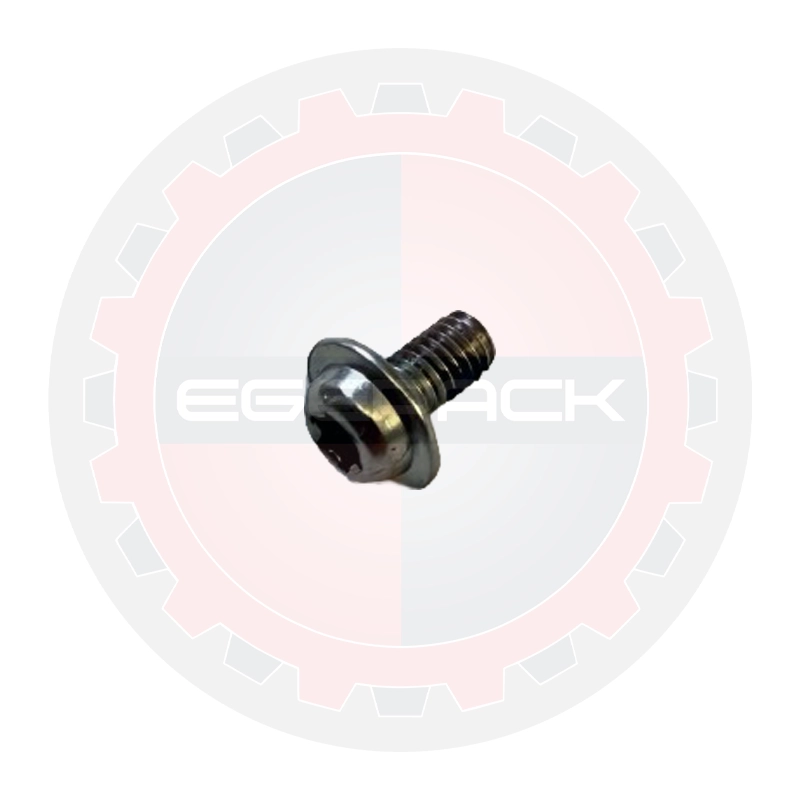

Flanged pan head screw | 142 | 1913.704.068 | 0,00 ₺ | Var | ||
|
|

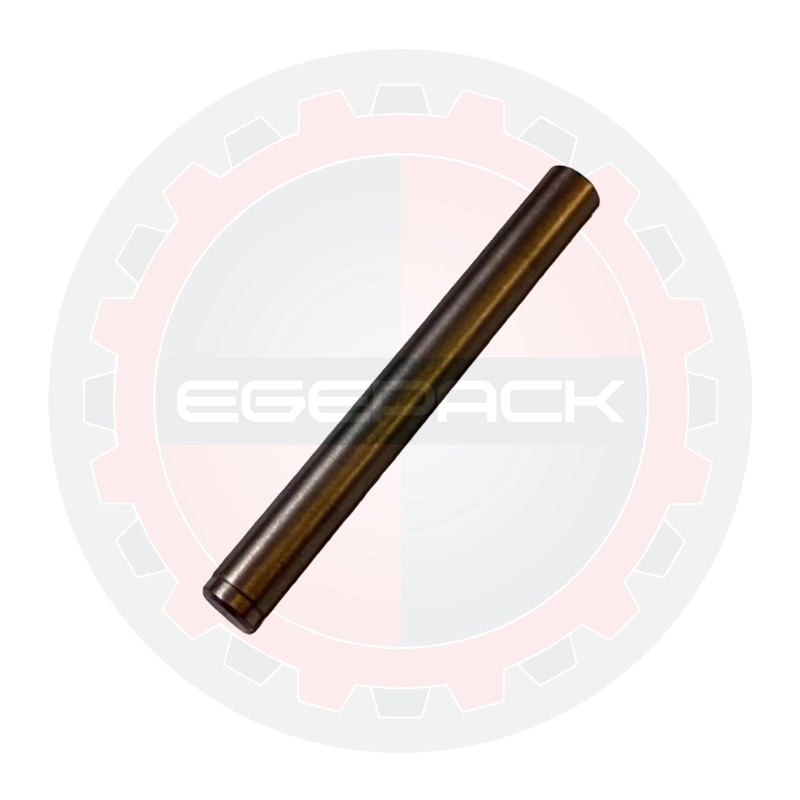

Pin | 16 | 1821.030.072 | 0,00 ₺ | Var | ||
|
|
Lower tooth plate | 13 | 1832.022.109 | 0,00 ₺ | Var | ||
|
|
Torx countersunk screw | 19 | 1912.204.088 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 332 | 1913.903.104 | 0,00 ₺ | Var | ||
|
|

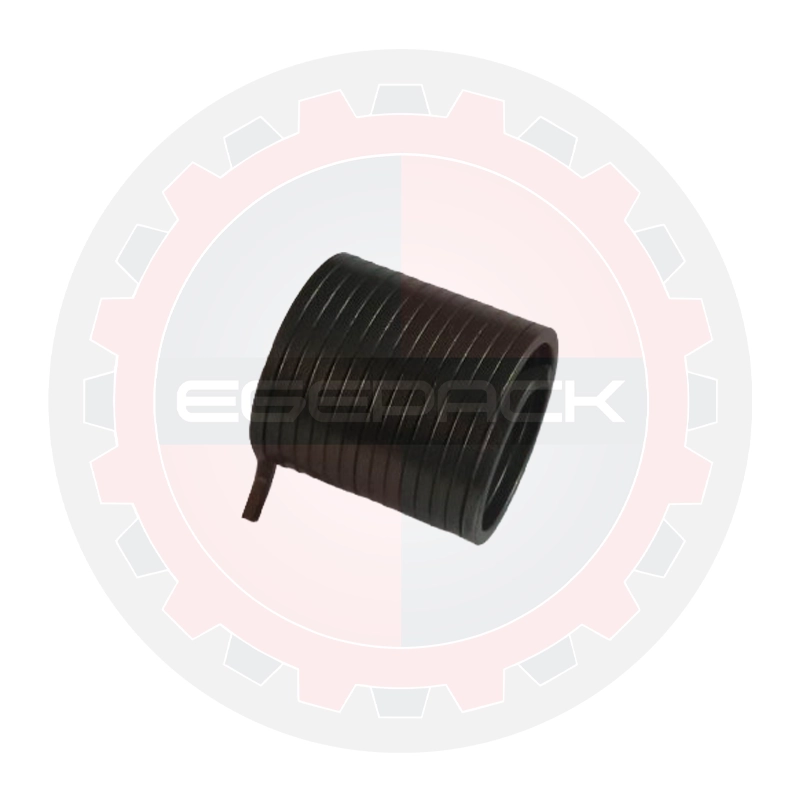

Wrap spring | 144 | 1821.012.056 | 0,00 ₺ | Var | ||
|
|
Blocking gear | 145 | 1832.039.265 | 0,00 ₺ | Var | ||
|
|
Shim ring | 147 | 1917.411.085 | 0,00 ₺ | Var | ||
|
|
Sleeve | 146 | 1832.022.272 | 0,00 ₺ | Var | ||
|
|
Clutch shaft | 148 | 1821.060.126 | 0,00 ₺ | Var | ||
|
|

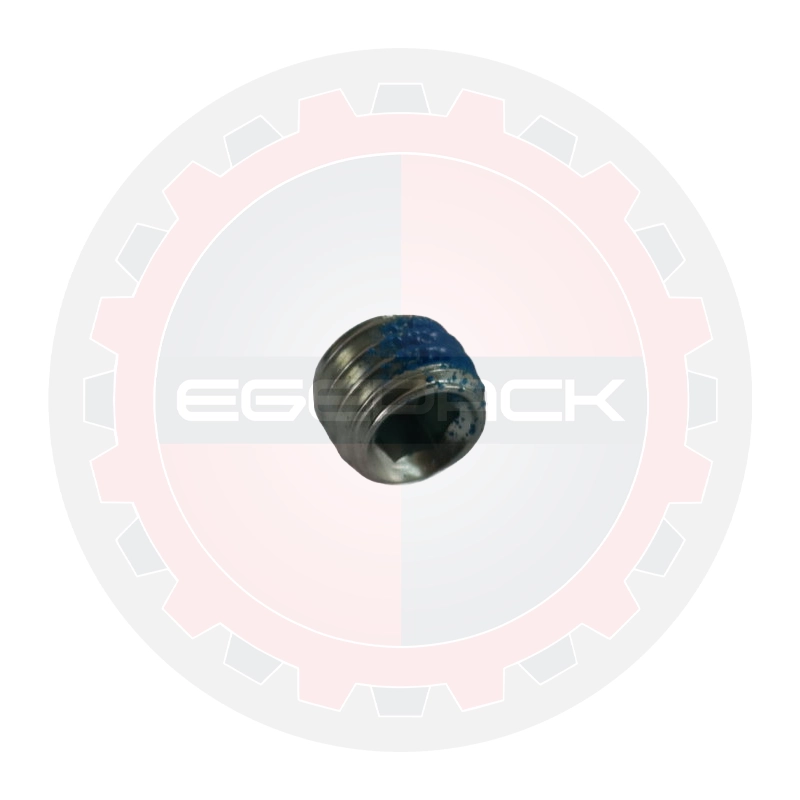

Set screw | 130 | 1910.403.052 | 0,00 ₺ | Var | ||
|
|

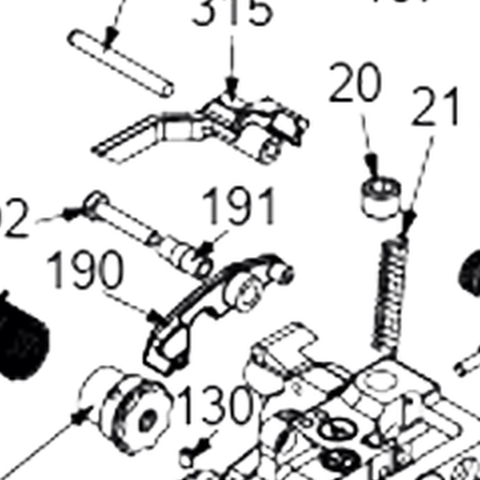

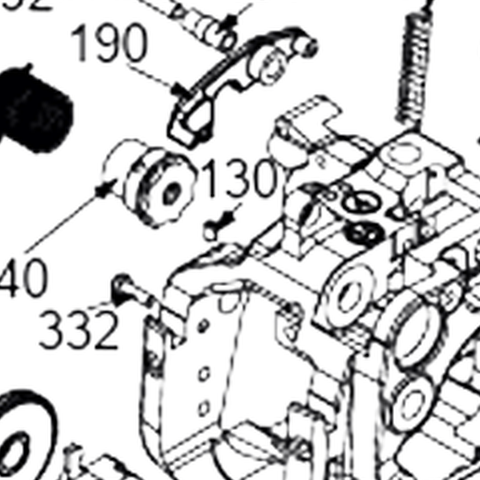

Shift lever | 190 | 1832.011.539 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 192 | 1913.904.204 | 0,00 ₺ | Var | ||
|
|
Flanged bushing | 191 | 1821.020.244 | 0,00 ₺ | Var | ||
|
|

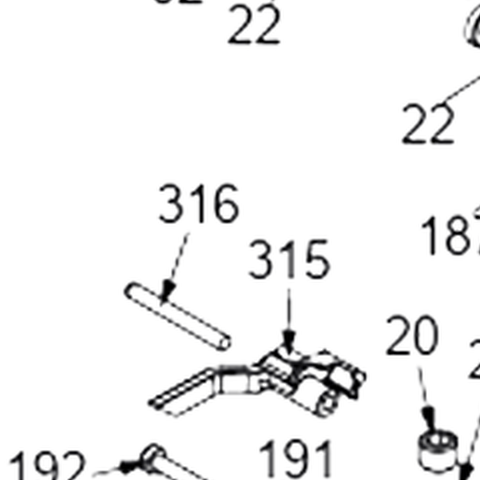

Cylinder pin | 316 | 1921.304.361 | 0,00 ₺ | Var | ||
|
|
Changeover lever | 315 | 1832.022.329 | 0,00 ₺ | Var | ||
|
|

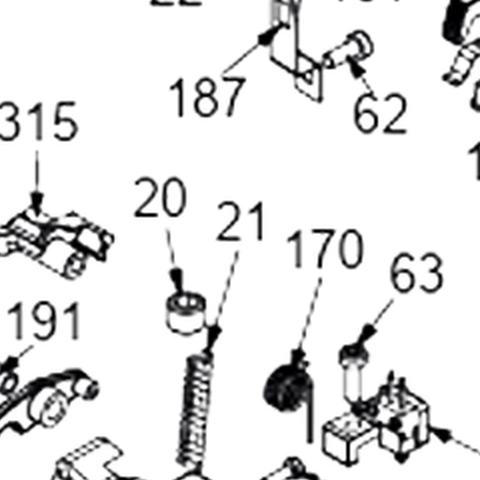

Set screw | 20 | 1910.410.084 | 0,00 ₺ | Var | ||
|
|
Compression spring | 21 | 1821.010.198 | 0,00 ₺ | Var | ||
|
|
Torsion spring | 170 | 1821.012.046 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 63 | 1913.904.125 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 332 | 1913.903.104 | 0,00 ₺ | Var | ||
|
|

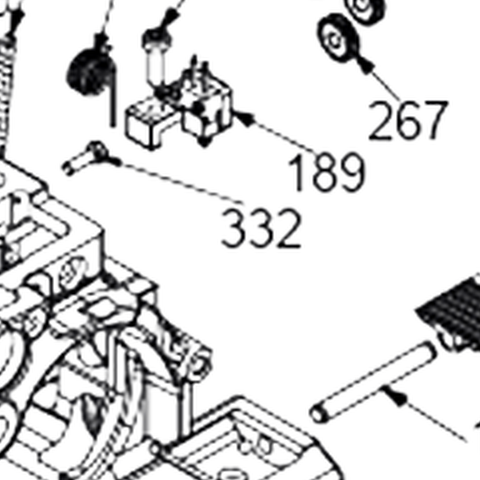

Switch mount | 189 | 1832.011.374 | 0,00 ₺ | Var | ||
|
|

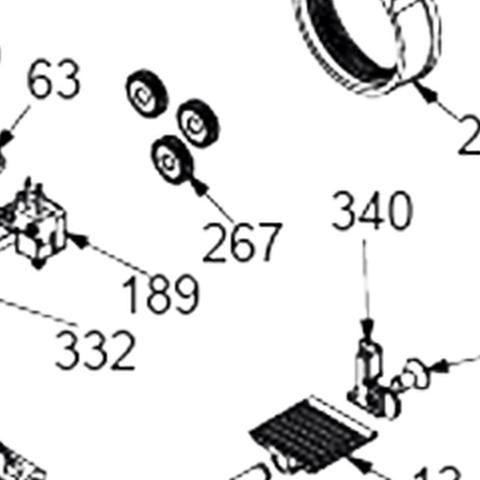

Planet gear | 267 | 1821.060.023 | 0,00 ₺ | Var | ||
|
|
Inner rear belt guide 13 mm | 340 | 1832.041.037 | 0,00 ₺ | Var | ||
|
|
Inner rear belt guide 16 mm | 340 | 1832.041.035 | 0,00 ₺ | Var | ||
|
|

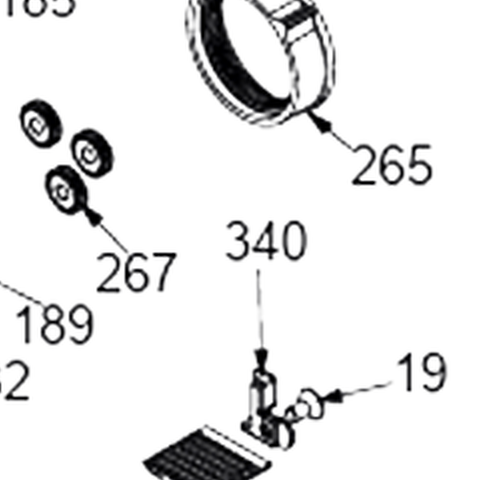

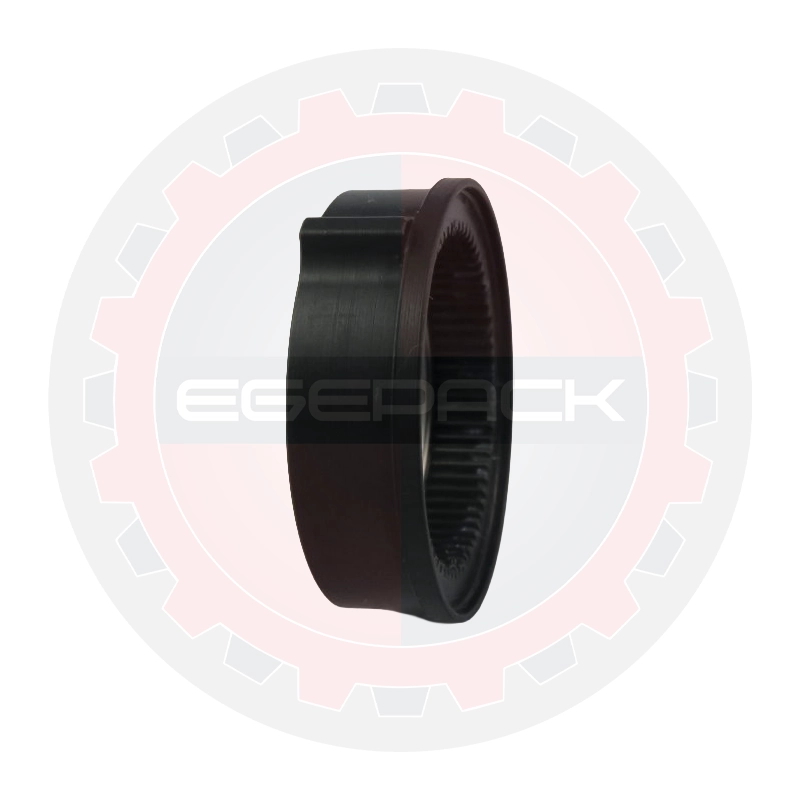

Eccentric cam | 265 | 1832.022.346 | 0,00 ₺ | Var | ||
|
|
Pan head screw | 185 | 1912.103.064 | 0,00 ₺ | Var | ||
|
|

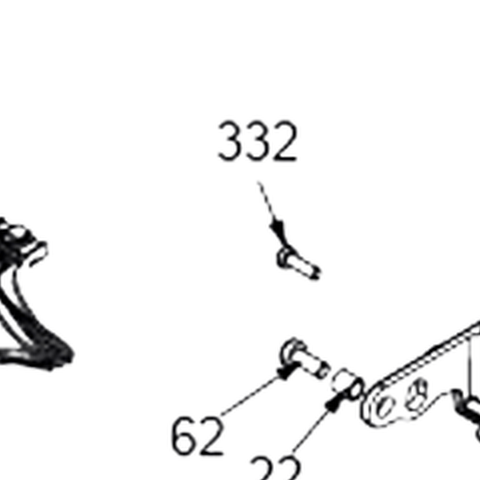

Torx socket head cap screw | 62 | 1913.904.104 | 0,00 ₺ | Var | ||
|
|

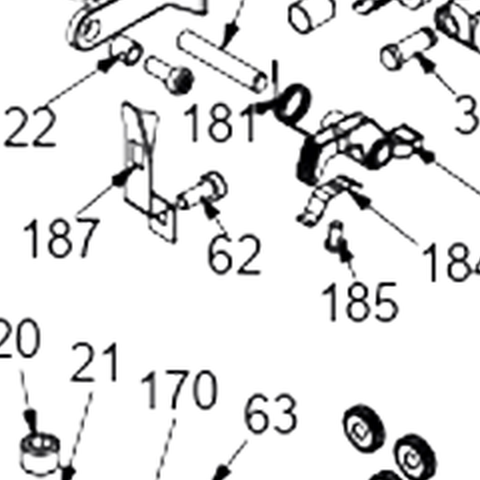

Leaf spring | 187 | 1821.013.015 | 0,00 ₺ | Var | ||
|
|

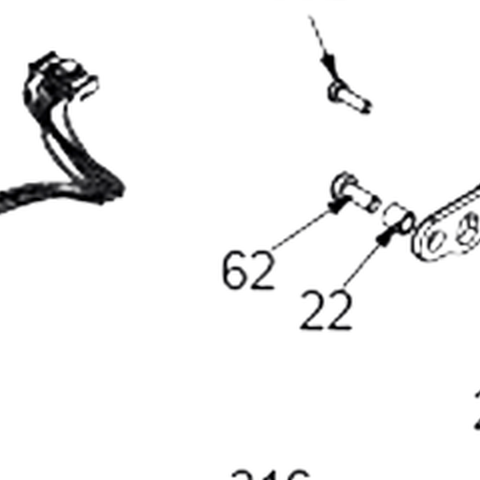

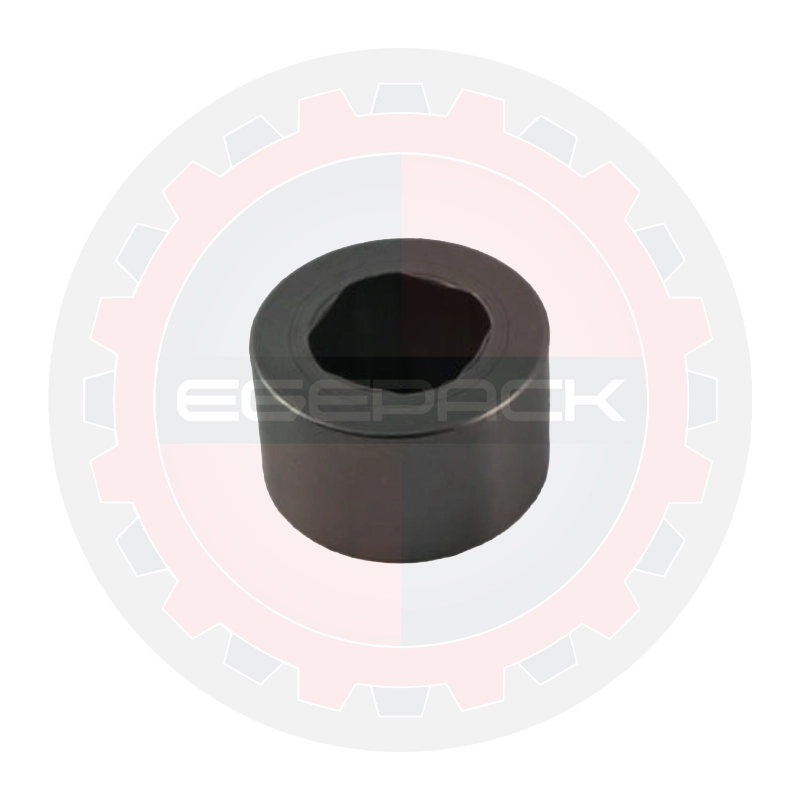

Bushing | 22 | 1831.011.200 | 0,00 ₺ | Var | ||
|
|
Bushing | 22 | 1831.011.200 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 62 | 1913.904.104 | 0,00 ₺ | Var | ||
|
|

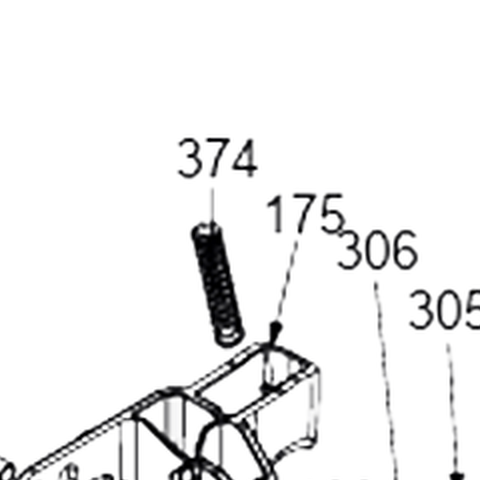

Compression spring | 374 | 1821.010.191 | 0,00 ₺ | Var | ||
|
|

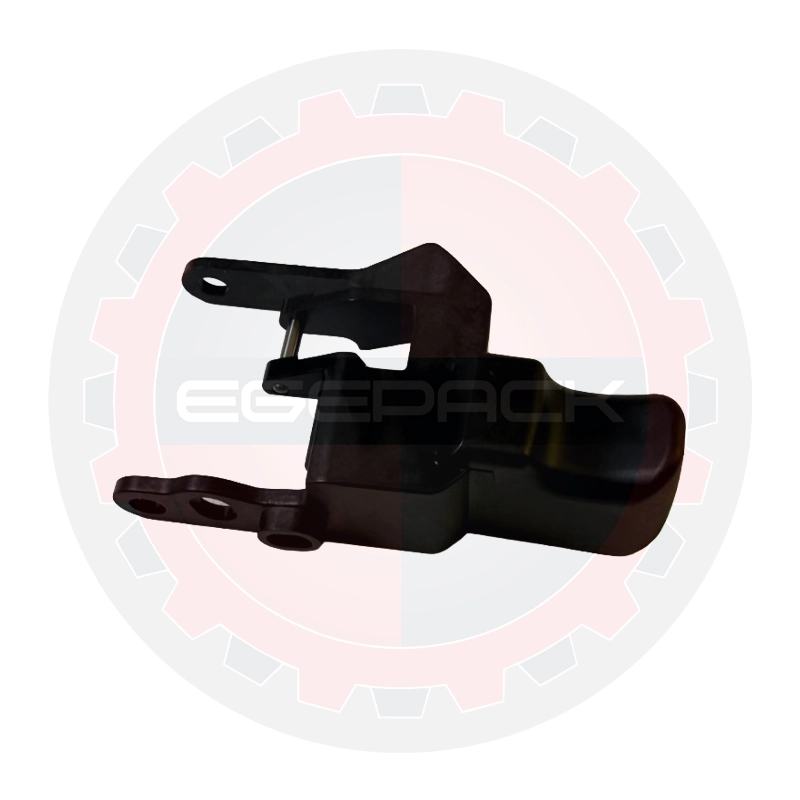

Trigger assembly | 175 | 1832.011.509 | 0,00 ₺ | Var | ||
|
|

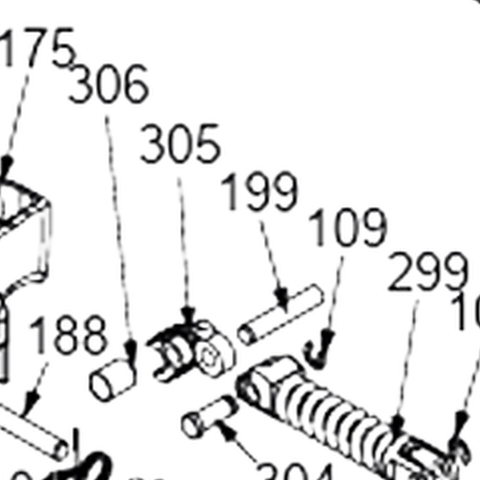

Rolling element | 306 | 1832.022.163 | 0,00 ₺ | Var | ||
|
|
Lever | 305 | 1832.022.335 | 0,00 ₺ | Var | ||
|
|
Cylinder pin | 199 | 1921.305.281 | 0,00 ₺ | Var | ||
|
|
Retaining washer | 109 | 1920.103.062 | 0,00 ₺ | Var | ||
|
|

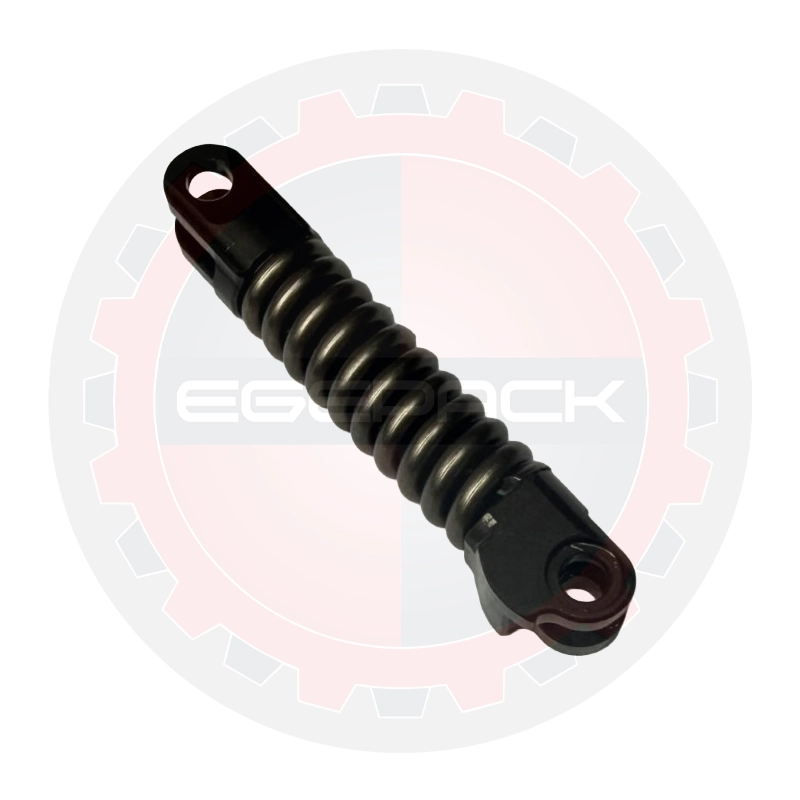

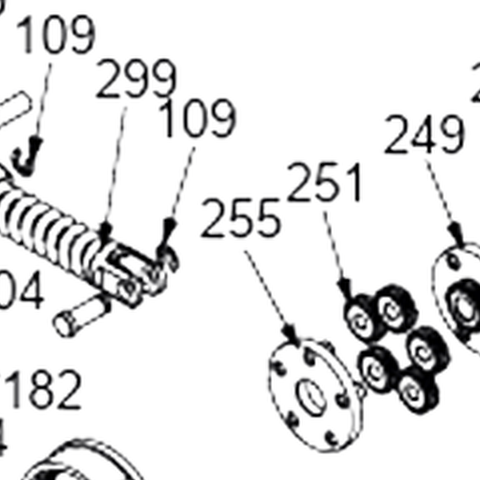

Spring assembly | 299 | 1821.010.187 | 0,00 ₺ | Var | ||
|
|
Retaining washer | 109 | 1920.103.062 | 0,00 ₺ | Var | ||
|
|
Planet carrier | 255 | 1832.039.357 | 0,00 ₺ | Var | ||
|
|
Planet gear | 251 | 1821.060.024 | 0,00 ₺ | Var | ||
|
|
Planet carrier | 249 | 1832.039.201 | 0,00 ₺ | Var | ||
|
|
Planet gear | 251 | 1821.060.024 | 0,00 ₺ | Var | ||
|
|
Ring | 261 | 1821.020.151 | 0,00 ₺ | Var | ||
|
|

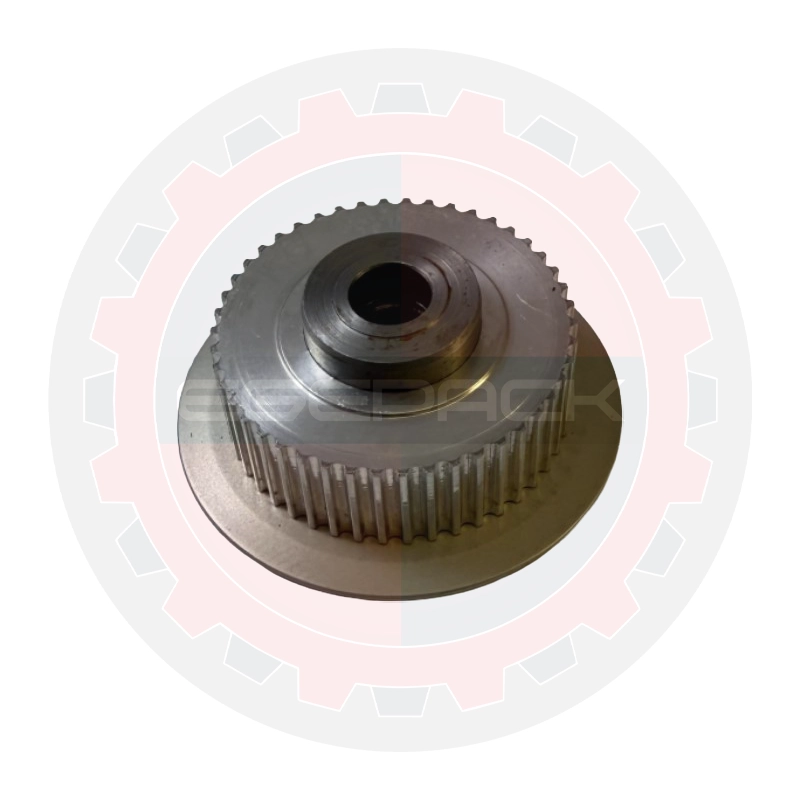

Belt pulley assembly | 210 | 1832.039.351 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 222 | 1913.903.064 | 0,00 ₺ | Var | ||
|
|

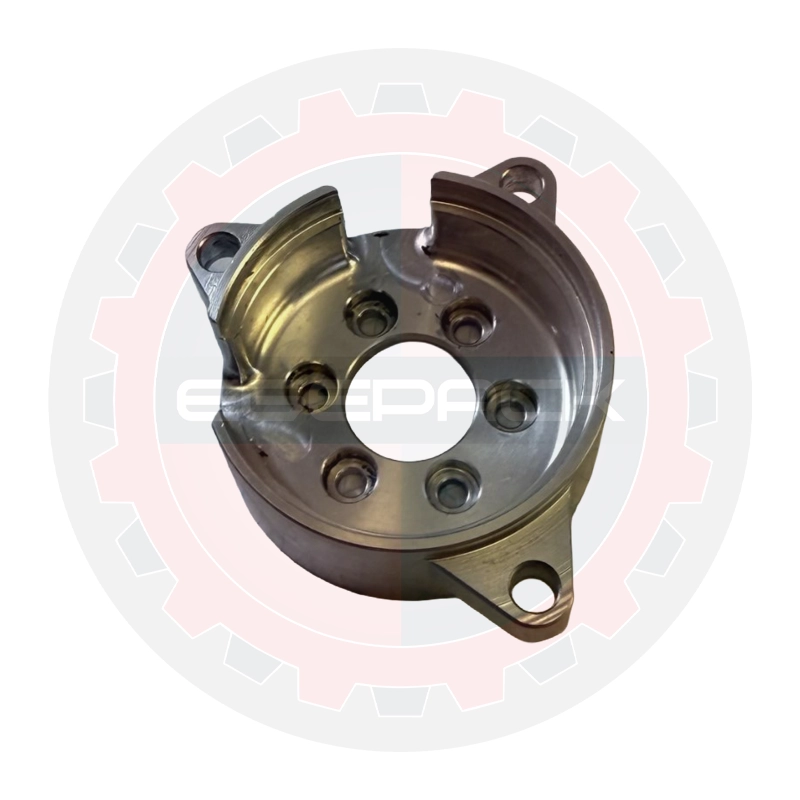

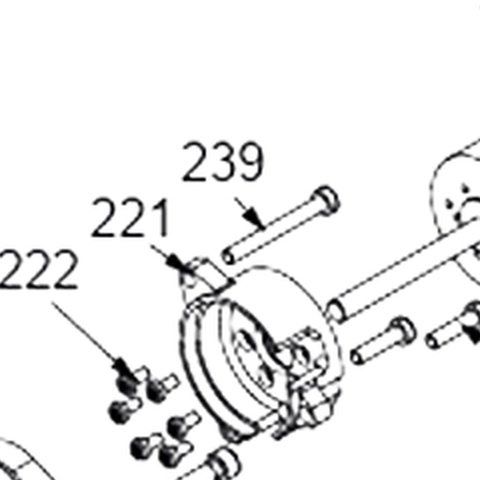

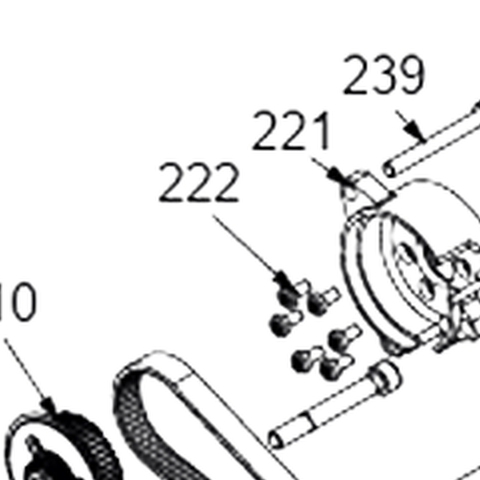

Motor mount | 221 | 1832.022.326 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 239 | 1913.904.354 | 0,00 ₺ | Var | ||
|
|

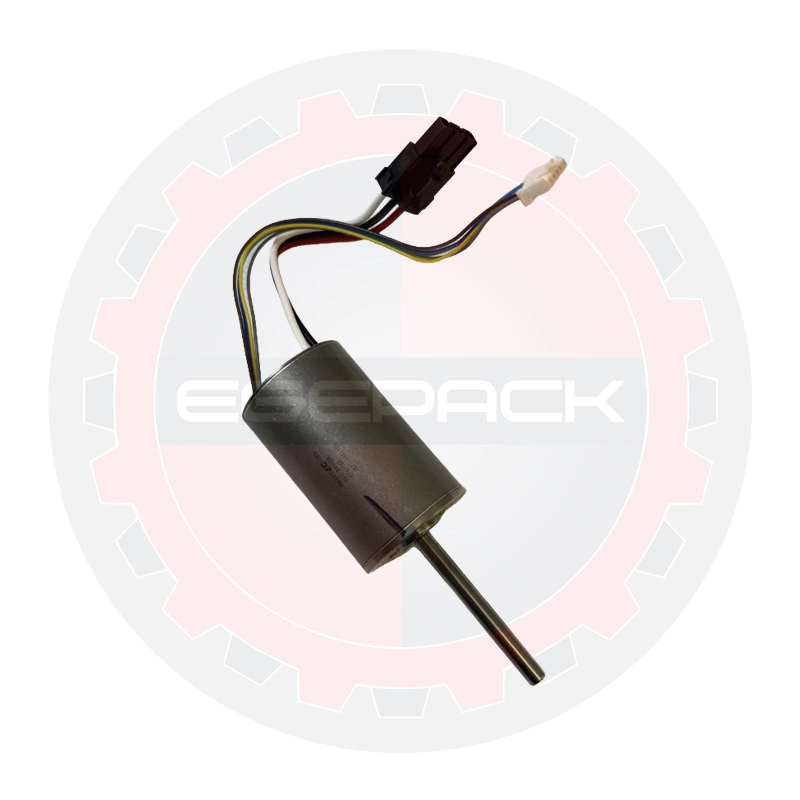

Motor | 225 | 1821.140.120 | 0,00 ₺ | Var | ||
|
|

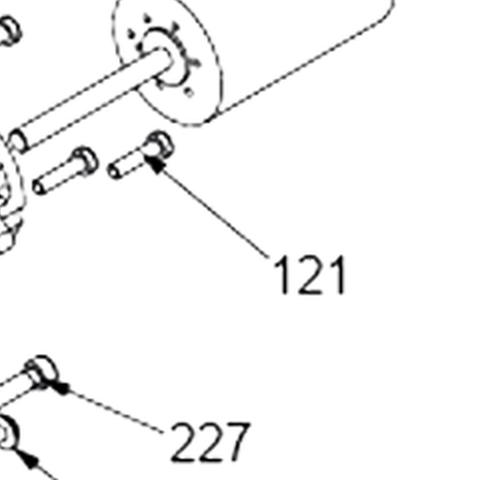

Torx socket head cap screw | 121 | 1913.904.164 | 0,00 ₺ | Var | ||
|
|
Screw | 227 | 1821.035.014 | 0,00 ₺ | Var | ||
|
|
Pan head screw (ecosyn-fix) | 205 | 1912.614.084 | 0,00 ₺ | Var | ||
|
|
Thrust washer | 204 | 1832.022.324 | 0,00 ₺ | Var | ||
|
|

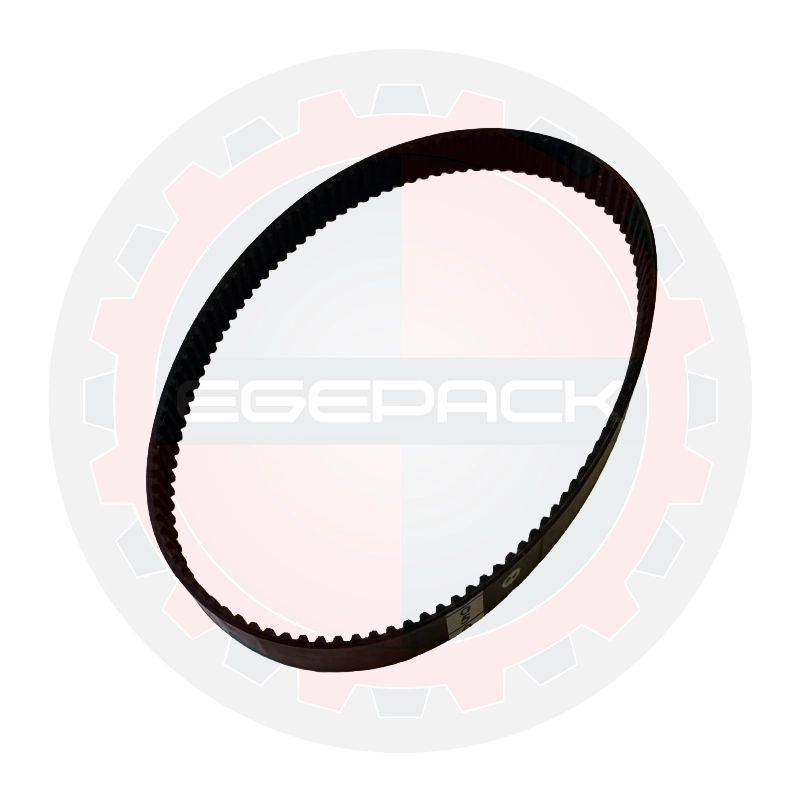

Toothed belt | 202 | 1821.067.024 | 0,00 ₺ | Var | ||
|
|
Pinion | 203 | 1821.066.065 | 0,00 ₺ | Var | ||
|
|
Bearing support assembly 13/16 mm | 200 | 1832.022.347 | 0,00 ₺ | Var | ||
|
|
Eccentric shaft | 280 | 1832.022.318 | 0,00 ₺ | Var | ||
|
|
Torx socket head cap screw | 63 | 1913.904.125 | 0,00 ₺ | Var | ||
|
|
Flanged bushing | 286 | 1832.022.238 | 0,00 ₺ | Var | ||
|
|
Welding shoe 13/16 mm | 284 | 1832.022.319 | 0,00 ₺ | Var | ||
|
|

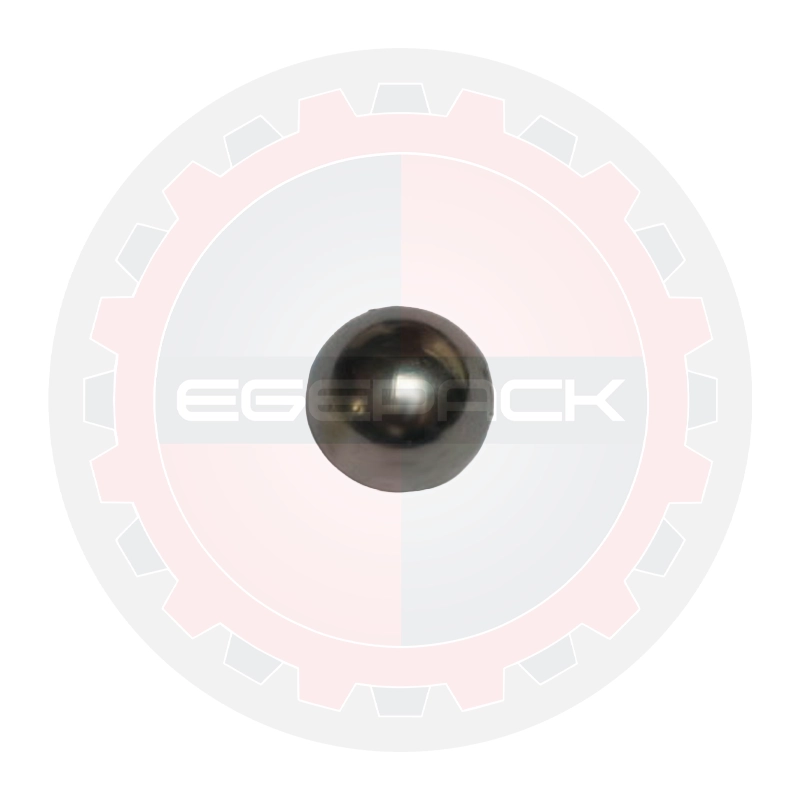

Ball | 289 | 1925.010.502 | 0,00 ₺ | Var | ||
|
|
Swivel bearing 13/16 mm | 283 | 1832.022.317 | 0,00 ₺ | Var | ||
|
|

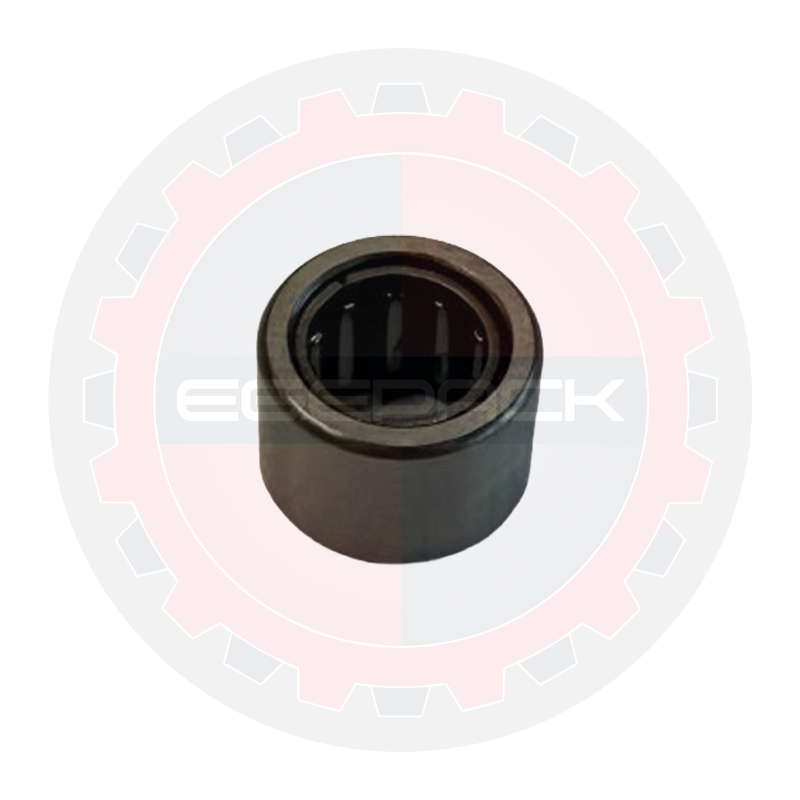

Needle bearing | 282 | 1933.210.120 | 0,00 ₺ | Var | ||
|
|
Knife 13/16 mm | 285 | 1821.209.049 | 0,00 ₺ | Var | ||
|
|
Compression spring | 287 | 1821.010.141 | 0,00 ₺ | Var | ||
|
|
Cylinder pin | 193 | 1921.304.281 | 0,00 ₺ | Var |
